Operating elements for crane operation
9.1 Overview of the operating elements
9 - 12 3 302 819 en Operating manual
GMK3060
13.12.2018

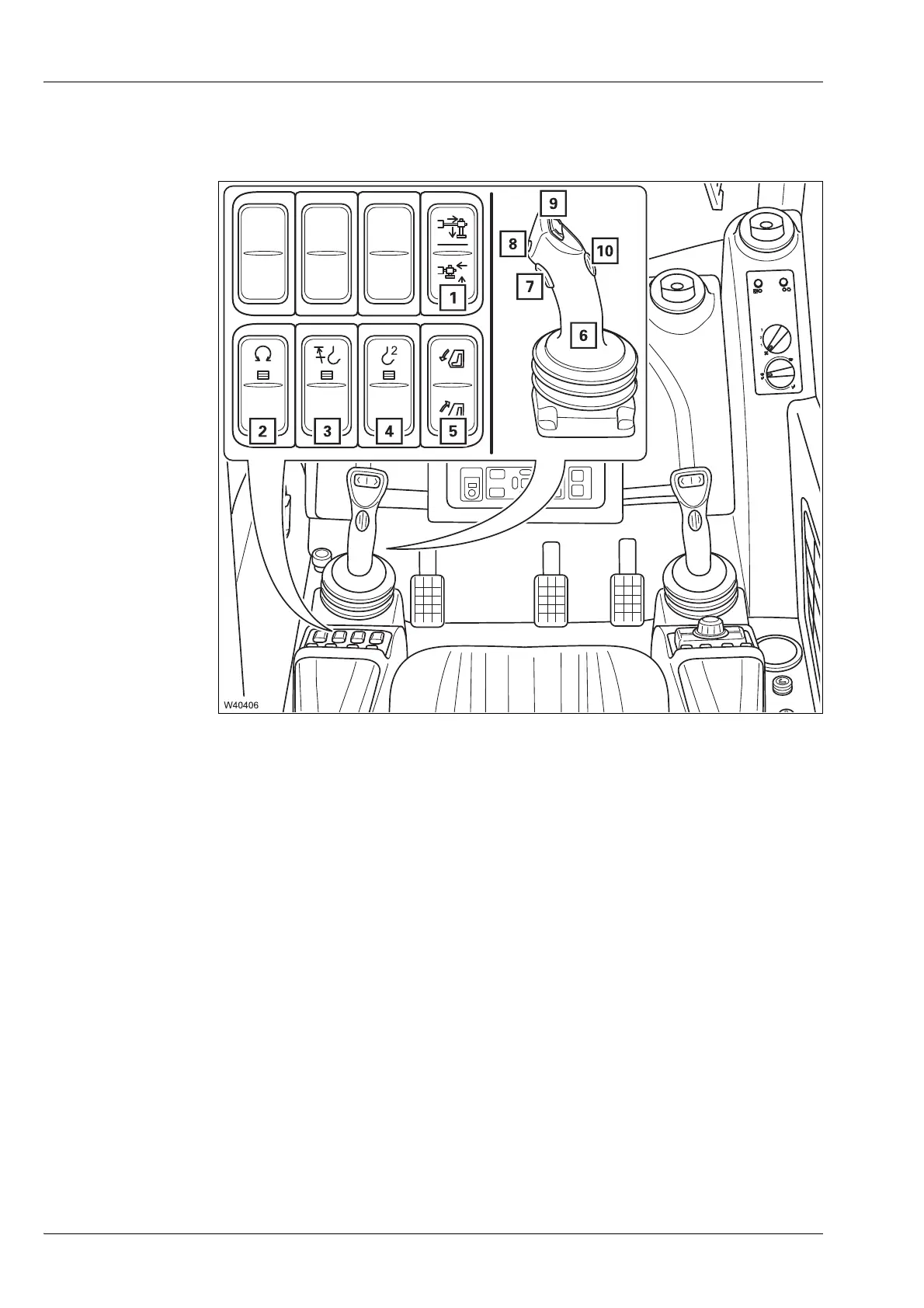

9.1.3 Control panels
Left
1 Moving the outrigger à p. 9 - 100
2 Slewing gear on/off
à p. 9 - 112
3 Overriding the lifting limit switch
Override slewing gear shutdown
à p. 9 - 109
à p. 9 - 109
4 Auxiliary hoist
1)
on/off à p. 11 - 85
5 Inclining the crane cab
à p. 9 - 122
6 Left-hand control lever (configuration depends on
version)
à p. 9 - 14
7 Dead man's switch
à p. 9 - 92
8 Slewing gear freewheel
à p. 9 - 112
9 Depending on which function is switched on, button for:
– Derricking gear high-speed mode
– Telescoping mechanism high-speed mode
– Steering with separate steering
à p. 9 - 115
à p. 9 - 117
à p. 9 - 160
10 Auxiliary hoist slewing indicator
à p. 11 - 86
1)
Additional equipment
