Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 117
GMK3060
13.12.2018

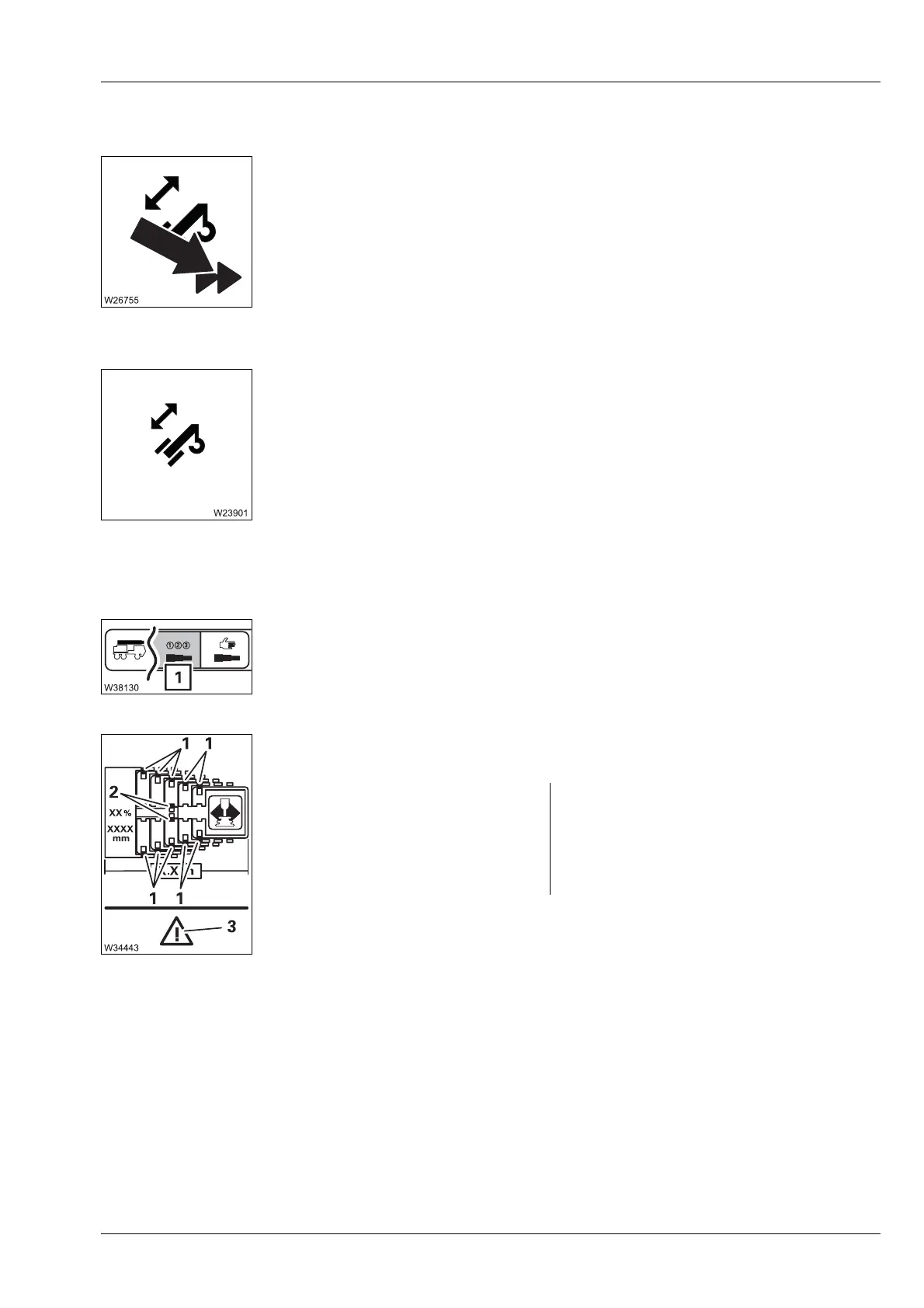

CCS display
Telescoping mechanism high-speed mode inspection
Power units display
Telescoping semi-
automation menu
Opening the menu
Telescope diagram display
Current relation of the telescopic sections to each other – section of top view.
s
– Lights up: High-speed mode on
– Gone out: High-speed mode off
à p. 11 - 119
– Green: Telescoping mechanism on
– Red: Telescoping mechanism off
– Opening: Select symbol (1) and confirm – menu is opened
Locking pin Display 1 and 2
1 On the telescopic section – Green: Locked
2 On the telescoping cylinder – Yellow: Intermediate position
3 Error – Red: Unlocked
à p. 11 - 108
