Crane operation
11.5 Crane operation with main boom
11 - 108 3 302 819 en Operating manual
GMK3060
13.12.2018
Current telescoping

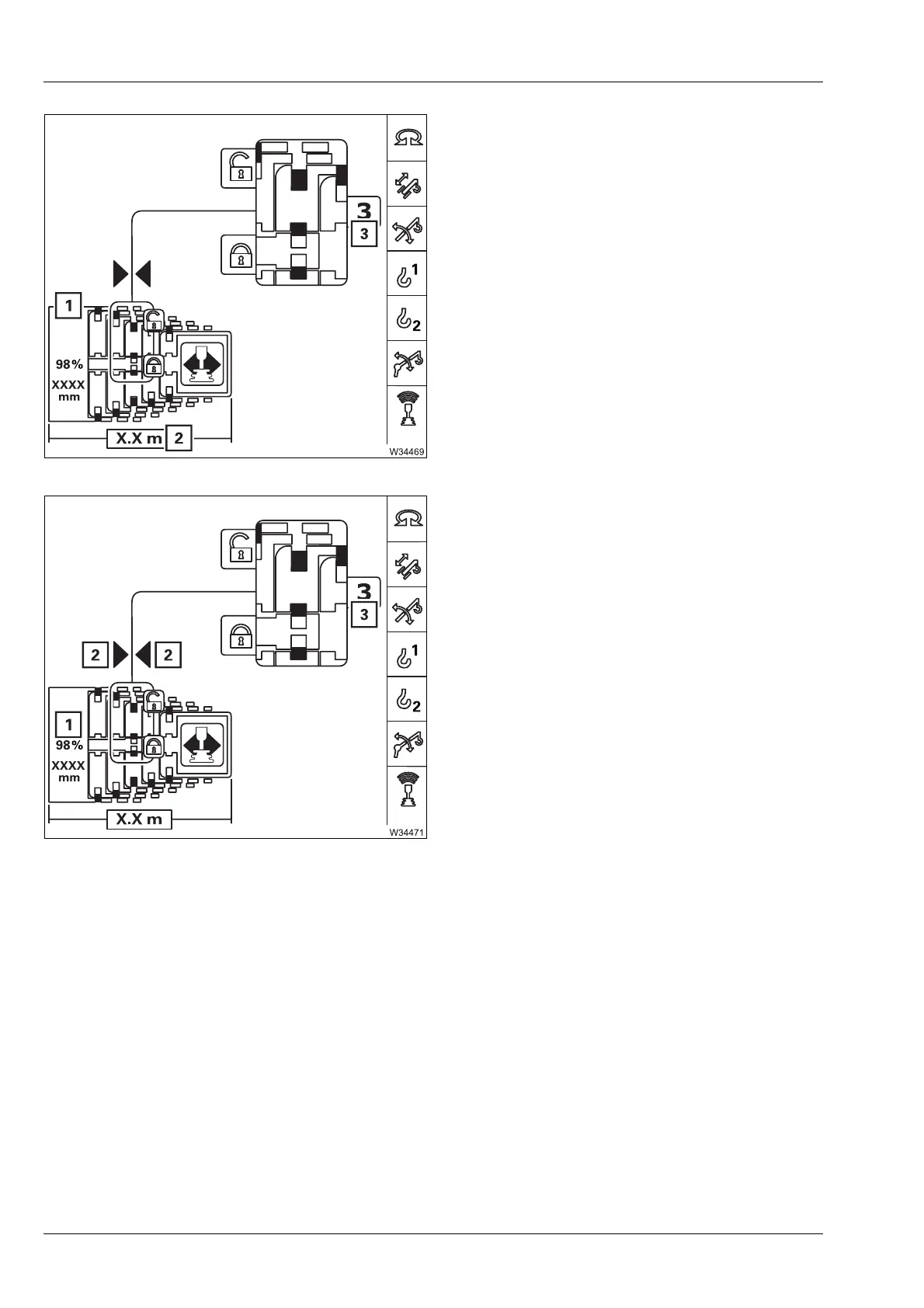

The display (1) shows how far the telescoping
cylinder is extended, for example, 98%.
The display (2) shows the current main boom
length.
The display (3) shows the corresponding tele-
scopic section, e.g. 3 for telescopic section
III.
Position of the telescoping cylinder
The display (1) shows how far the telescoping
cylinder is extended, for example, 98%.
If the telescoping cylinder is near a locking point:
– The display (3) shows the corresponding tele-
scopic section, e.g. 3 for telescopic section
III.
– The display (2) shows one or two arrows,
depending on the distance to the locking point.
