Driving mode
5.3 Driving and parking the truck crane
5 - 52 3 302 819 en Operating manual
GMK3060
13.12.2018
5.3.8 Parking the truck crane

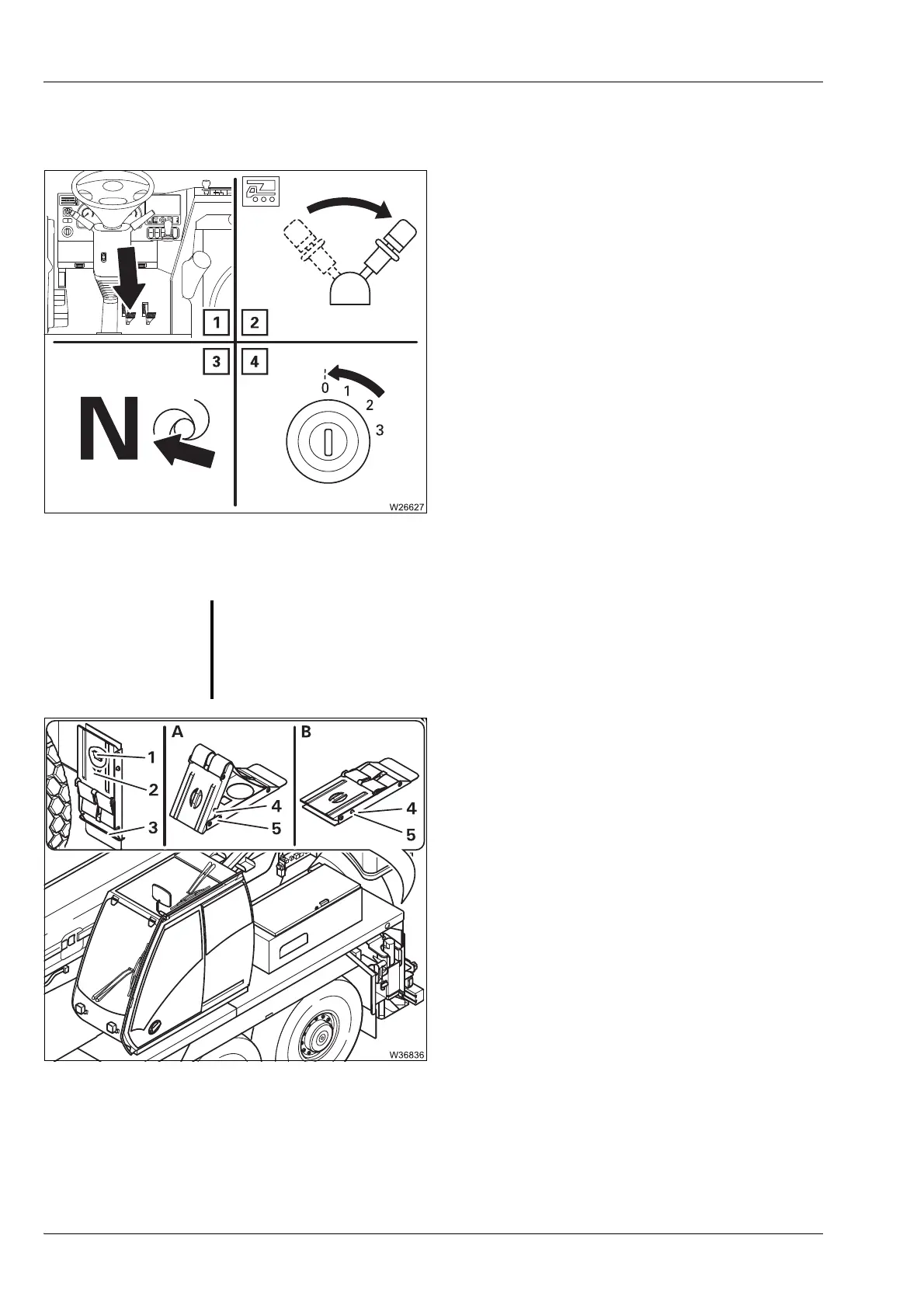

To switch the truck crane off, you must:
Securing against
rolling away
The number of wheel chocks supplied varies according to country.
Transport at the rear of the carrier
• Push the chock (2) behind the bracket (3) and
hang it on the holder (1).
(A) – Folding out
• Push the locking bar (4) through the bore (5).
The chock unfolds by spring force.
(B) – Folding up
• Push the chock together until the locking bar (4)
engages in the bore (5).
1. Stop the truck crane
2. Apply the parking brake
3. Switch to neutral gear;
à p. 5 - 26
4. Switch off the engine;
à p. 4 - 19
G
Risk of accidents by truck crane moving unintentionally!
On uphill and downhill gradients secure the truck crane using wheel chocks in
addition to the parking brake.
