Operating elements for driving
3.2 Brief description of the operating elements
3 - 50 3 302 819 en Operating manual
GMK3060
13.12.2018
3.2.8 Crane control CCS
The GMK3060 truck crane is equipped with the CCS electronic crane control sys-
tem (Crane Control System). CCS includes a control unit in the driver's cab and
several control units (MWSCM and MWCCM) distributed over the superstructure
and carrier.

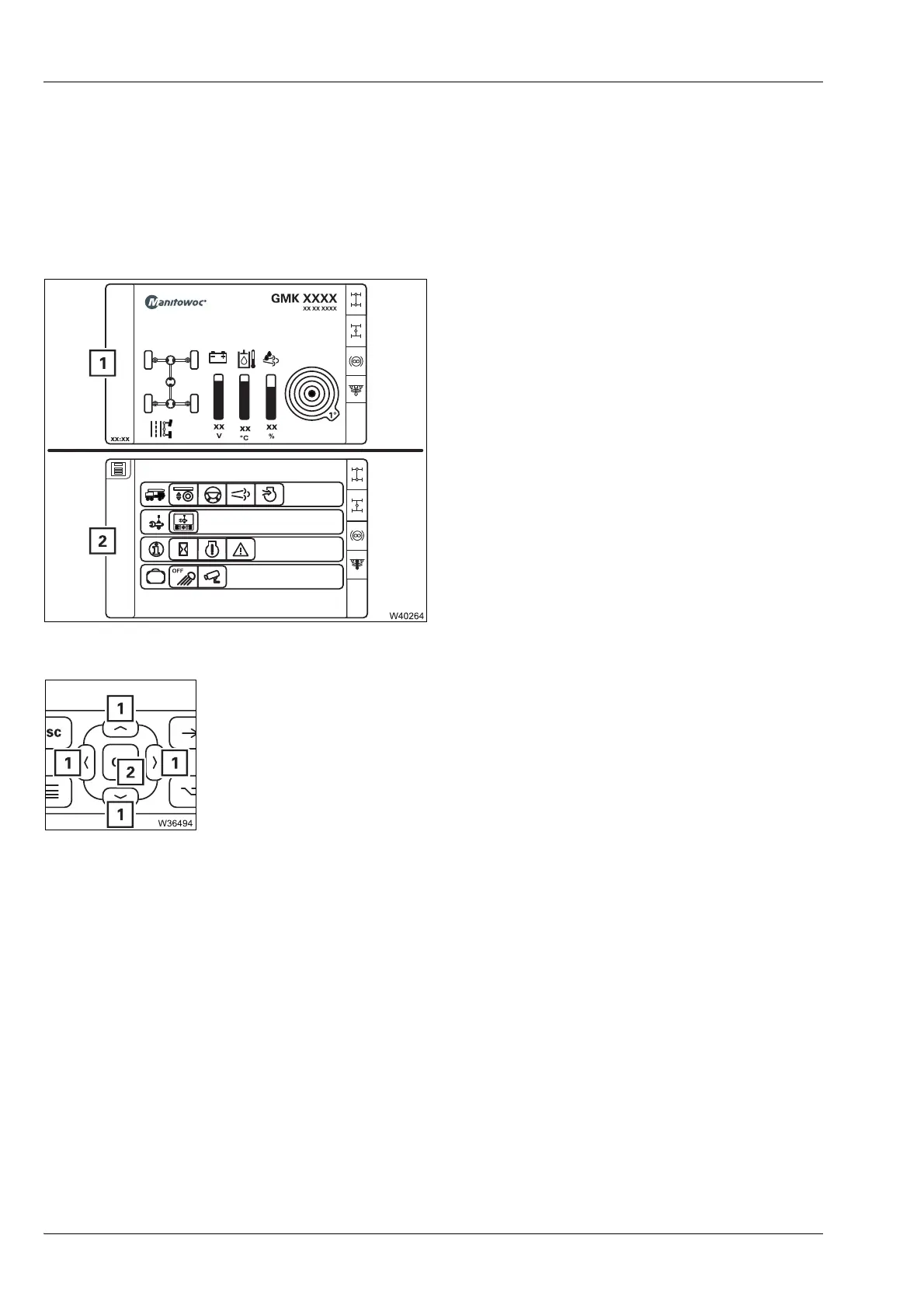

CCS display
The start menu appears after switching on the
ignition (1).
After pressing a button on the CCS control panel,
the overview of the menu groups (2) appears.
A symbol is selected with the arrow buttons in
order to call up a menu. The selected symbol is
shown in red.
The OK button on the control panel is pressed in
order to open a menu.
Menu control
Buttons for selecting, activating and confirming areas on the CCS display.
– Select
– Activate / confirm
The function of the buttons is different depending on the area.
There are three areas, described in more detail in chapter Operating elements for
crane operation.
à In the Menu area, p. 9 - 94
à In the Input area, p. 9 - 94
à In the Operating area, p. 9 - 95
1Press
– The selected range is marked.
2Press
– The marked range is activated.
– The entry is confirmed.
