Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 95
GMK3060
13.12.2018
In the Operating area

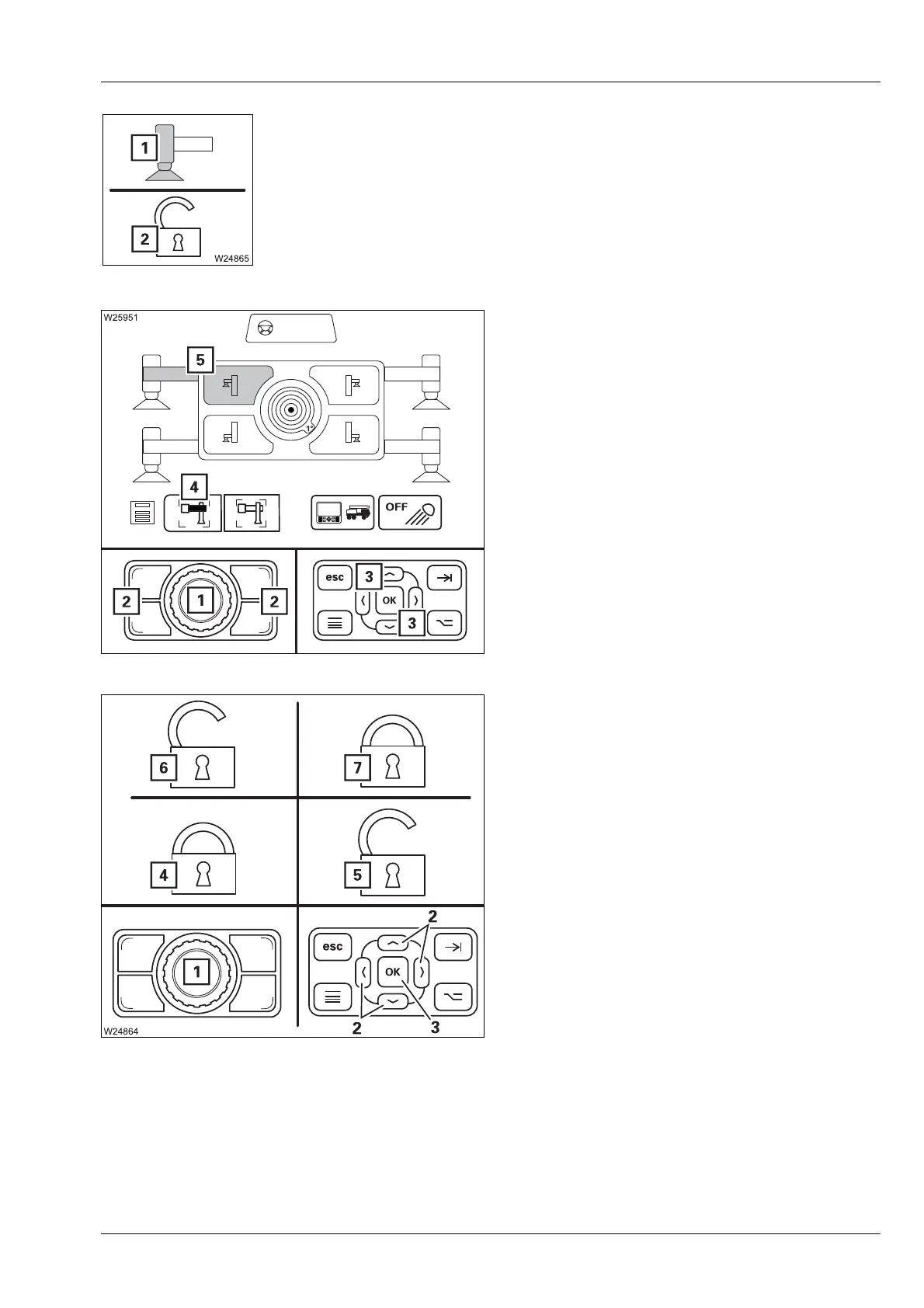

– For carrying out movements during rigging.
The required element is marked, e.g. outrigger cylinder (1).
– For switching on/off and switching
A symbol for a status is marked, e.g. symbol (2).
Executing a movement
– Select function
– Move function
Switching on/off and switching
– Selecting status
– Switch on state
s
3 Press or 1Slewing
– The marked function (4) or (5) is selected.
2 Press
– The selected function is carried out.
2 Press or 1Slewing
– The marked state (4) or (6) is selected.
1Press or 3Press
– The selected state (5) or (7) is established.
