Malfunctions during crane operation
14.3 Warning and error messages
14 - 8 3 302 819 en Operating manual
GMK3060
13.12.2018
14.3.2 Error messages on the CCS display
•
Stop all crane movements and bring both control levers into the initial position.

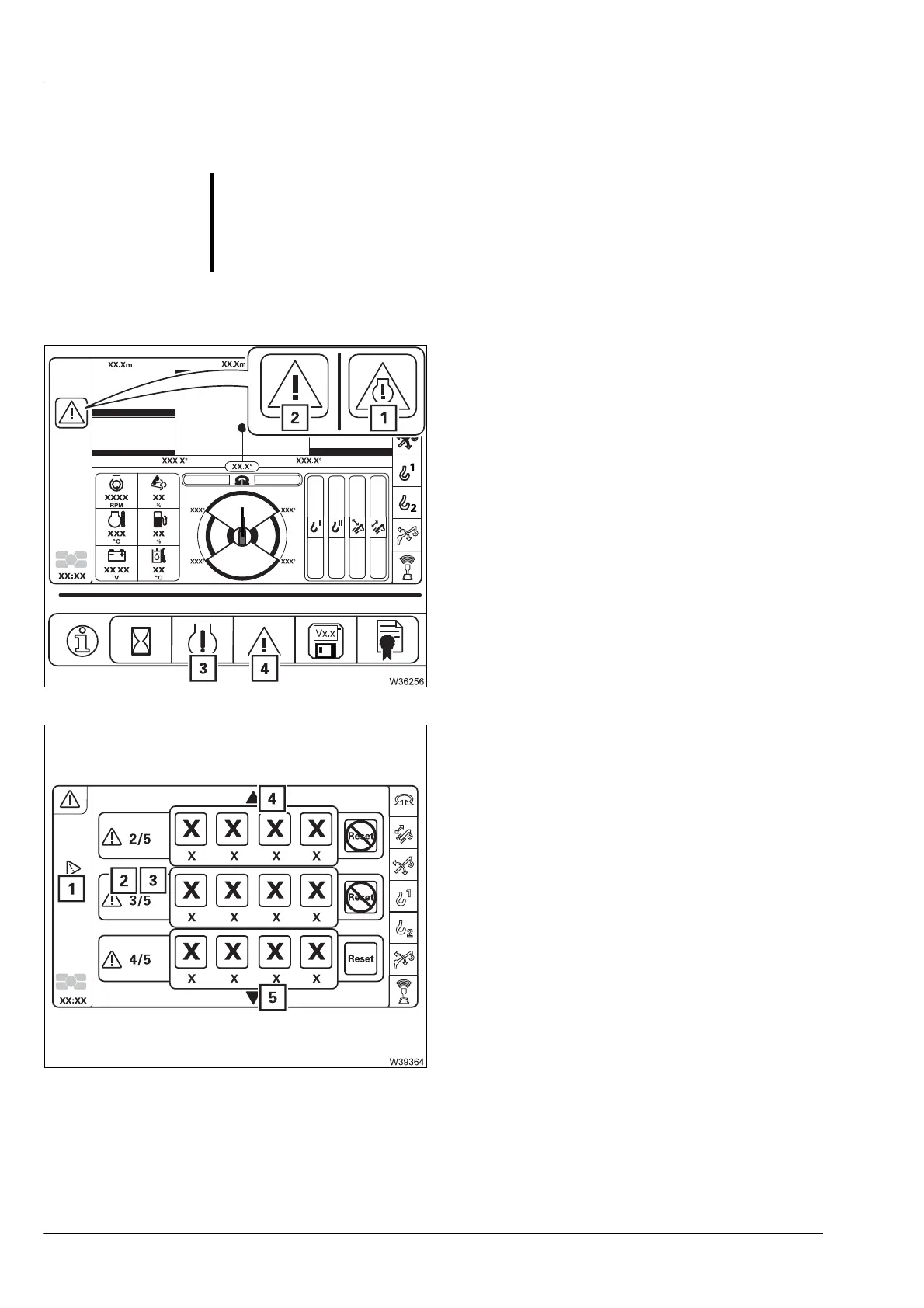

The symbol (1) or (2) flashes when the CCS has
detected an error. The symbols flash alternately
when both error types are present.
(1) – Engine error
• Switch off the engine immediately.
• Open the Engine/transmission error menu (3).
For the subsequent procedure;
à p. 8 - 16.
(2) – Crane operation error
The buzzer tone sounds once.
• Open the Crane operation error menu (4).
Display of error / total errors
Display (3) shows the error total, and display (2)
shows which error is displayed.
3/5, for example, means:
– Error 3 is shown
– A total of 5 errors are pending.
Displaying errors
The rotating symbol (1) indicates that further
unacknowledged errors are present.
• Select and confirm the symbol (4) or (5) to show
any additional errors.
G
Risk of accidents!
Immediately stop operating the crane if an error message is displayed!
The crane control system may only be repaired by properly qualified personnel.
4 Previous error
5 Next error
