Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 112 3 302 819 en Operating manual
GMK3060
13.12.2018

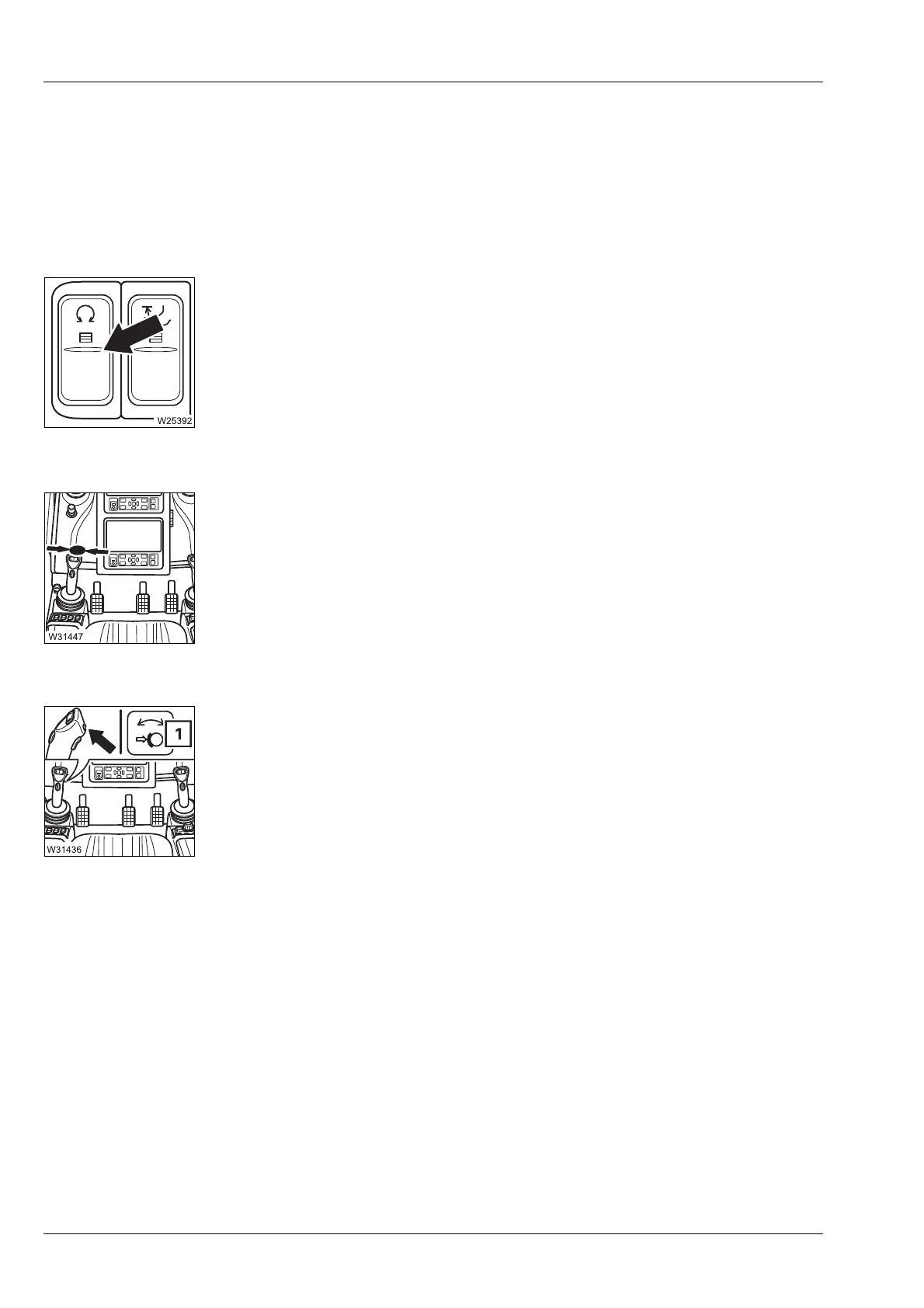

9.2.16 Slewing gear
à Slewing gear, p. 11 - 121.
Control panels
Slewing gear on/off
There is a lamp in the button.
Left control lever
Slewing gear freewheel
At the slewing gear brake – Control lever function is switched on
– Press once: – Lamp bright – slewing gear on
Slewing gear brake released
– Lamp dim – slewing gear off
Slewing gear brake applied
à p. 11 - 122
– To the left: Slewing to the left
– To the right: Slewing to the right
à p. 11 - 123
– Switch on: Move control lever to zero position and press button –
slewing gear brake released, lamp (1) goes out
– Switch off: Release switch – slewing gear brake applied, lamp (1)
lights up
à p. 11 - 125
