Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 113
GMK3060
13.12.2018

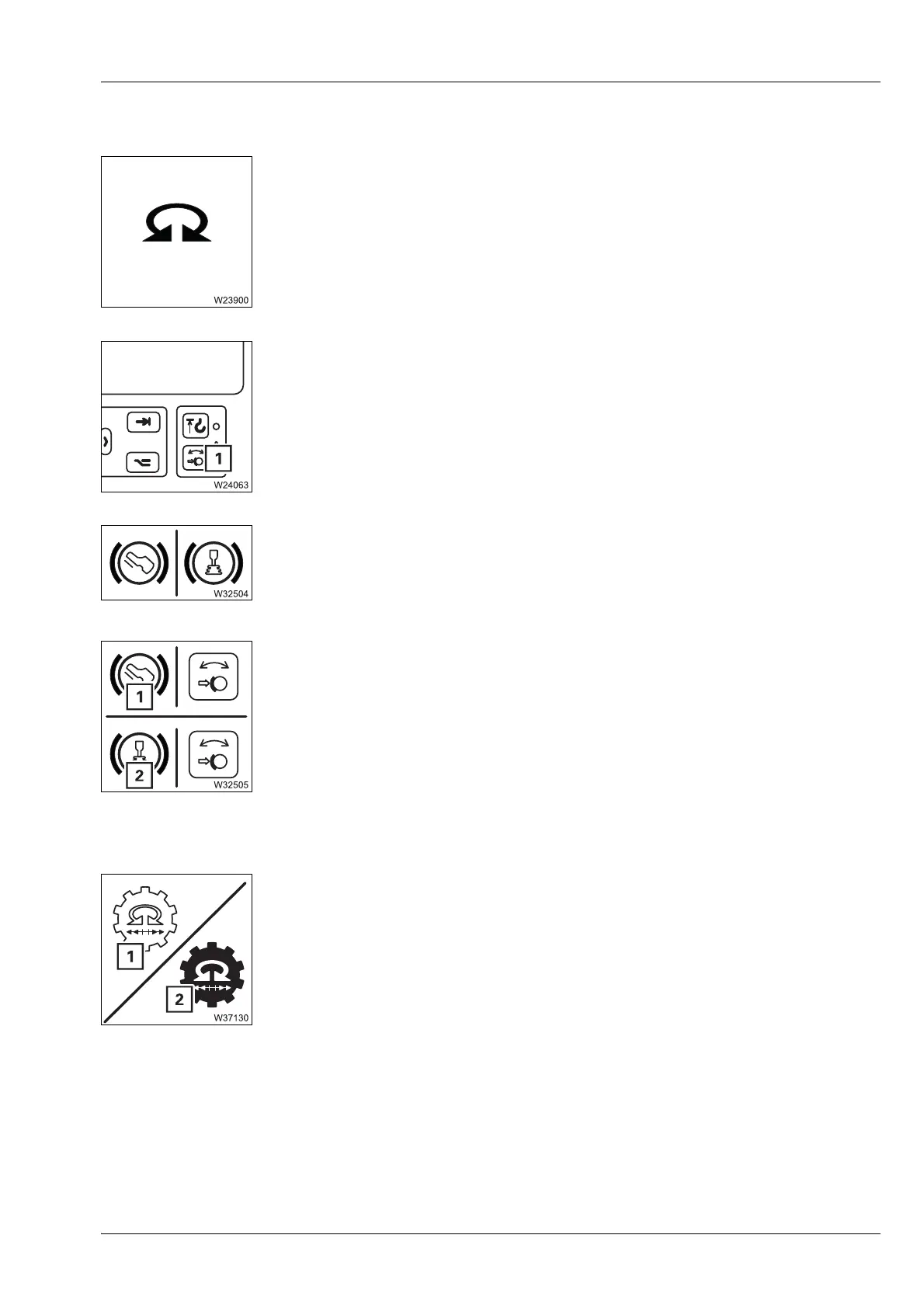

CCS display
Power units display
Slewing gear brake engaged/released
Switching over the slewing gear brake function
Slewing gear is switched on
Slewing gear brake function display
Slewing speed reduction on/off
– Green: Slewing gear on
– Red: Slewing gear off
1 Lights up: Slewing gear brake applied
1 Gone out: Slewing gear brake released
à p. 11 - 122
– Switch over: Select symbol and confirm – the function is displayed
1 Brake pedal function
Brake slewing movement – actuate Slewing gear brake pedal
2 Control lever function
Brake slewing movement – control lever in the zero position
Slewing gear brake pedal without function
à p. 11 - 121
– Switch off: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch on: Select symbol (2) and confirm – Symbol (1) is displayed
à Slewing speed – Switching the reduction on and off, p. 11 - 127
