12.7 Rigging work on the main boom
Operating manual 3 302 819 en 12 - 89
GMK3060
13.12.2018
12.7.4 Possible reeving methods on the main boom
Possible reevings on lattice extensions and the auxiliary single-sheave boom top;
à Lattice extension operating manual.
H
The maximum lifting capacity is specified in the supplied Lifting capacity table.
With 5 head
sheaves
If 6 head sheaves are present;
à p. 12 - 92.
5 sheave hook block
s

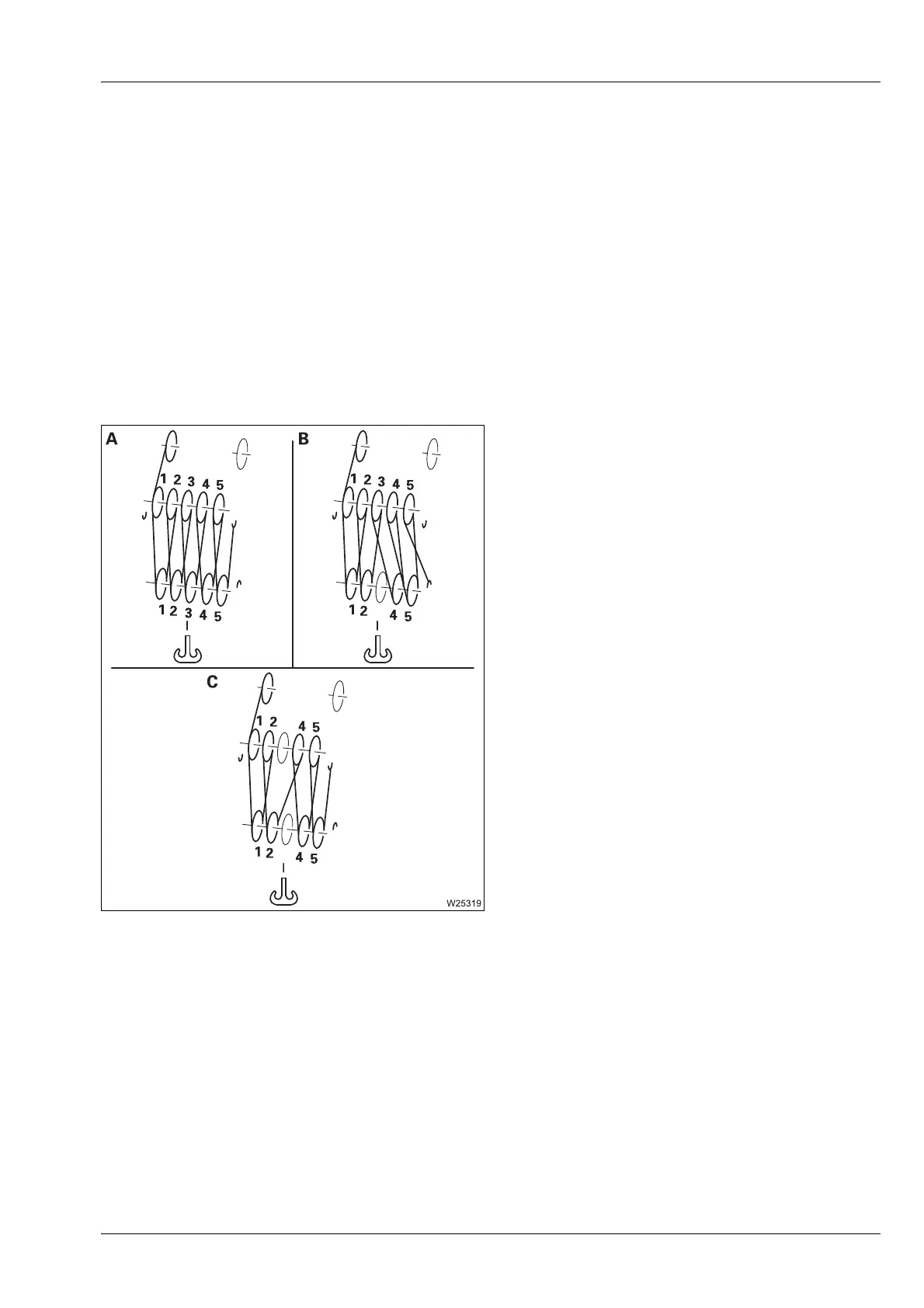

Reeving
A 10-fall
A 9-fall
B 8-fall
