Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 118 3 302 819 en Operating manual
GMK3060
13.12.2018

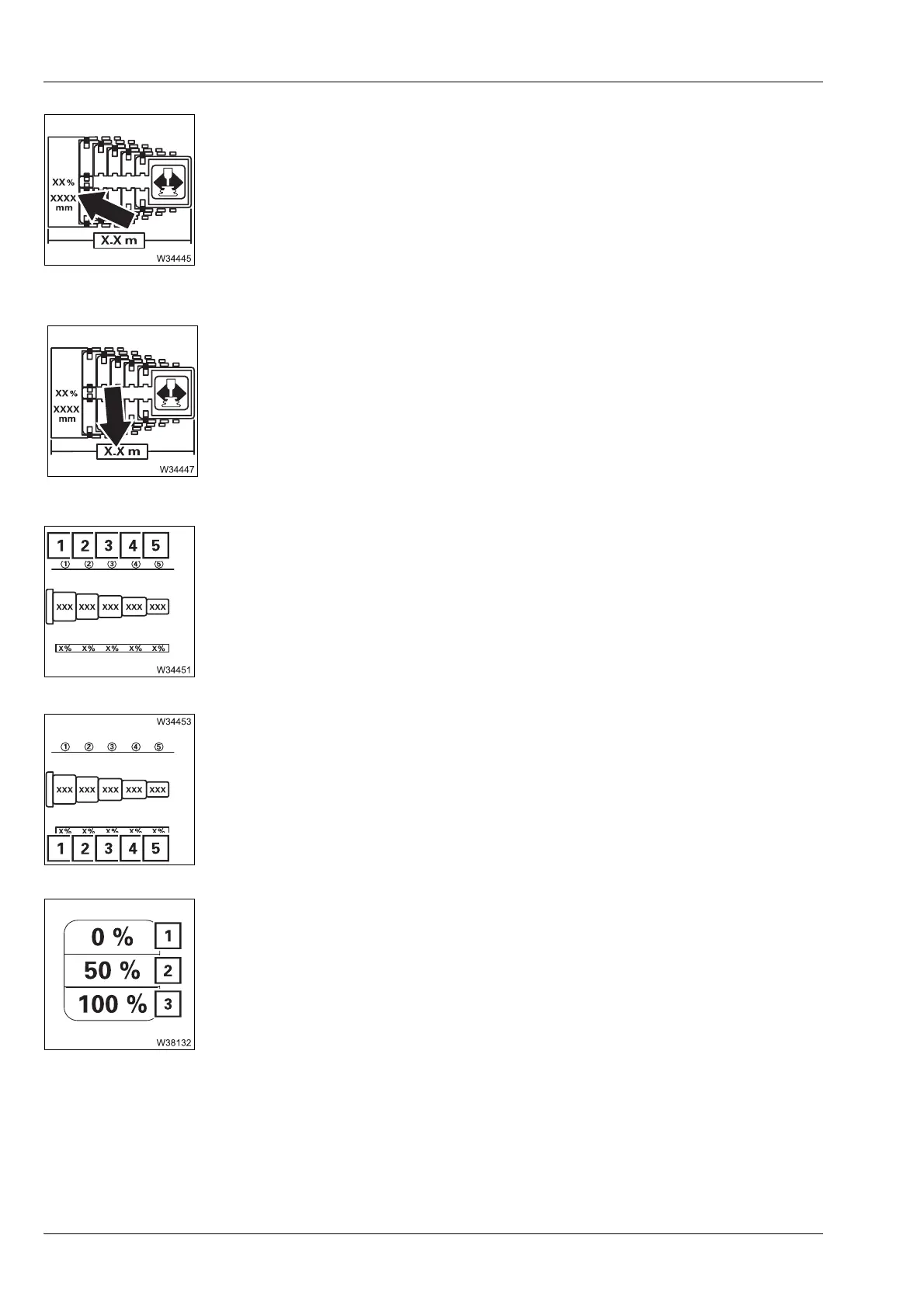

Telescoping cylinder length display
Main boom length display
Telescopic sections display
Current telescoping status display
Extended length of the telescopic sections in percentage
Pre-selection for all telescopic sections
– Display: Current extended length of the telescoping cylinder
– Unit of measure-
ment:
Displayed in % (per cent) and, depending on setting,
mm (millimetres) or ft (feet)
à p. 11 - 116
– Display: Current extended length of the main boom
– Unit of measure-
ment:
Displayed depending on setting, mm (millimetres) or
ft (feet)
à p. 11 - 116
1 - 5 Display of telescopic sections 1 to 5
1 - 5 Display of telescopic sections 1 to 5
1 Pre-selection telescoping 0%
2 Telescope status 50% pre-selection – 47% to 55% depending on telescopic
section
3 Pre-selection telescoping 100%
Overview of the fixed lengths;
à p. 14 - 39
