Crane operation
11.5 Crane operation with main boom
11 - 116 3 302 819 en Operating manual
GMK3060
13.12.2018
Locking the tele-
scopic section for
on-road driving
Once you have retracted the main boom for on-road driving, you must lock the
telescoping cylinder in telescopic section
I so that the axle loads are in accord-
ance with the values in the Driving mode table;
à Driving modes, p. 6 - 1.
If telescopic section
I was the last telescopic section to be retracted, you can
select locking directly.
If another telescopic section was retracted last, you must do the following before
selecting locking:
– Unlock the telescoping cylinder;
à p. 11 - 109,
– Move the telescoping cylinder into telescopic section
I; à p. 11 - 111 and
– lock the telescoping cylinder;
à p. 11 - 112.
Telescoping with
semi-automation
When telescoping with semi-automation, you enter the desired fixed lengths and
then move the control lever in the required direction. Switching between the tele-
scopic sections is carried out automatically by CCS.
H
If the desired telescoping status is not a fixed length, you can first telescope to
the next closest fixed length with the semi-automation and then telescope further
to the desired length manually.
• Switch on the telescoping mechanism; à p. 11 - 95.

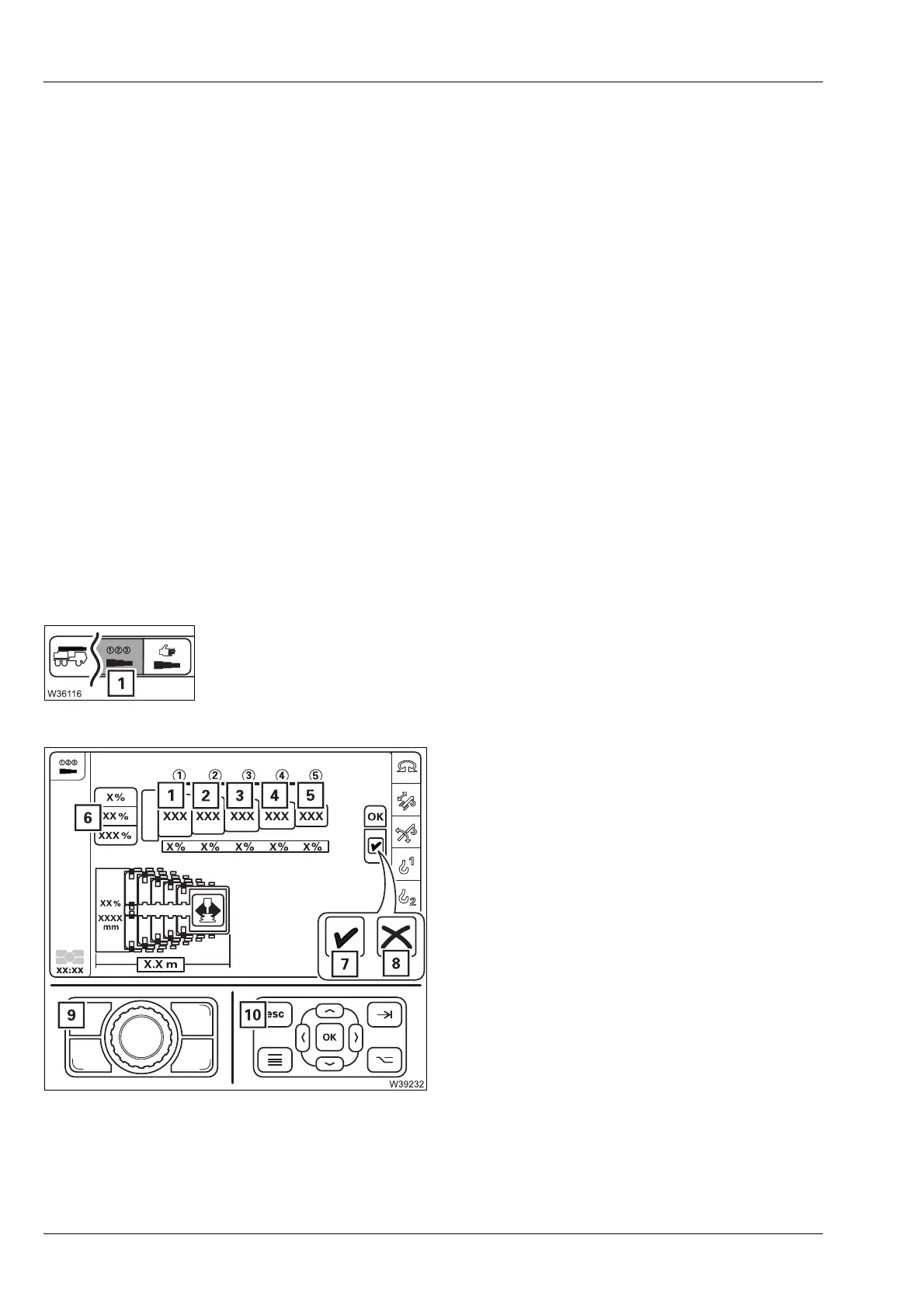

• Open the Telescoping semi-automation menu (1).
Entering the telescoping status
You can cancel the input at any time –
1 x button (9) or (10).
Entry for all telescopic sections
• Select and confirm the desired value (6).
Entry for individual telescopic sections
• Select and confirm the desired value (1) to (5).
– Display symbol (8) – telescoping not
permitted – enter a new value.
– Display symbol (7) – telescoping permitted –
the entry can be confirmed.
