Crane operation
11.5 Crane operation with main boom
Operating manual 3 302 819 en 11 - 117
GMK3060
13.12.2018

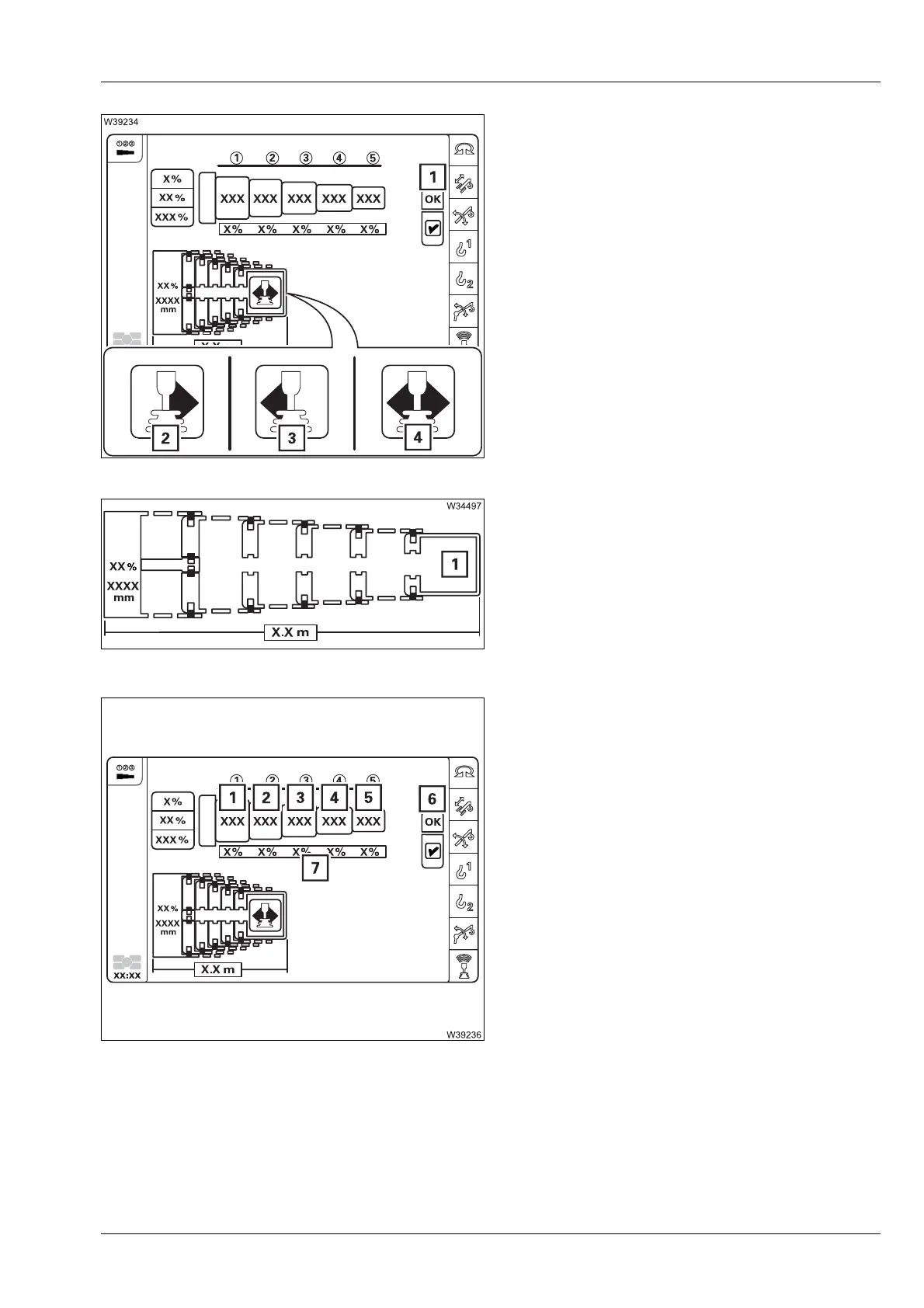

Confirming the entry
• Select and confirm the symbol (1).
Telescoping
• Move the control lever for the displayed tele-
scoping direction.
End telescoping semi-automation
The teleautomation will stop when the entered tel-
escope status is reached – symbol (1) go out.
• Move the control lever to its initial position –
teleautomation off.
Cancel telescoping semi-automation
• Release the control lever.
If the telescopic sections are at a fixed length, the
current telescoping can be entered as the tele-
scoping destination.
The display (7) shows the current telescoping:
• Enter the current telescoping (1) to (5) and
confirm the selection with (6).
s
2 Extend
3 Retract
4 Display in the case of return runs (without a
telescopic section)
– Red: Unlocked
–Green: Fixed length and locked
