Crane operation
11.5 Crane operation with main boom
Operating manual 3 302 819 en 11 - 111
GMK3060
13.12.2018
Extending/
retracting the
telescoping
cylinder
Prerequisites
– Telescoping mechanism on – symbol (3) green
– Telescopic section locked – symbol (1) green
– Telescoping cylinder unlocked – symbol (2) red
Extending/retracting
• Move the control lever in the corresponding
telescoping direction:
The telescoping cylinder (2) extends/retracts.

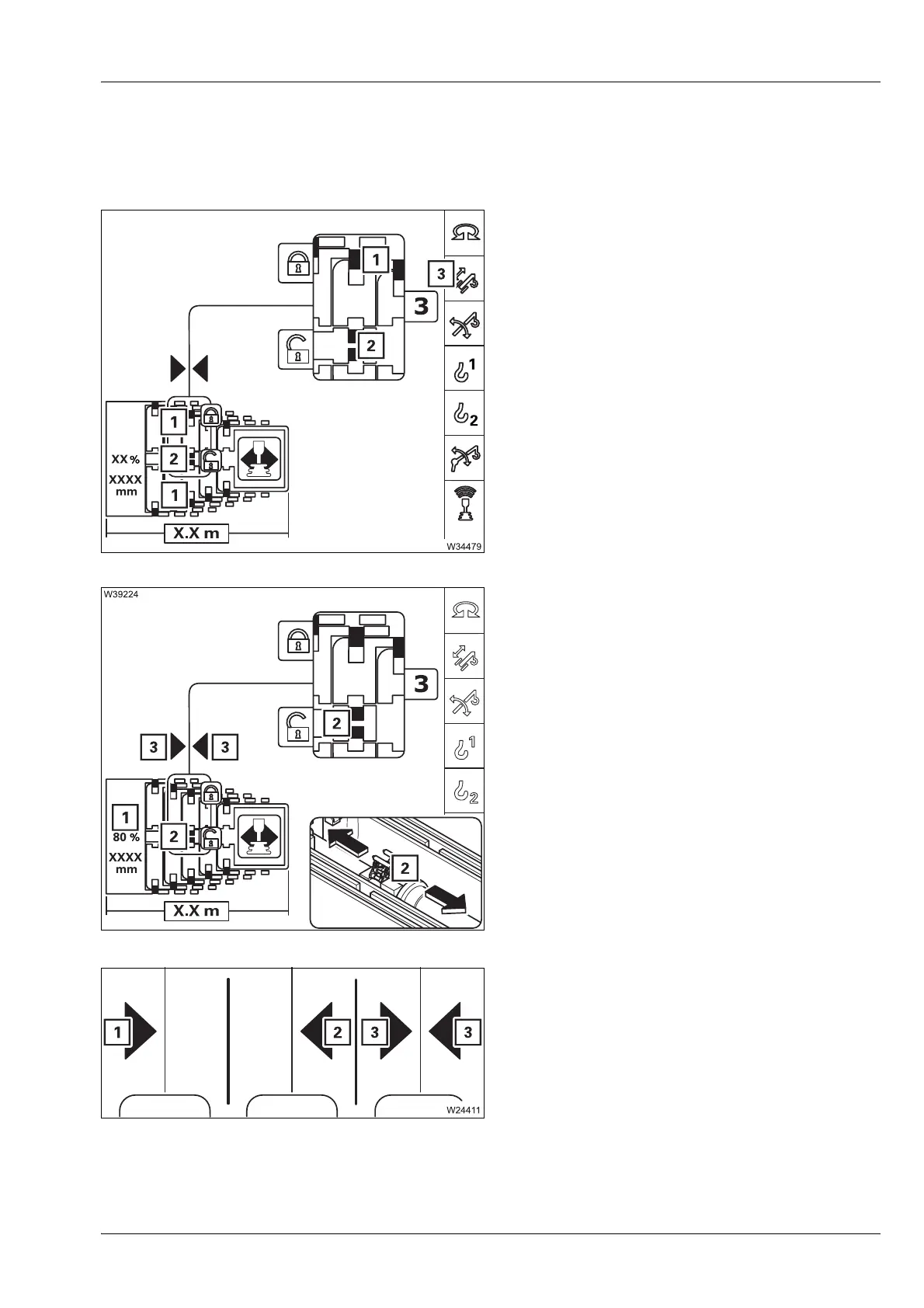

The display (1) shows the currently extended
length, for example, 80%.
Near a locking point, the symbols (3) show:
– The direction of travel to the locking point:
s
– Extend: Extend
– Retract: Retract
1 Extending
2 Retracting
3 At the locking point
