Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
9 - 160 3 302 819 en Operating manual
GMK3060
13.12.2018

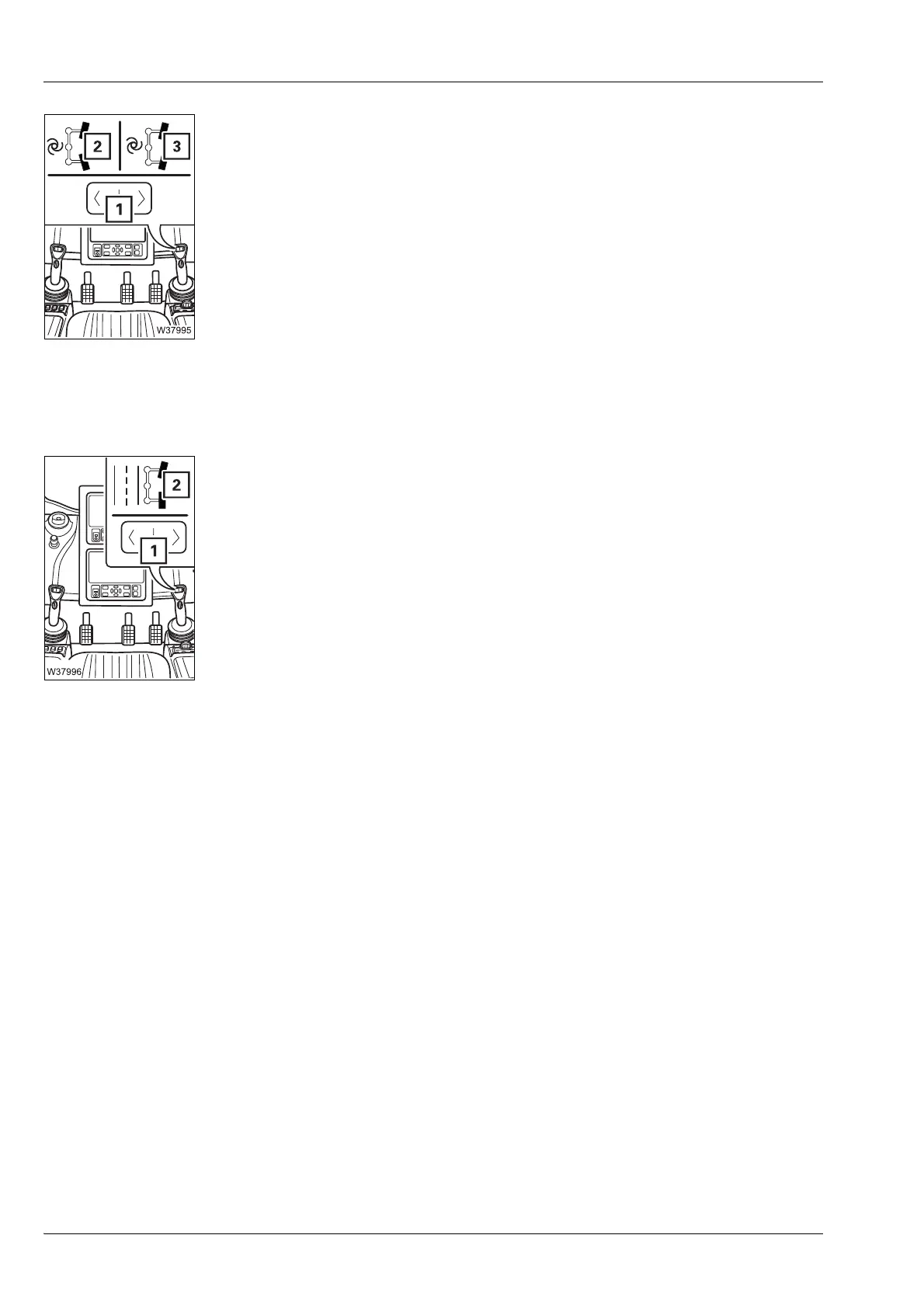

Steering with separate steering – automatic driving around corners/crab
travel mode
The symbol (2) or (3) is displayed.
Press and hold button (1)
Steering in normal steering mode
The symbol (2) is displayed.
1st axle line with the button (1).
– To the left: 1st axle line – turn to the left
2nd and 3rd axle lines – the matching steering angle for
steering mode
– To the right: 1st axle line – turn to the right
2nd and 3rd axle lines – the matching steering angle for
steering mode
à p. 13 - 21
– To the left: 1st axle line – turn to the left
2nd and 3rd axle lines – the matching steering angle for
the corner
– To the right: 1st axle line – turn to the right
2nd and 3rd axle lines – the matching steering angle for
the corner
à p. 13 - 23
