Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
Operating manual 3 302 819 en 9 - 159
GMK3060
13.12.2018

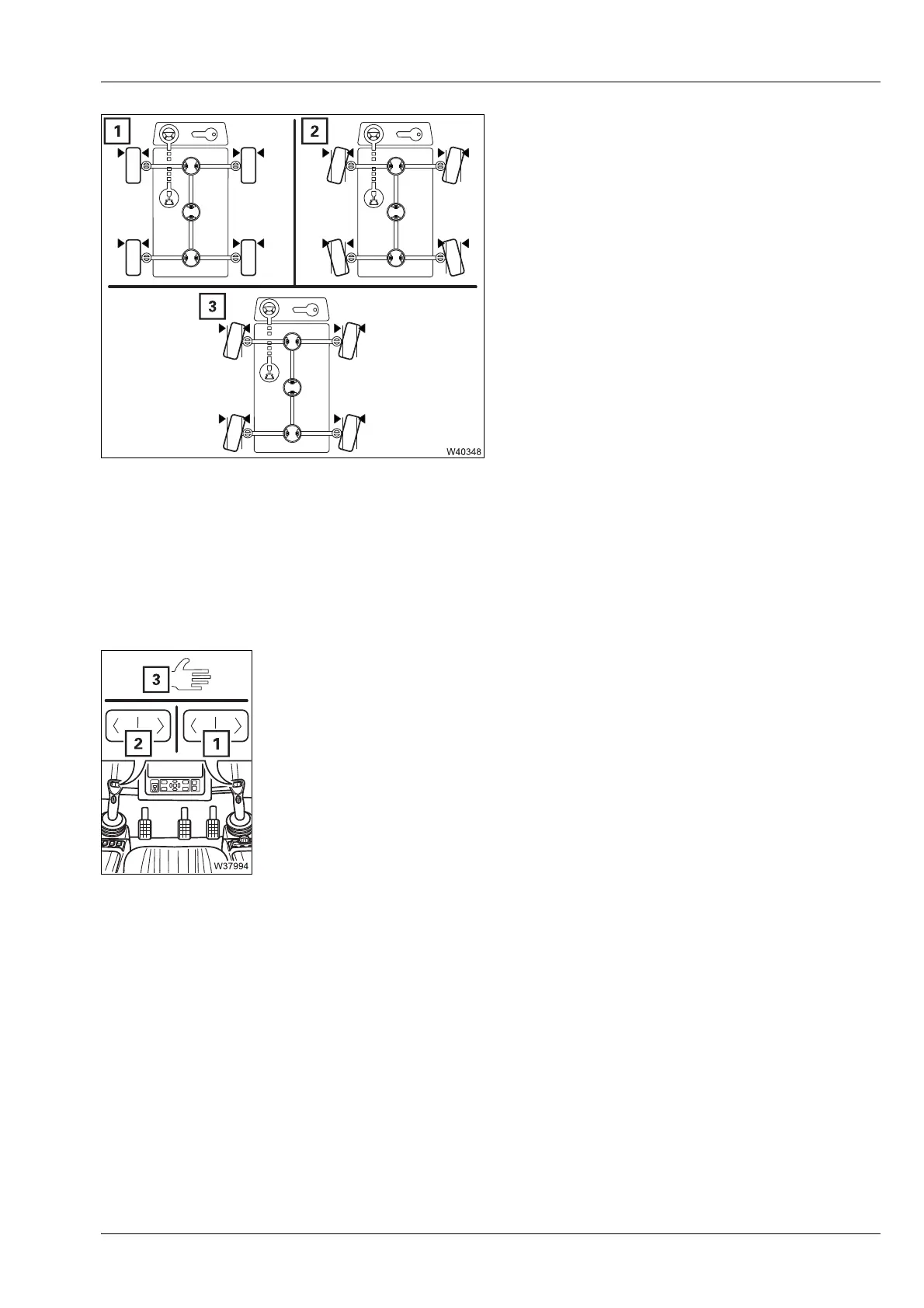

Current wheel position display
Control panels
H
The information in this section is based on the steering direction setting Steering
wheel.
Steering with separate steering – manual
The symbol (3) is displayed.
1st axle line with the button (1).
Press and hold button (2)
s
1 Straight ahead
2 Driving around corners
3 Crab travel mode
à p. 13 - 19
– To the left: 2nd and 3rd axle lines – turn to the left
– To the right: 2nd and 3rd axle lines – turn to the right
à p. 13 - 22
