Driving with a rigged truck crane
13.5 Driving from the crane cab
13 - 22 3 302 819 en Operating manual
GMK3060
13.12.2018

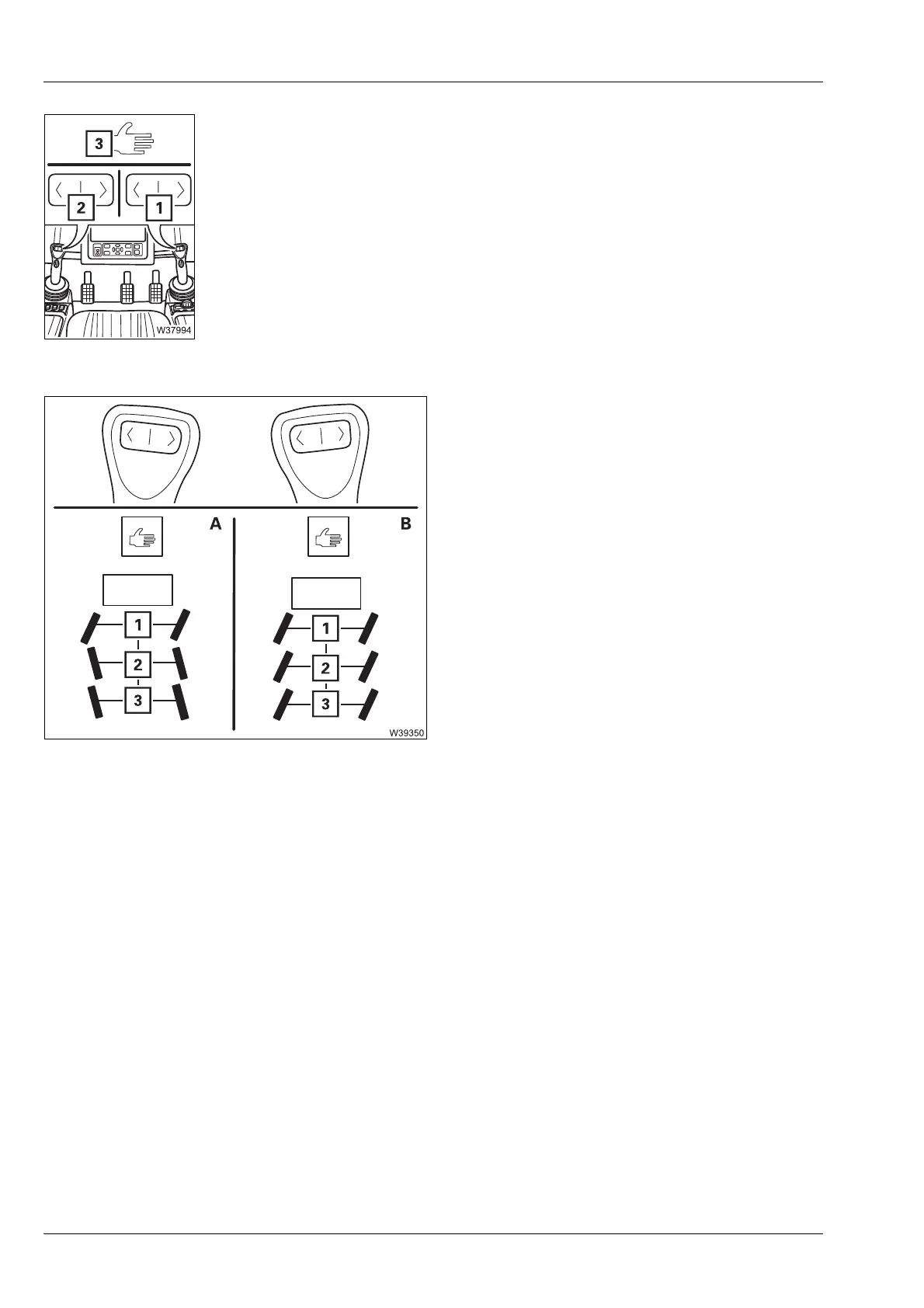

Steering with separate steering – manual
The symbol (3) is displayed.
• Steer the 1st axle line with the button (1).
• Steer the 2nd and 3rd axle lines with the button (2).
The axle lines are steered as long as you keep the button pressed or until an end
position is reached.
(A) – For driving around corners
• Steer the 2nd and 3rd axle lines opposite to the
1st axle line.
(B) – For crab travel mode
• Steer the 2nd and 3rd axle lines in the same
direction as the 1st axle line.
– To turn to the left:
• Press buttons (1), (2) to the left.
– To turn to the right:
• Press buttons (1), (2) to the right.
