Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 819 en 11 - 35
GMK3060
13.12.2018
Temperature on the display
The brightness is reduced automatically if the temperature at the display is
too high.

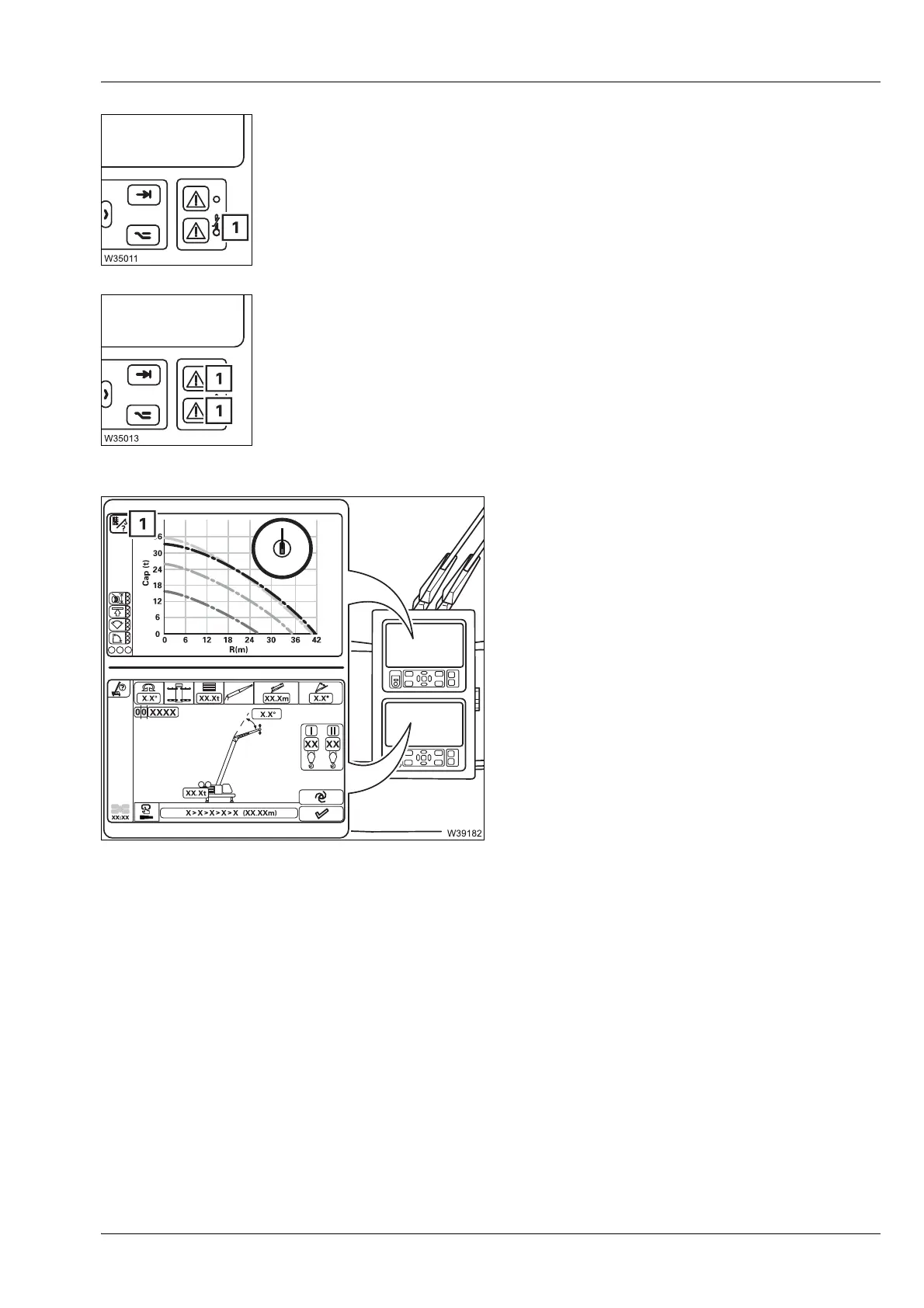

Do not cover the sensors (1) and keep them clean to avoid contamination that can
affect the brightness adjustment.
After completing the test program
–The lamps (1) light up.
– All power units are disabled.
The CCS display shows the last confirmed rigging
mode and the RCL display shows the correspond-
ing lifting capacity table.
The symbol (1) indicates that a rigging mode has
not been confirmed.
If the current rigging mode is displayed, then you
can confirm the rigging mode;
à p. 11 - 45.
If the current rigging mode is not displayed, then
you must enter the current rigging mode;
à p. 11 - 36.
