Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 99
GMK3060
13.12.2018

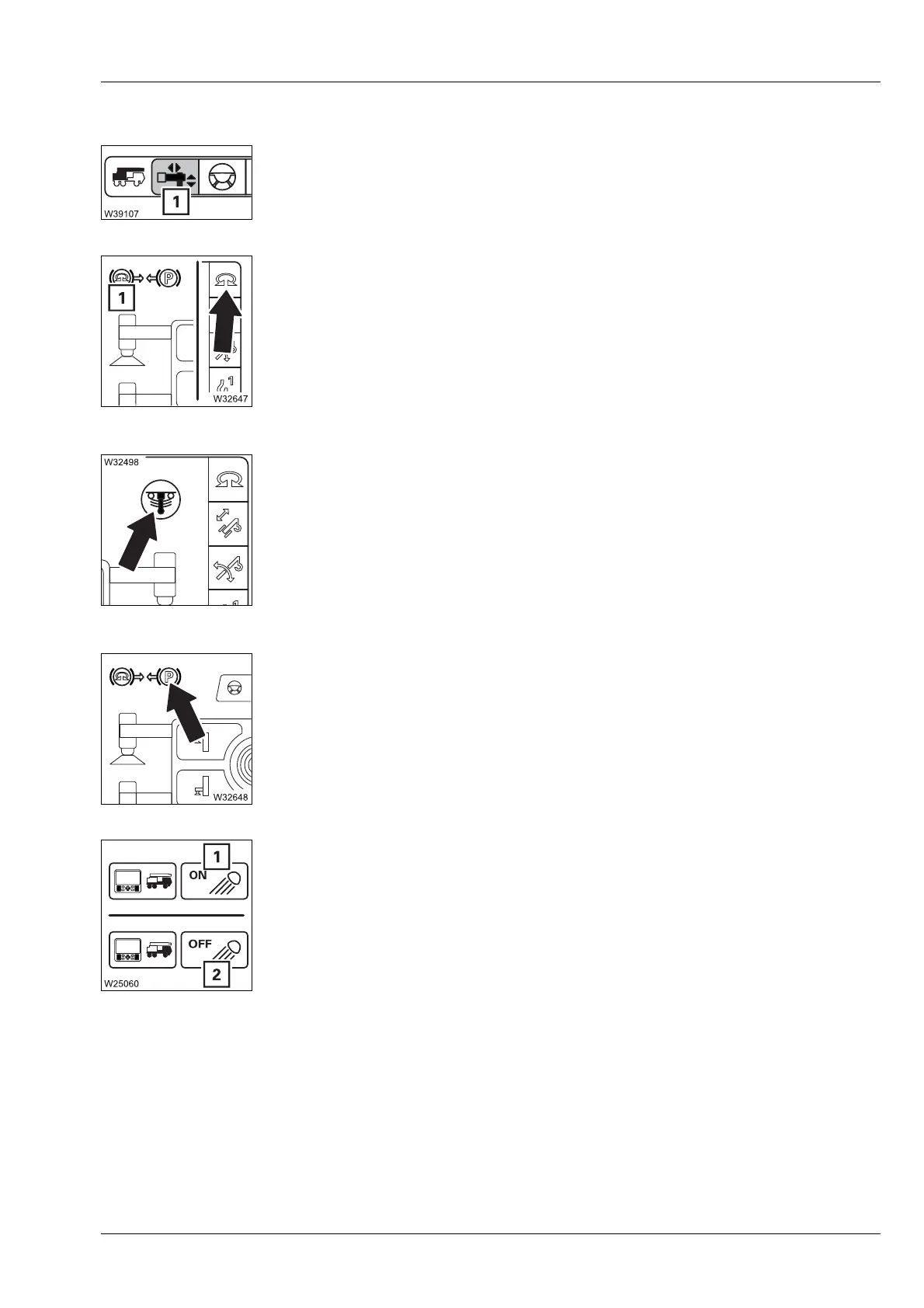

CCS display
Outrigger menu
Slewing gear/movements locked display
Suspension on/off display/warning
Parking brake/movements locked display/warning
Outrigger lighting on/off
s
– Opening: Select and confirm symbol (1)
– Red: Slewing gear switched off – symbol (1) out
–Green: Slewing gear switched on – outrigger movement disabled –
symbol (1) is displayed
à p. 12 - 30
– Red: Suspension is switched off
–Green: Suspension switched on – outrigger movement disabled –
symbol is displayed
à p. 12 - 30
– Red: Parking brake released – outrigger movements locked
– Gone out: Parking brake applied – outrigger movements enabled
à p. 12 - 30
– Switch on: Select symbol (1) and confirm – symbol ON is displayed
– Switch off: Select symbol (2) and confirm – symbol OFF is displayed
à p. 12 - 30
