Rigging work
12.4 Outriggers – Overview – MAXbase slewing range type
12 - 20 3 302 819 en Operating manual
GMK3060
13.12.2018

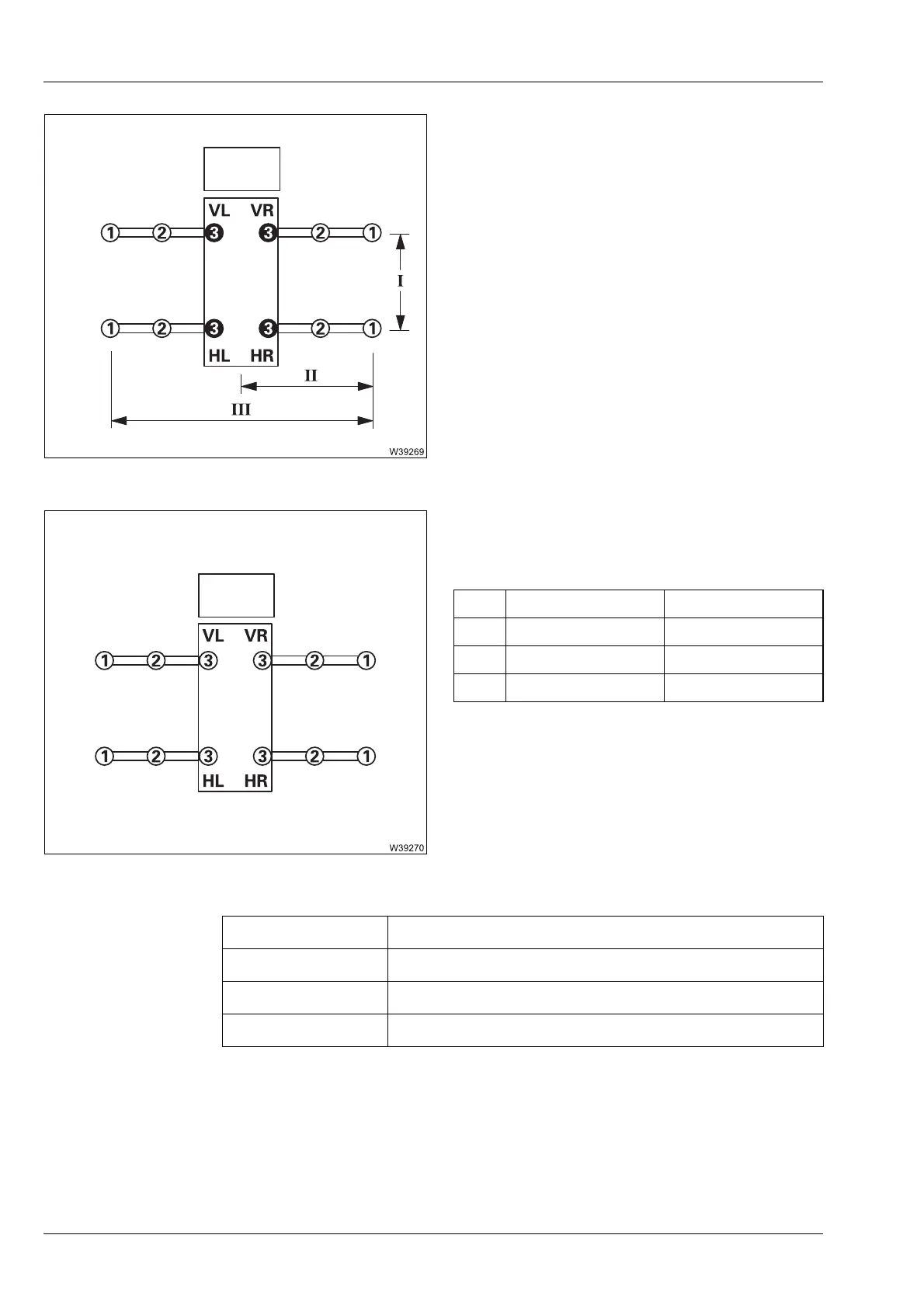

Representation of the outrigger spans
– Outrigger length
The outrigger length (
I) has a fixed value of
6.825 m (22.4 ft) and never changes.
– Outrigger span
All possible outrigger spans (1) to (3) are
always shown for all outrigger beams.
For defining an outrigger span, the rigged out-
rigger spans (and all smaller spans) are shown
in black and the illustration shows the outrigger
spans (3).
The outrigger span is specified as an individual
width (
II) or overall width (III) depending on
the type of the outrigger span.
Individual widths / Overall widths
The tables show the values for the outrigger
spans (1) to (3).
The individual widths and overall widths are spec-
ified in metres (feet) in the lifting capacity tables.
The cover pages of the MAXbase lifting capacity tables provide a brief overview
in per cent.
Individual widths Overall widths
1 3.100 m (10.2 ft) 6.200 m (20.3 ft)
2 2.200 m (7.2 ft) 4.400 m (14.4 ft)
3 1.160 m (3.8 ft) 2.320 m (7.6 ft)
Outrigger span Per cent
1 100%
2 50%
1)
3 0%
1)
Display on the outrigger control unit 51%
