Manitowoc GROVE GMK3060

Operating elements for driving
3.2 Brief description of the operating elements
3 - 70 3 302 819 en Operating manual
GMK3060
13.12.2018

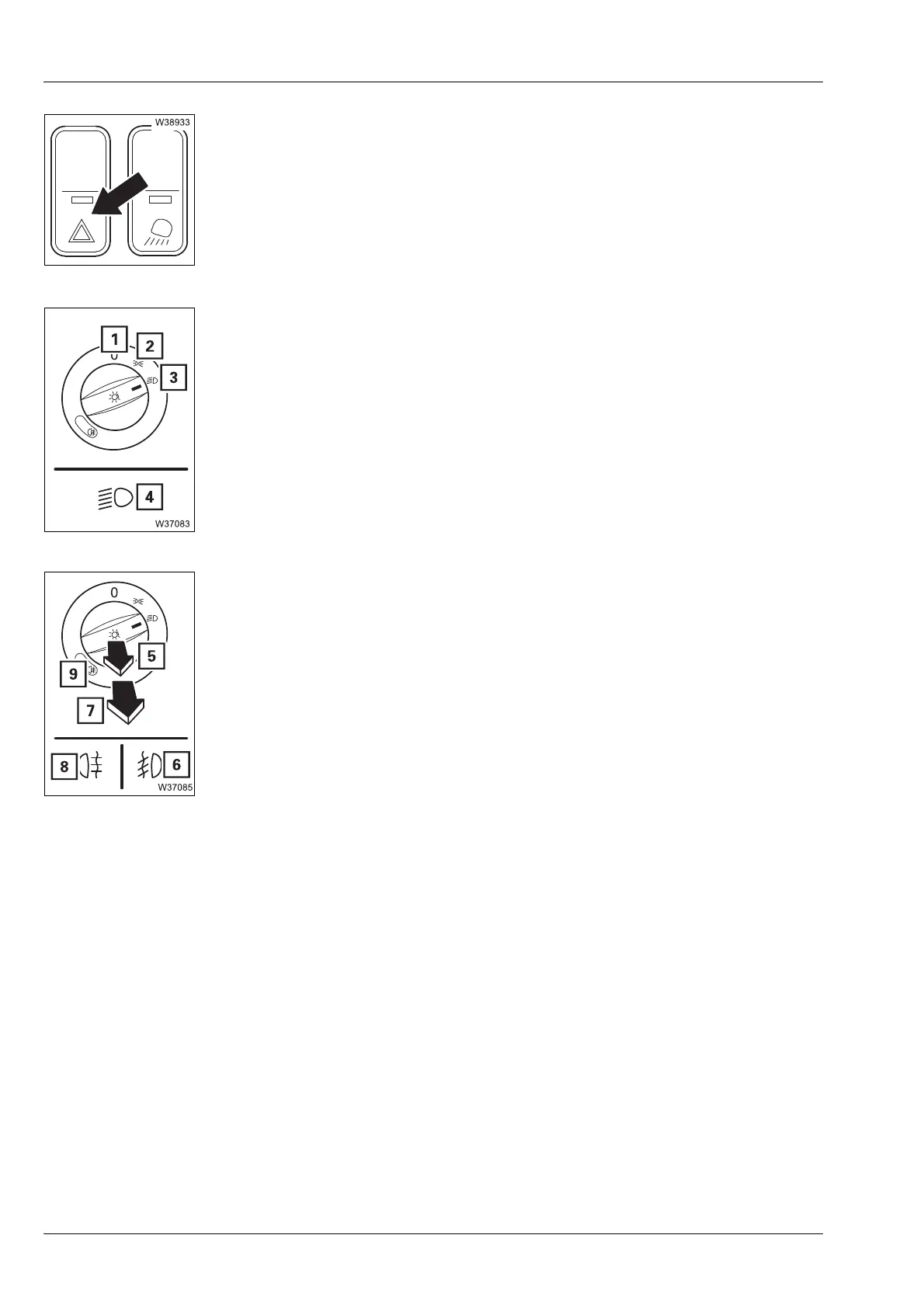

Hazard warning system on/off
Lighting on/off
– Parking light/headlight
– Fog light /fog tail light
The headlight or parking light is switched on
Press the switch in to switch off
– Switch on: Press downwards – light in the switch flashes
– Switch off: Press in at the top – gone out
1 Light off
2 Parking light on Instrument lighting on
3 Headlight on The lamp (4) lights up, daytime driving light off
Full beam can be switched on using the multipurpose
switch
5 Fog light on – The lamp (6) lights up
7 Fog tail light on – Lamps (8) and (9) light up
