Driving mode
5.4 Off-road driving
Operating manual 3 302 819 en 5 - 63
GMK3060
13.12.2018
Towing free
forwards

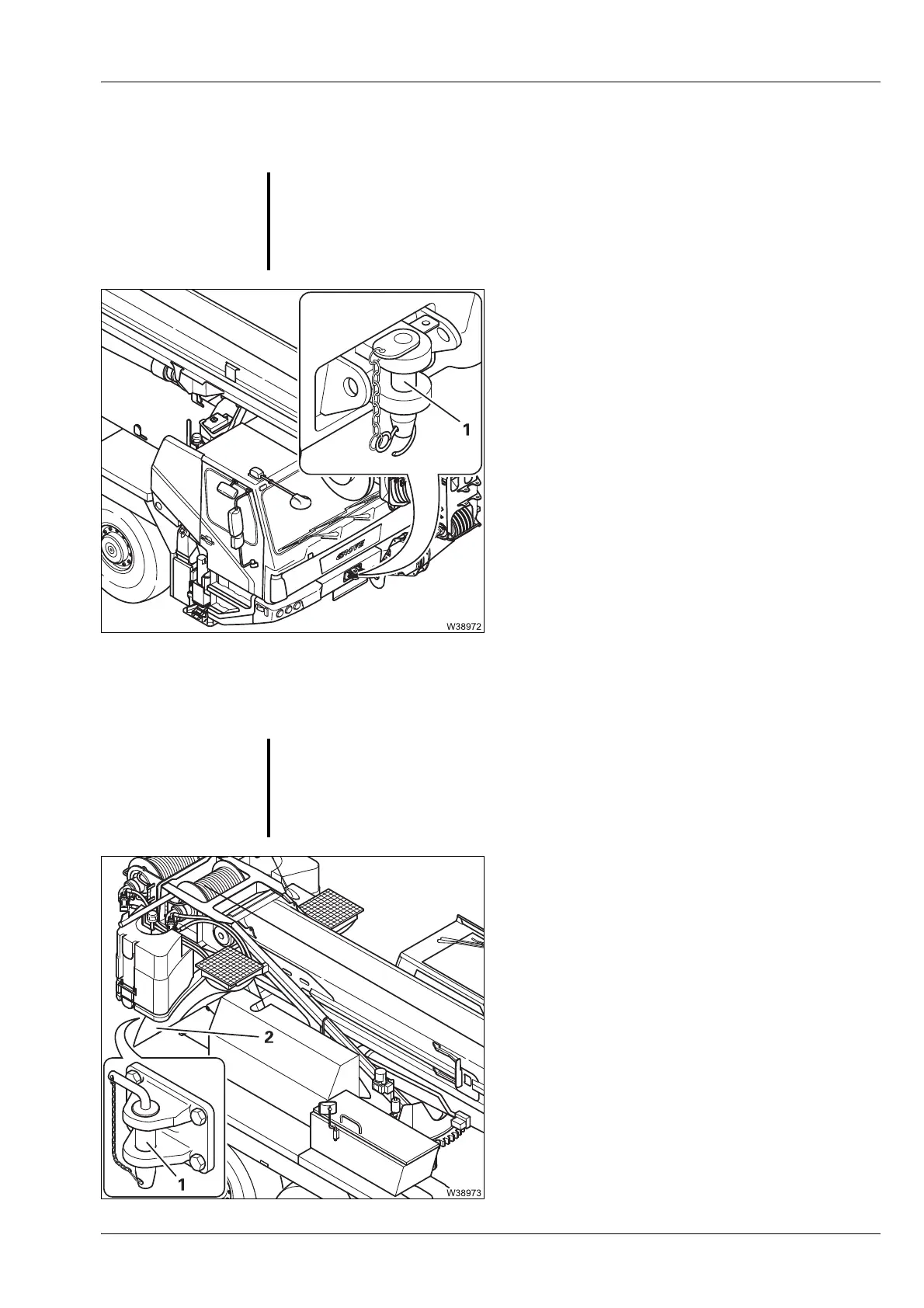

• Fasten a steel rope to the front towbar coupling.
The front towbar coupling (1) is designed for a
maximum tensile force of 100 kN (approx. 10 t)
(22,480 lbf (approx. 22,050 lbs)) when:
– The direction of pull runs forward along the lon-
gitudinal axis or at an angle of 45° to the right or
left of the longitudinal axis and
– The direction of pull runs along the longitudinal
axis towards the rear without diverting up or
down.
Towing free in
reverse gear
• Fasten a steel rope to one of the towing eyes on the rear chassis wall using a
shackle.
The rear towing coupling (1) on the rear
chassis wall is designed for a maximum tensile
force of 75 kN (approx. 7.5 t) (16,860 lbf
(approx. 16,530 lbs)), when:
– The direction of pull runs along the level of the
longitudinal axis and
– The direction of pull runs along the longitudinal
axis towards the rear without diverting up or
down.
Remove the spare wheel (2) if necessary;
à p. 8 - 34.
S
Risk of damage to the chassis!
Only tow the truck crane free while observing the procedure given for the pulling
direction.
Jerking the truck crane or pulling it at an angle can cause damage to the chassis.
S
Risk of damage to the chassis!
Only tow the truck crane free while observing the procedure given for the pulling
direction. Otherwise the chassis may be damaged or the towing eyes may be
torn off or bend.
