Driving mode
5.6 Heating and air-conditioning system
5 - 70 3 302 819 en Operating manual
GMK3060
13.12.2018

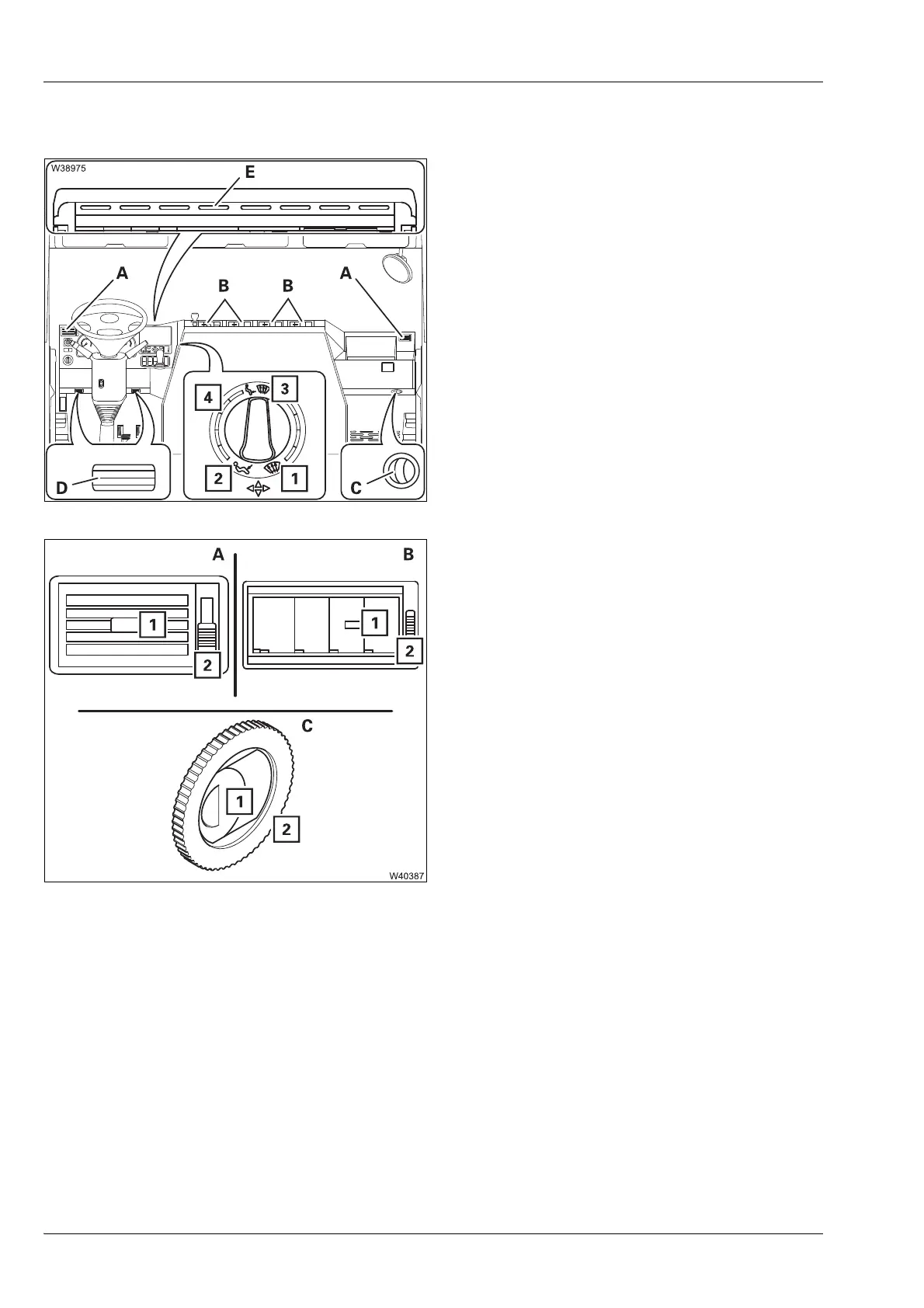

Air distribution You can direct the air to flow out of various air vents.
Turn the switch (4) to the desired position
(1) – Air vents (A), (B), (E)
(2) – Air vents (C), (D)
(3) – All air vents
Adjusting the air vents
Open/close
A (2) Upwards/downwards
B, C (1) Folding the fins in/out
To direct the air flow
A (1) Pivoting the fins
B (1), (2) Pivoting the fins
C (1) Pivoting the fins
(2) Rotating
