Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 819 en 9 - 61
GMK3060
13.12.2018

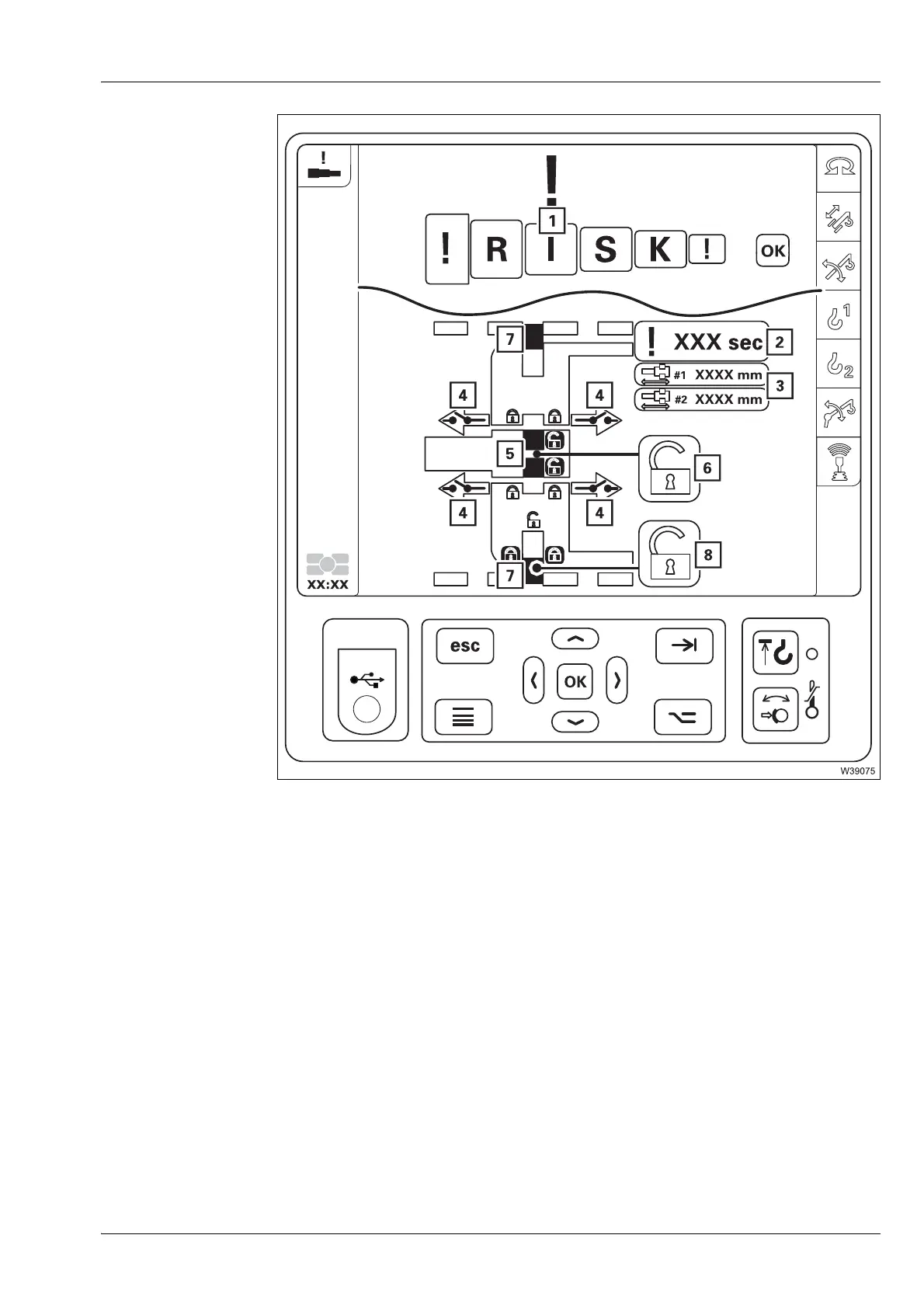

Telescoping
emergency
program menu
s
1 Input access code emergency program à p. 14 - 33
2 Remaining time emergency program display
à p. 14 - 33
3 Telescoping cylinder length displays
à p. 14 - 33
4 – Locking status telescoping cylinder display
– Locking/unlocking the telescoping cylinder
à p. 14 - 33
5 – Locking status telescopic section display
– Locking/unlocking a telescopic section
à p. 14 - 33
6 Display, position of the telescoping cylinder in the foot
section
à p. 14 - 33
