Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 120 3 302 819 en Operating manual
GMK3060
13.12.2018

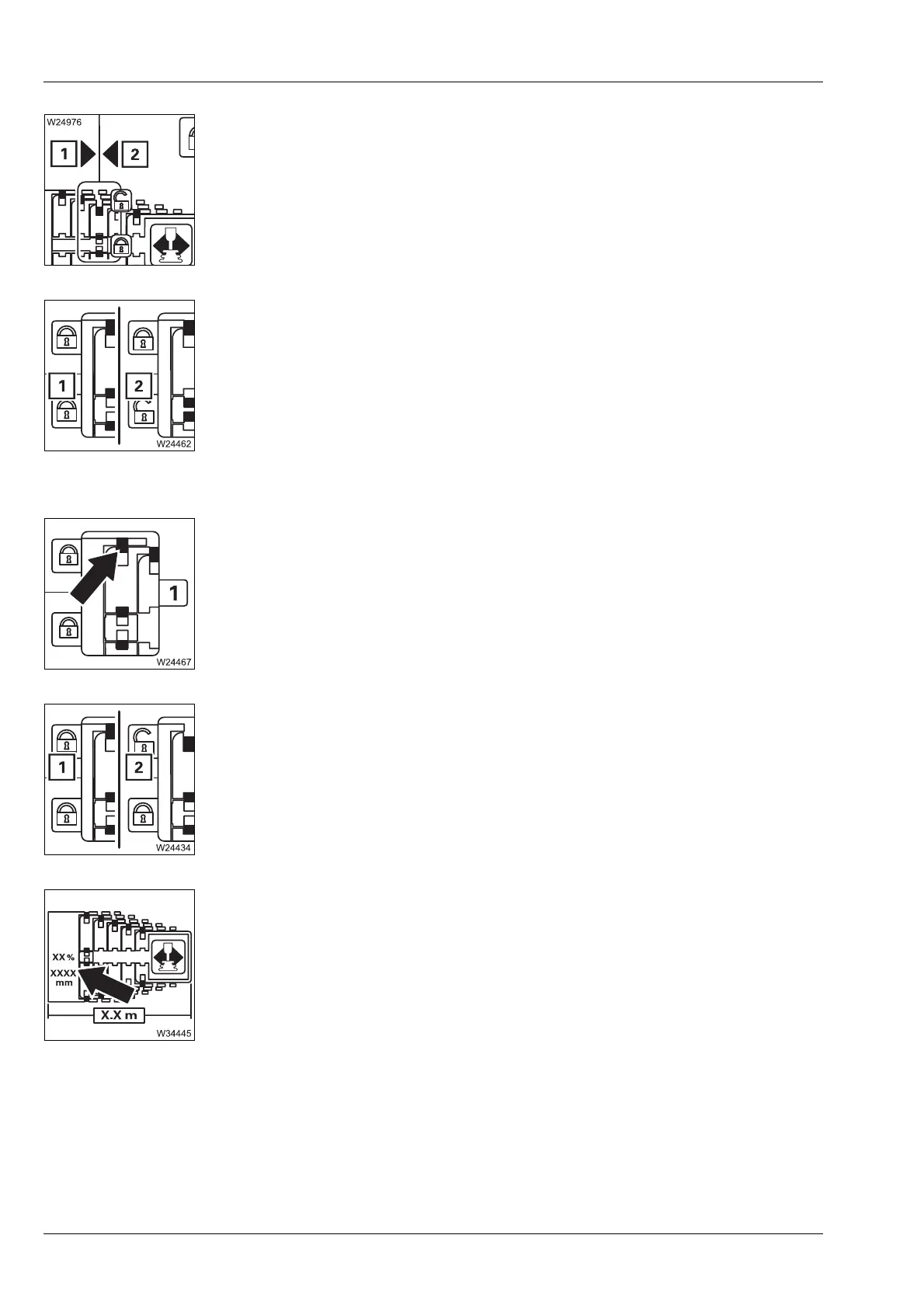

Locking point display
Locking/releasing the telescoping cylinder
Lock/release telescopic section
Telescoping cylinder length display
1 Extend telescoping cylinder
2 Retract telescoping cylinder
– To lock: – Telescopic section locked:
Select symbol (2) and confirm – telescoping cylinder is locked
– To unlock: – Telescopic section locked:
Select symbol (1) and confirm – telescoping cylinder is
unlocked
à p. 11 - 109
– Display Yellow: Locking pins intermediate position
Green: Telescopic section locked
Red: Telescopic section unlocked
– To lock: – The telescoping cylinder is locked:
Select symbol (2) and confirm – telescopic section locked
– To unlock: – The telescoping cylinder is locked:
Select symbol (1) and confirm – telescopic section is unlocked
à p. 11 - 113
– Display: Current extended length of the telescoping cylinder
– Unit of measure-
ment:
Displayed in % (per cent) and, depending on setting,
mm (millimetres) or ft (feet)
à p. 11 - 107
