Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 125
GMK3060
13.12.2018
Houselock à Switching the houselock on/off, p. 11 - 20.

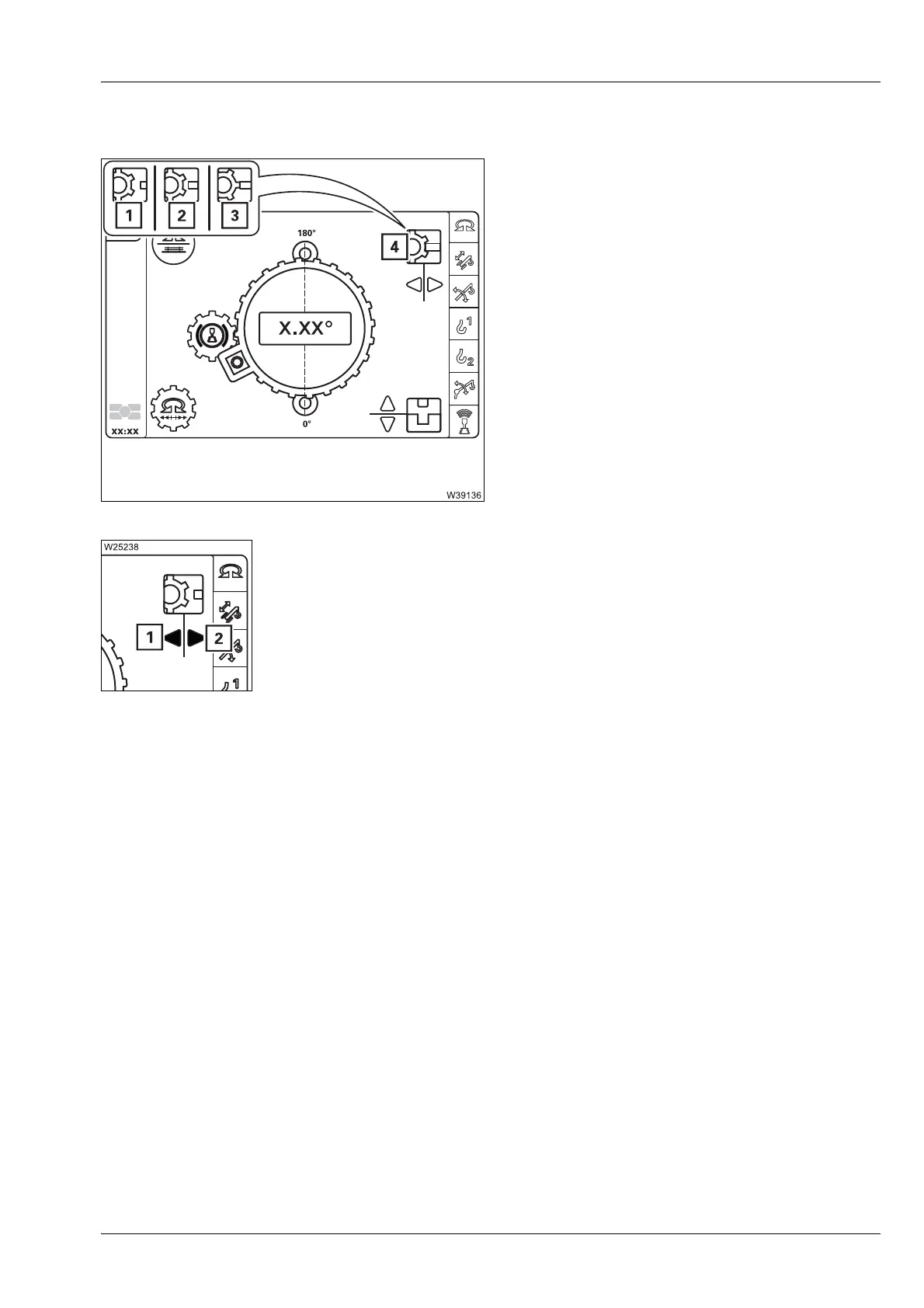

Locking status displays
The current position of the locking pin is shown by
different symbols:
Houselock on/off
1 Unlocked
2 Intermediate position
3 Blocked, locking pin in front of a tooth
4 Locked
à p. 11 - 20
Switch on: Symbol (1) – Pin extends
Switch off: Symbol (2) – Pin retracts
à p. 11 - 20
