Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 147
GMK3060
13.12.2018

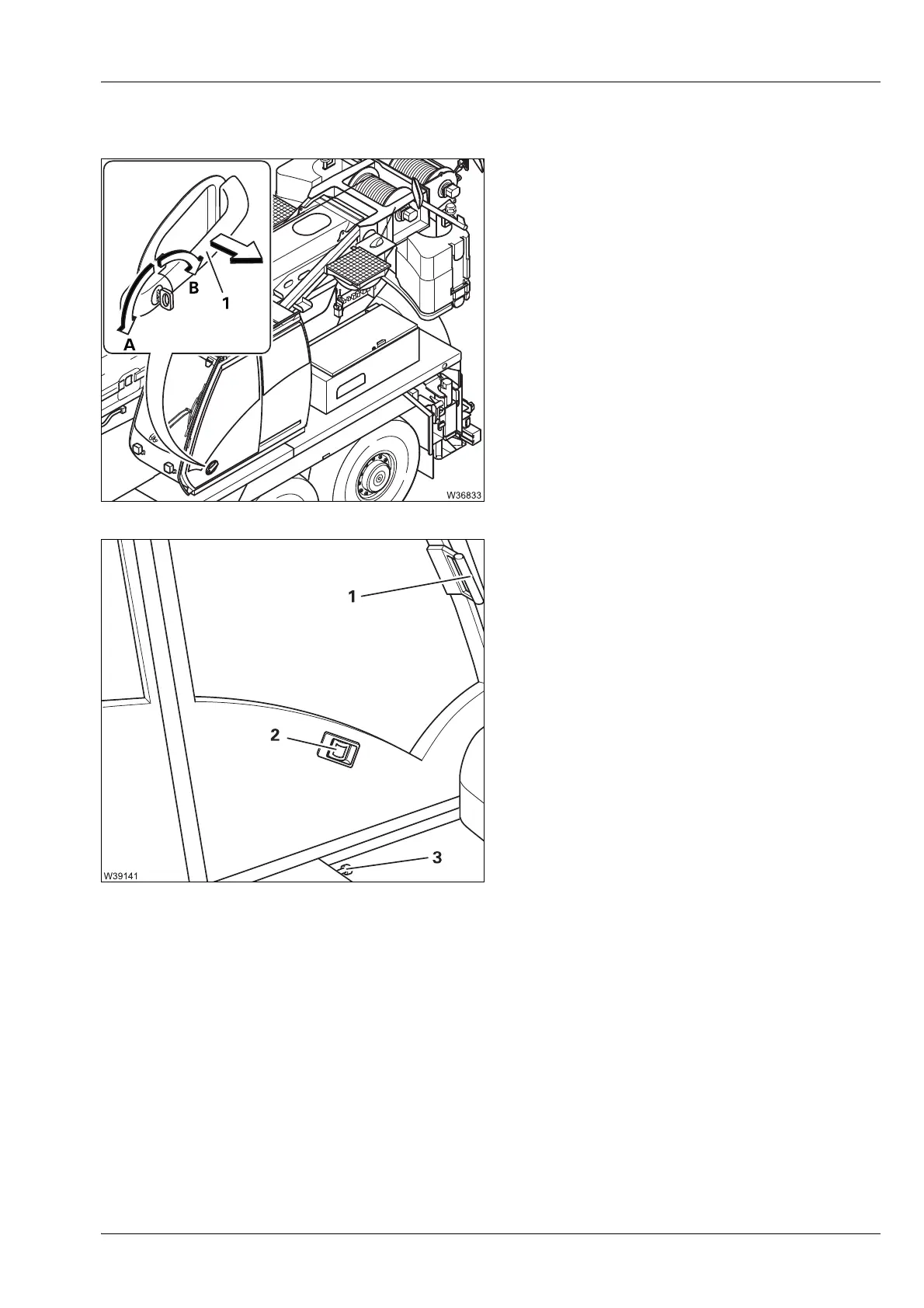

Crane cab door
From outside
Unlocking
• Turn the key in direction A.
Locking
• Turn the key in direction B.
Open/close
• Pull the handle (1).
• Slide the door.
From inside
– Closing
Pull release lever (3), push door forwards by
handle (1) – latches.
Locking from inside not possible.
– Opening
Pull release lever (2), push door back by
handle (1) – latches.
