Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 819 en 11 - 47
GMK3060
13.12.2018
Slewing range
type MAXbase
If the Standard slewing range type has been entered; Ã p. 11 - 45.
• Check that the current rigging mode of the truck crane corresponds to the
displayed rigging mode.
• Check:
• Correct any incorrectly entered rigging modes if
necessary.

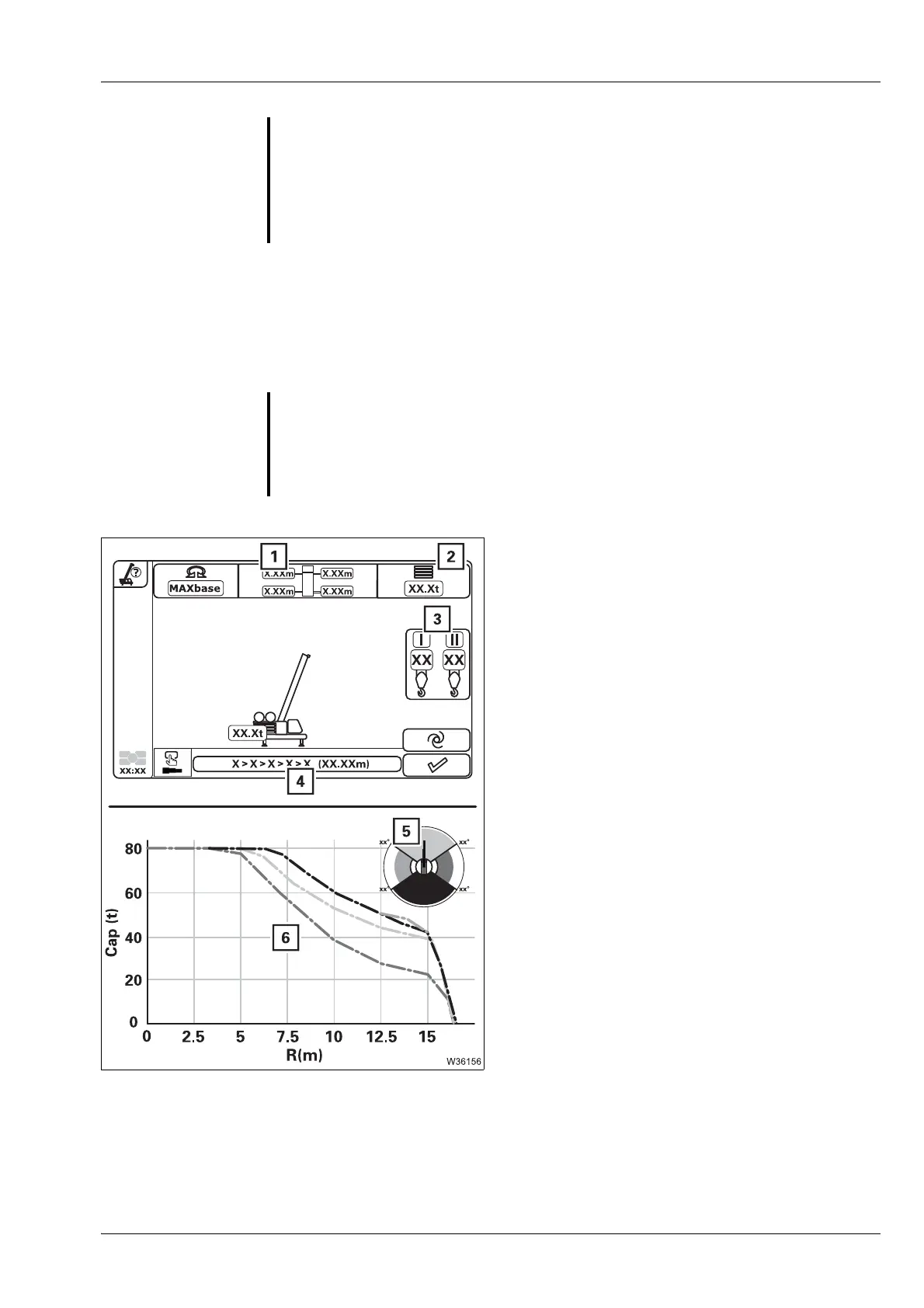

The displayed lifting capacity tables apply to the
preselected telescope status (4) in the respec-
tively corresponding slewing ranges (5).
If the current rigging mode is displayed and the
planned operations lie within the displayed oper-
ating ranges (6), then you can confirm the rigging
mode.
s
S
Risk of accident due to incorrectly supported truck crane!
A shutdown is not initiated as standard when an outrigger span monitoring error
message is issued. When an error message is displayed, compare the rigged
outrigger span with the required outrigger span and rig the required outrigger
span.
This prevents the truck crane from tilting due to an inadequate outrigger span.
G
Risk of accidents due to an incorrectly set RCL!
If the current rigging mode varies from the displayed rigging mode, the maximum
load displayed by the RCLwill not correspond to the actually permissible lifting
capacity according to the Lifting capacity table.
Overloading and accidents will certainly be the result.
–1 The rigged outrigger span
–2 The rigged counterweight
–3 The number of reeved hoist rope lines
