Crane operation
11.5 Crane operation with main boom
11 - 114 3 302 819 en Operating manual
GMK3060
13.12.2018
If removing the load does not cause unlocking, you must lock the telescopic
section (
à p. 11 - 115) and restart unlocking.
Telescoping the
telescopic section
You can telescope the telescopic section once it is unlocked.
Prerequisites
– Telescoping mechanism on – symbol (3) green
– Telescoping cylinder locked – symbol (2) green
– Telescopic section unlocked – symbol (1) red
Telescoping
If the requirements for telescoping are met, the
symbol (3) flashes.
• Move the control lever in the desired telescop-
ing direction.

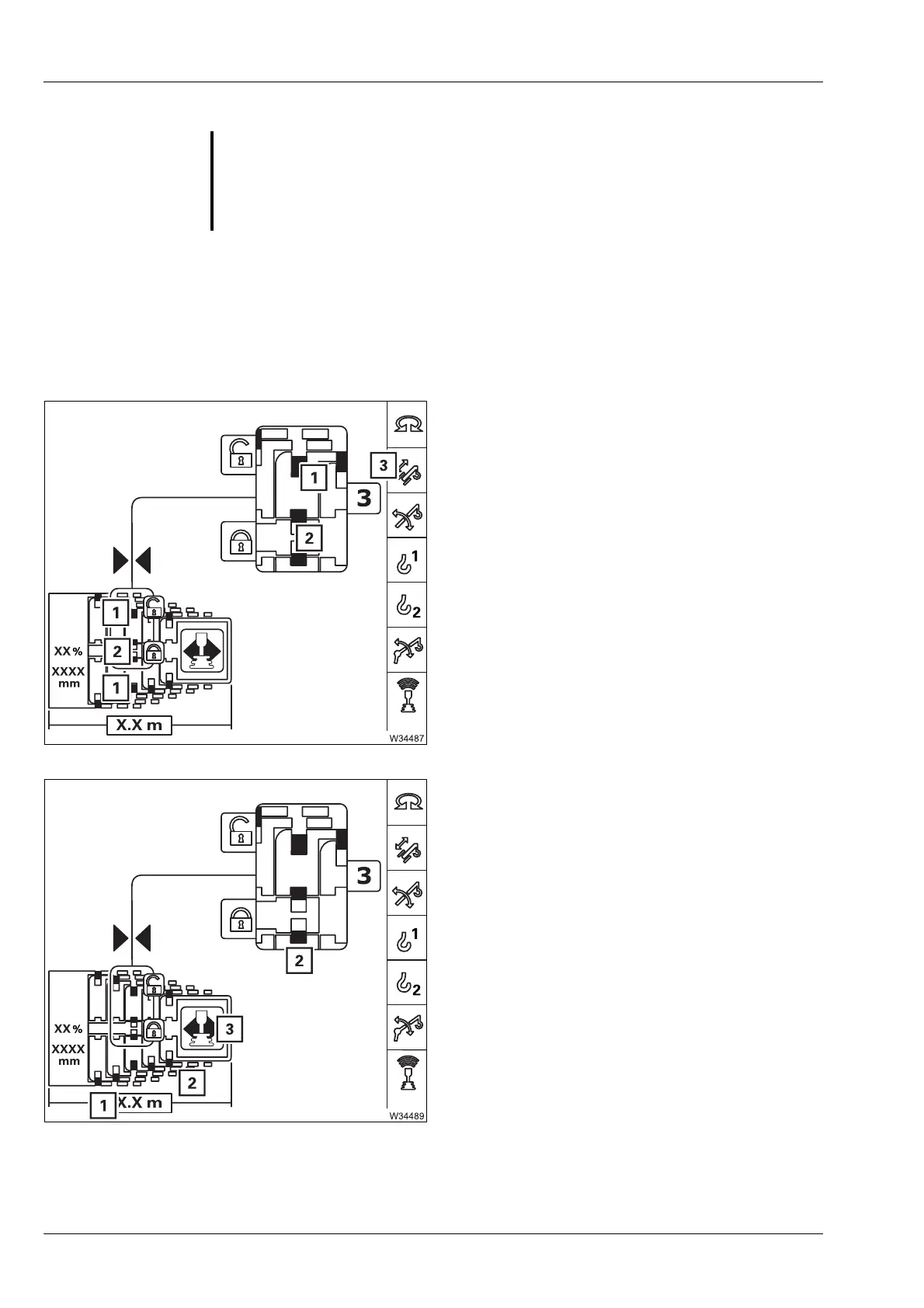

The display (1) shows the current extended
length (telescoping in metres).
The current telescope diagram on the display (2)
will change continually.
S
Risk of damage to the boom system!
If extending and retracting several times does not lead to the lock being released,
you must not telescope any further against the stop.
