Crane operation
11.7 Working range limiter
Operating manual 3 302 819 en 11 - 145
GMK3060
13.12.2018

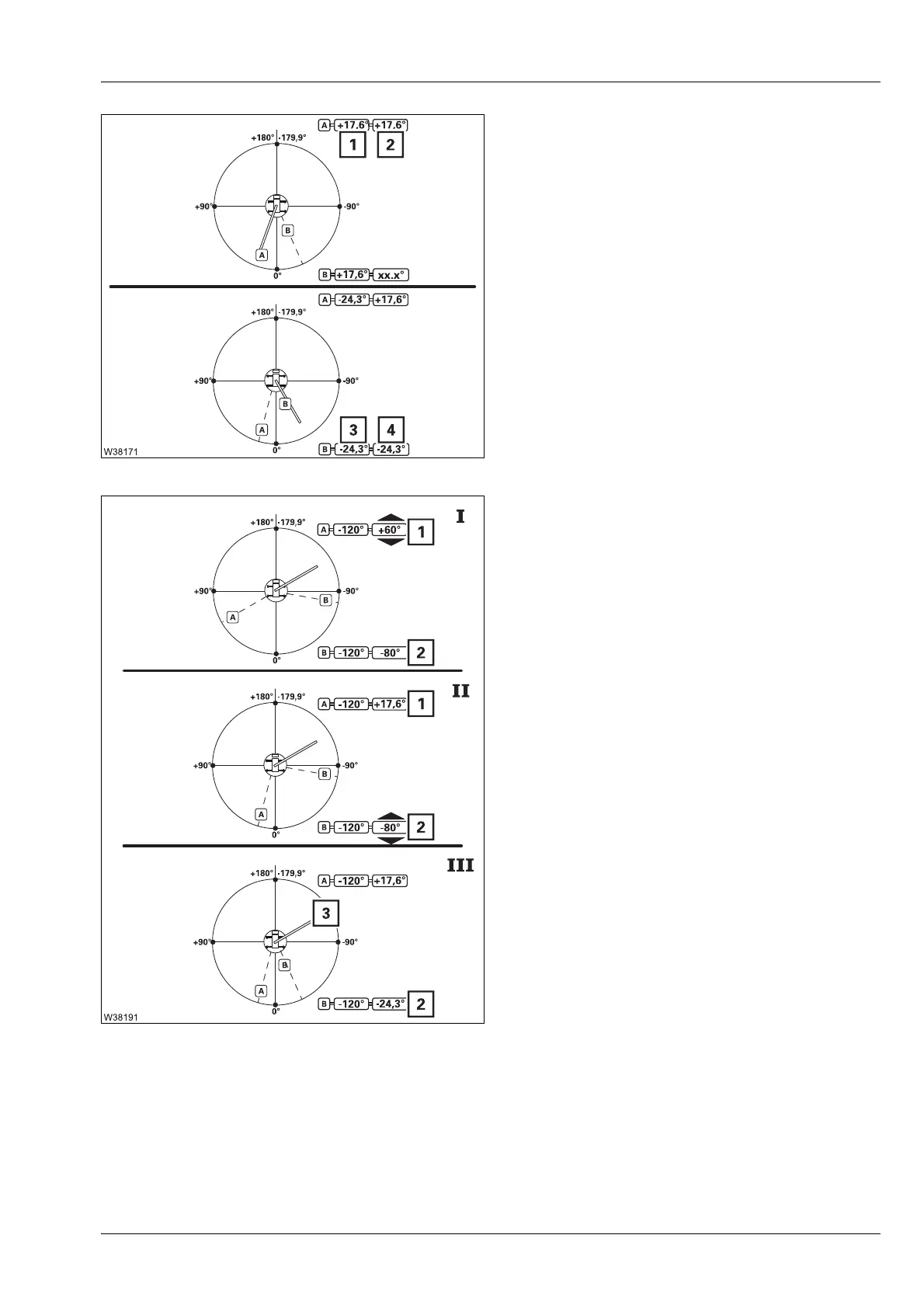

Accepting limit value
– Slewing angle A
• Slew the main boom to the shutdown point
from the right, for example, value (1).
• Select and confirm the display (1). The
value (1) will be accepted as the limit
value (2), for example, +17.6°.
– Slewing angle B
• Slew the main boom to the shutdown point
from the left, for example, value (3).
• Select and confirm the display (3). The
value (3) will be accepted as the limit value (4),
for example, -24.3°.
Entering limit values manually
– Slewing angle A
• (I) – Select and confirm the display (1).
• (I) – Enter the limit value, e.g.,+17.6° and
confirm the input. Display (1) shows the newly
entered limit value.
– Slewing angle B
• (I) – Select and confirm the display°(2).
• (II) – Enter the limit value,
e.g. -24.3° and confirm the input. Display (2)
shows the newly entered limit value.
The current slewing angle (3) shows the current
position to the shutdown range.
