Rigging work
12.5 Operating the outriggers
12 - 32 3 302 819 en Operating manual
GMK3060
13.12.2018
Overall width 4.400 m (14.4 ft)
Smallest individual width 2.200 m (7.2 ft)

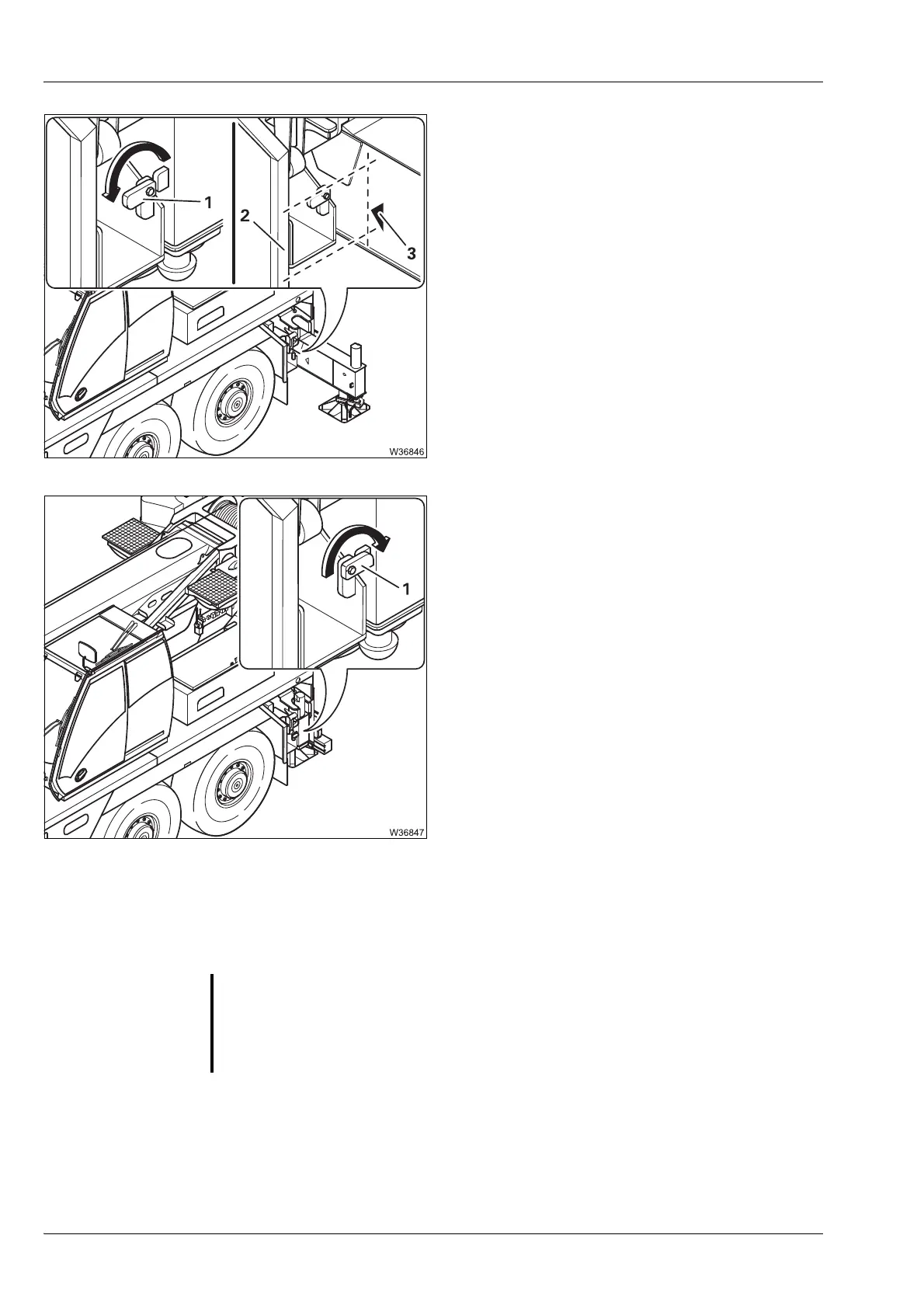

• Release the outrigger beam – locking bar (1)
forwards.
• Extend the outrigger beam until the tip of the
marking (3) protrudes exactly the same dis-
tance from the vehicle chassis as the splash
guard (2).
For the overall width
• Set the same outrigger span in the same way at
the opposite outrigger beam.
Overall width 2.320 m (7.6 ft)
Smallest individual width 1.160 m (3.8 ft)
• Retract the outrigger beam until it reaches the
stop.
• Secure the outrigger beam – locking bar (1) to
the rear.
For the overall width
• Set the same outrigger span in the same way at
the opposite outrigger beam.
For on-road
driving
• Set an outrigger span of 2.320 m (7.6 ft) on all outrigger beams and secure
them.
• Bring all the outrigger pads into driving position; à p. 12 - 37.
G
Risk of accidents due to outrigger beams sliding out
Completely retract all outrigger beams and secure them. This prevents the
outrigger beams sliding out when driving around corners and causing serious
accidents.
