Rigging work
12.6 Rigging/unrigging the counterweight
Operating manual 3 302 819 en 12 - 63
GMK3060
13.12.2018
Setting down the
1.0 t base plate
For version A and B

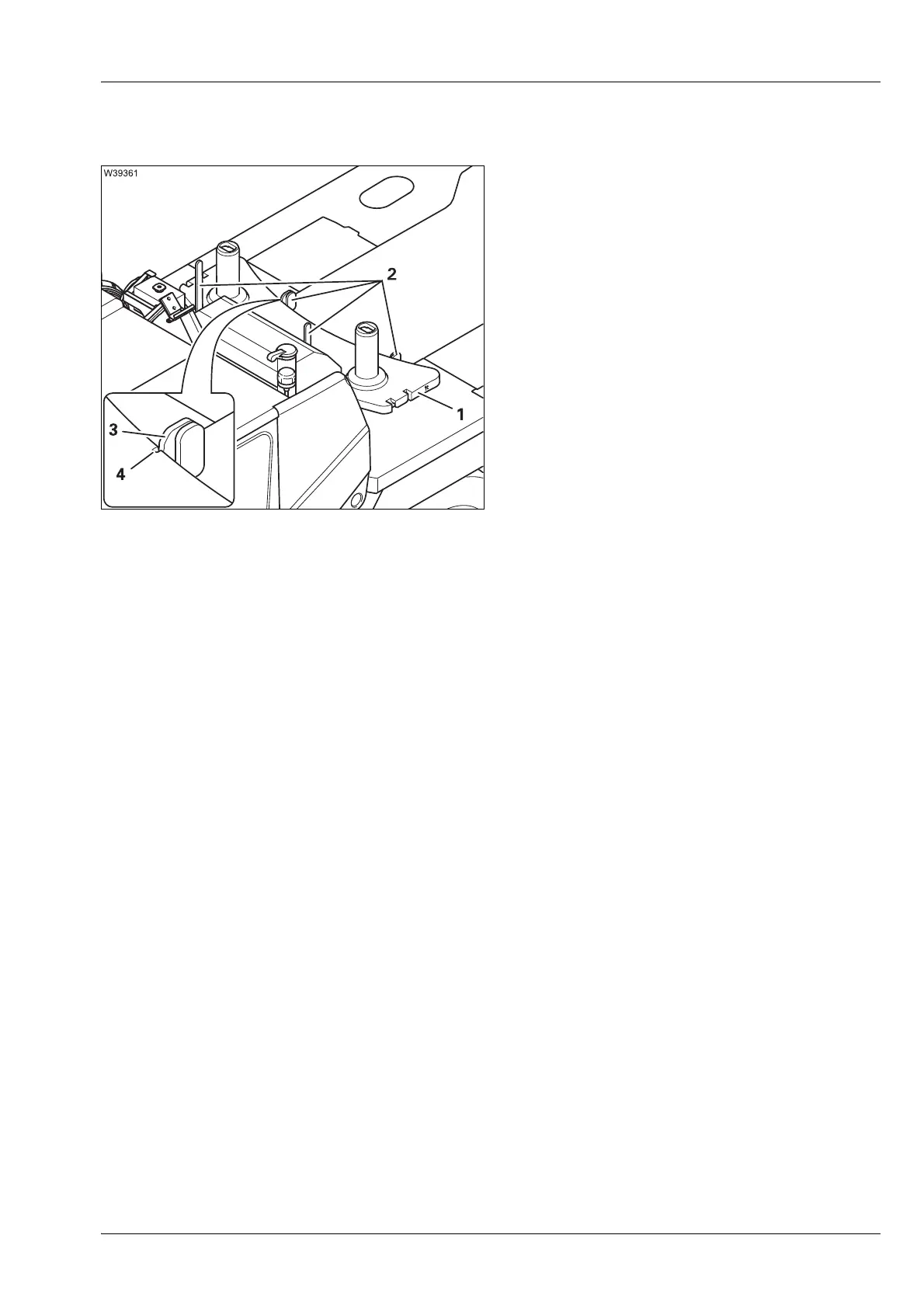

Only the 1.0 t base plate (1) may be set down
directly on the counterweight platform.
The retaining sheets (2) on the counterweight
platform bring the 1.0 t base plate into the right
position for rigging.
• Position the 1.0 t base plate in such a way that
the recess (4) engages in the rear retaining
sheet (3),
For larger counterweight combinations, now set
additional counterweight sections onto the 1.0 t
base plate.
