Rigging work
12.7 Rigging work on the main boom
Operating manual 3 302 819 en 12 - 83
GMK3060
13.12.2018
Positioning

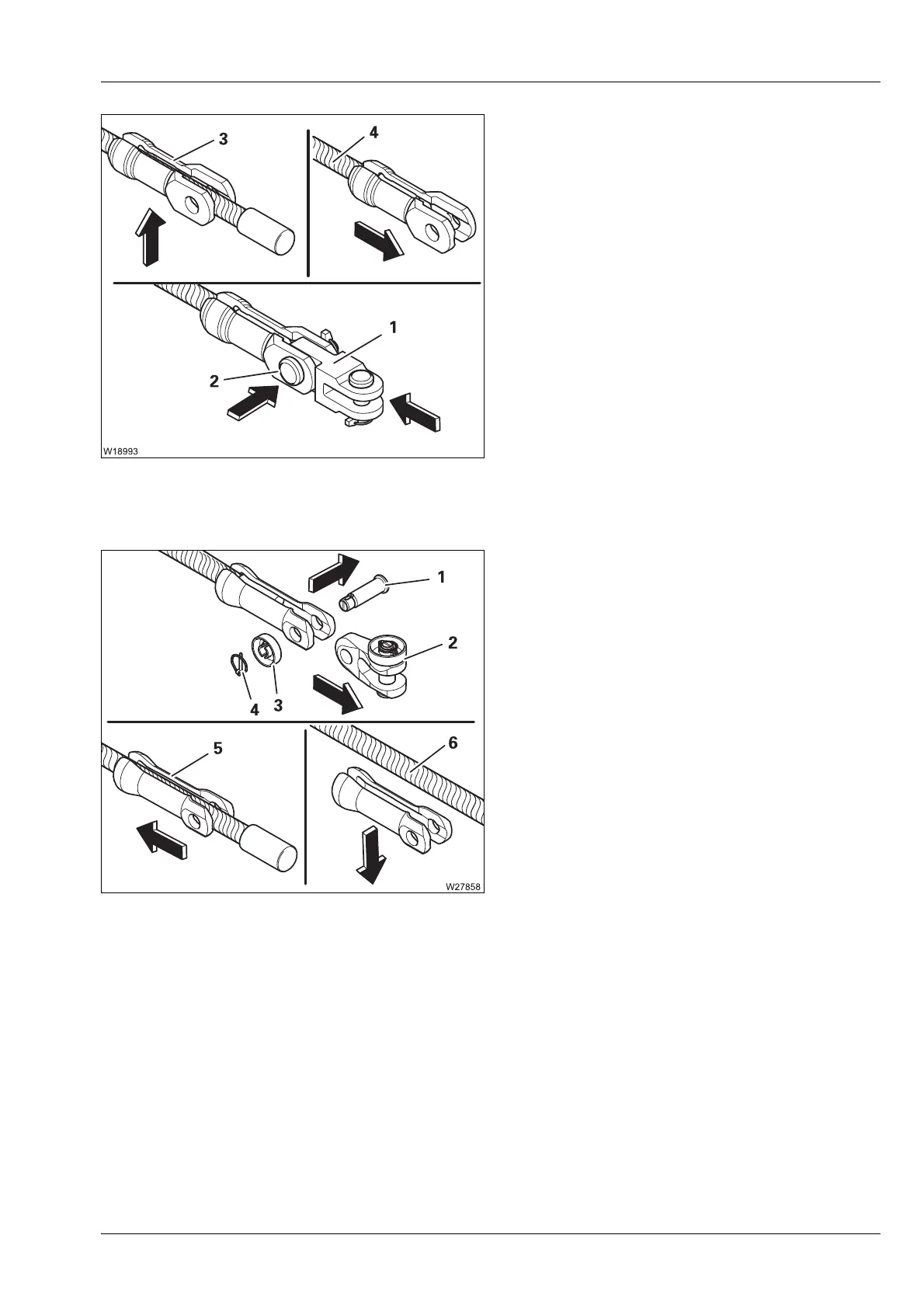

• Plug the holder (3) and slide it onto the hoist
rope as far as it will go (4).
• Fasten the fork element (1) using the pin (2).
• Secure the pin.
Version B
Removing
• Remove the linchpin (4).
• Release the locknuts (3) and pull out the
pins (1). Remove the bracket (2).
• Slide the padlock (5) back and remove it from
the hoist rope (6).
