Rigging work
12.7 Rigging work on the main boom
12 - 98 3 302 819 en Operating manual
GMK3060
13.12.2018
Removing the lift-
ing limit switch
This section describes complete removal.
If the hook block is to be attached to the bumper at a later point, you will need to
detach the lifting limit switch weight from the hoist rope, so that you can unreeve
or reeve when unrigging the hoist rope. You can place the lifting limit switch
weight around the hoist rope again before driving.
Removing the lifting limit switch weight

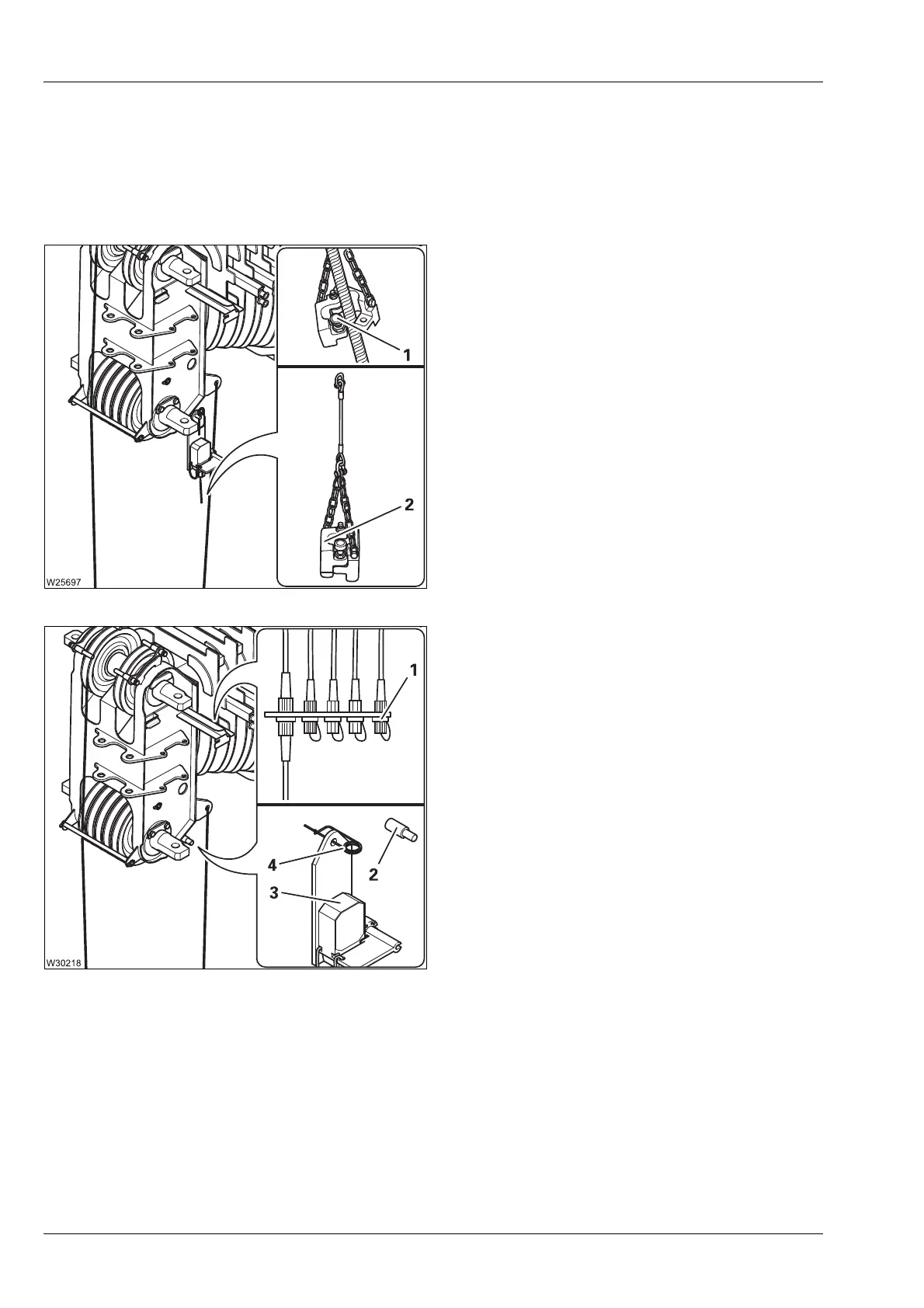

• Pull the safety pin (1) out and fold the two
halves of the weight apart.
• Remove the halves of the weight from the rope
line.
• Pull the safety pin (1) out, fold the two halves of
the weight back together and let the safety pin
engage.
• Remove the lifting limit switch weight (2).
• Remove the lifting limit switch weight on the
other side too, if necessary.
Removing the left lifting limit switch
• Pull out the plug and close the socket with the
protective cap (1).
• Remove the lifting limit switch (3) from the
bracket (2).
• Attach the retaining pin (4) to the lifting limit
switch.
