Rigging work
12.7 Rigging work on the main boom
Operating manual 3 302 819 en 12 - 103
GMK3060
13.12.2018

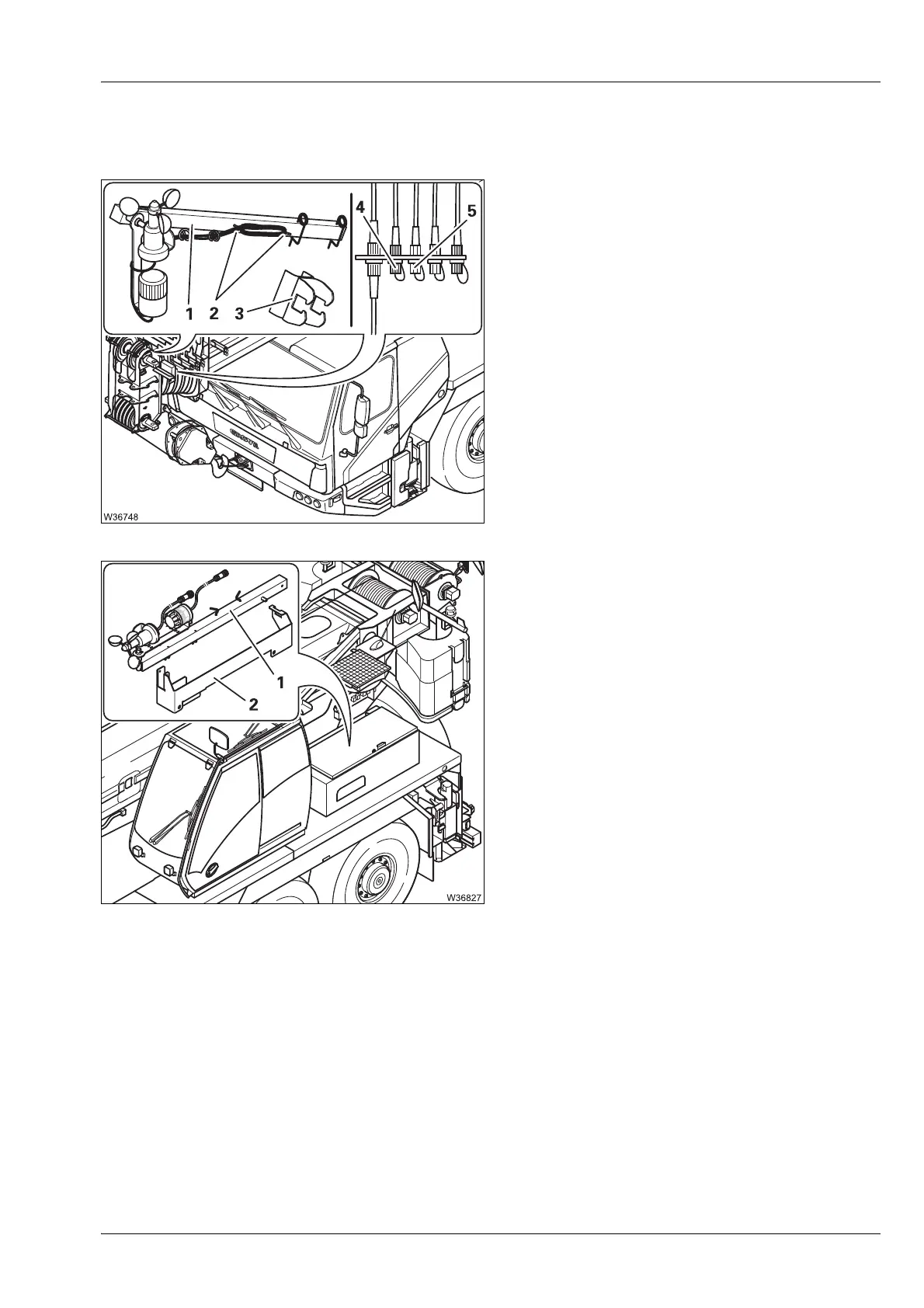

Removing You must remove the rod with the anemometer/air traffic control light before
driving on the road.
• Switch off the air traffic control light.
• Remove the plug and close the sockets (4)
and (5) with the protective caps.
• Wind the cables on to the clamps (2).
• Remove the rod (1) from the clamp (3).
• For transportation, fasten the retaining pins to
the rod (1).
For transport
• Place the rod (1) in the holder (2).
• Secure the rod (1) using the retaining pins.
