Malfunctions during crane operation
14.5 Emergency operations and programs
14 - 44 3 302 819 en Operating manual
GMK3060
13.12.2018
Connection • Switch off the engine
H
Pulling a bridging plug will shut the engine off, but this action is only designed for
emergencies.

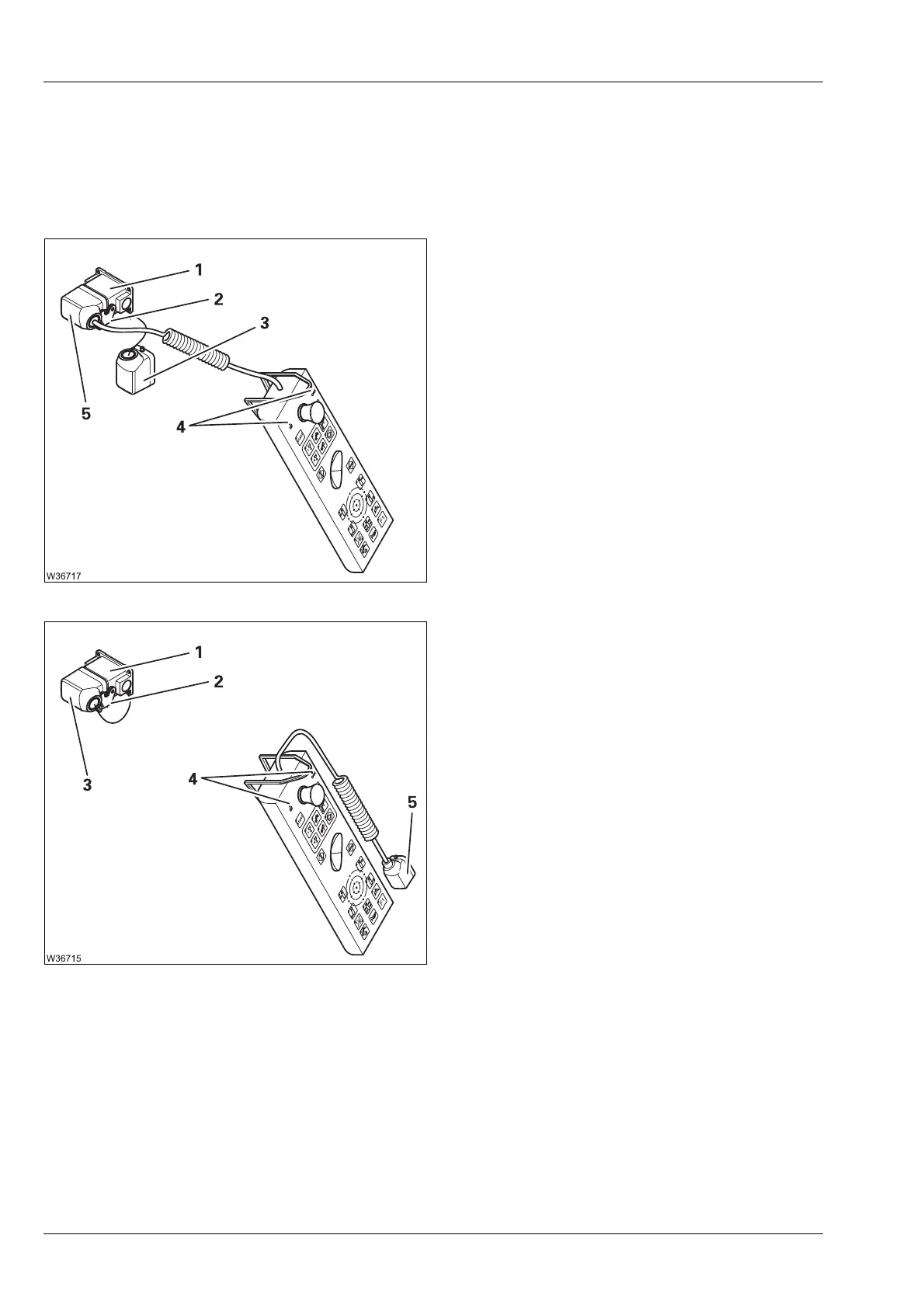

Connecting the hand-held control
• Open the cap (2) and remove the bridging plug
(3) from the socket (1).
• Insert the plug (5) into the socket (1) and secure
it with the lock (2).
• After about 20 seconds, the lamps (4) light up –
the ignition is now switched on.
If the lamp (4) does not light up or if it flashes,
there is a malfunction;
à p. 14 - 23.
Disconnecting the hand-held control
• Open the cap (2).
• Remove the plug (5) from the socket (1) –
the lamps (4) will go out.
• Insert the bridging plug (3) into the socket (1)
and secure it with the cap (2).
The ignition is switched off, unless it is switched
on at an ignition lock.
