AUTOMATIC TRANSMISSION
05–13–44
TORQUE CONVERTER CLUTCH (TCC) OPERATION
CHU051301030S17
TCC release
• The TCM stops driving the TCC solenoid (OFF) when TCC release is determined.
TCC engagement
• When the TCM determines TCC engagement, the TCM gradually increases the duty ratio energizing the TCC
solenoid, and gradually drains the oil pressure in the torque converter F chamber.
• The TCC piston slowly presses against the converter cover, and the TCC engages smoothly.
Determination of TCC inhibition
• The TCC is inhibited when any of the following conditions are met.
— ATF temperature is low.
— Throttle valve is closed.
— Failure is detected by diagnosis function.
End Of Sie
SLOPE MODE CONTROL OUTLINE
CHU051301030S18
• Climbing or descending is determined based on the engine output torque and the vehicle acceleration, and the
shift gear is controlled to realize smooth vehicle driving.
End Of Sie
SLOPE MODE CONTROL OPERATION
CHU051301030S19
When climbing hill
• When the hill is steeper than a certain grade, unnecessary shift up is prevented by holding an appropriate shift
gear.
Descending hill
• When the descent is steeper than a certain grade and the brake switch is depressed, use of the brake pedal is
reduced by shifting from 4GR to 3GR, or 3GR to 2GR and applying engine braking.
End Of S ie

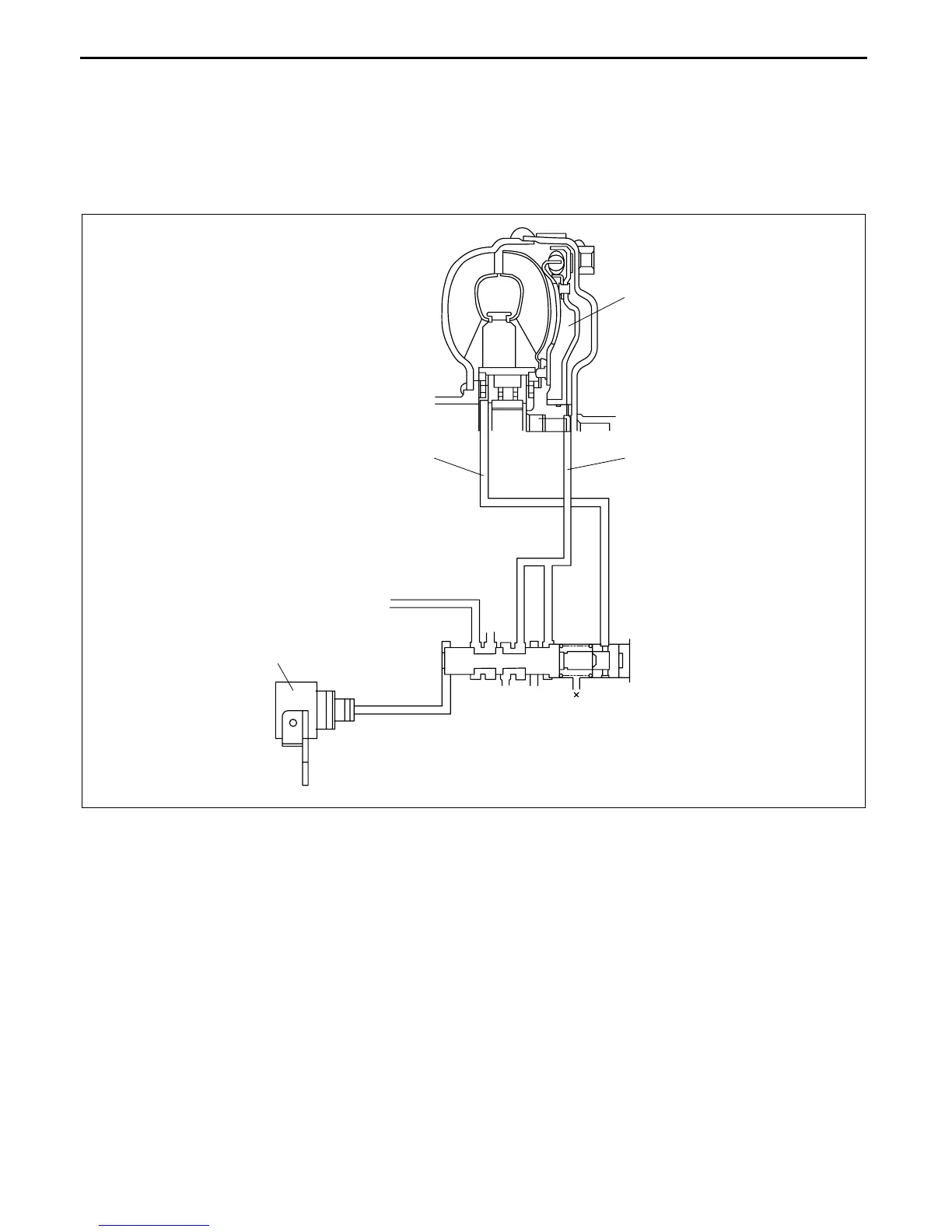

TORQUE CONVERTER
F CHAMBER
TORQUE CONVERTER
PRESSURE (DRAIN)
TORQUE CONVERTER PRESSURE
OIL COOLER
TCC SOLENOID
PILOT PRESSURE
TCC CONTROL VALVE
CHU0513S061
