LUBRICATION SYSTEM OUTLINE
CHU051319900S01

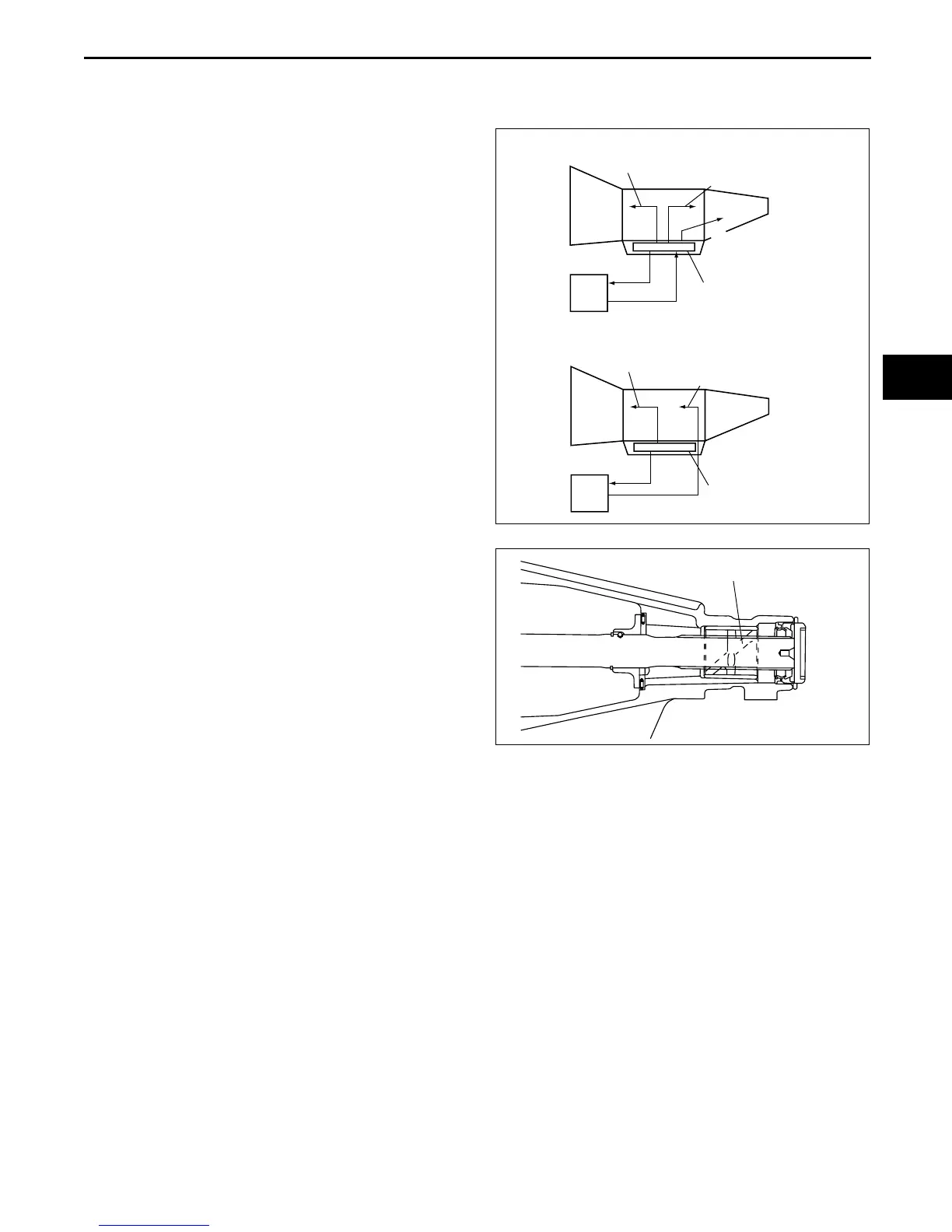

• In the conventional system, the rear section is lubricated by ATF returning from the ATF oil cooler. In the new
system, all parts are lubricated directly from the control valve.
• With this construction, the system is unaffected
by the ATF oil cooler, and thus a steady amount of
lubricant is supplied.
• A passage located in the rear of the extension
housing supplies a steady amount of lubricant
exclusively to the bushing.
End Of Sie
OIL
COOLER
OIL
COOLER
FRONT LUBRICATION
REAR LUBRICATION
FRONT LUBRICATION
REAR LUBRICATION
EXTENSION HOUSING
LUBRICATION
CONTROL VALVE BODY
CONVENTIONAL SYSTEM
CONTROL VALVE BODY
RC4A-EL TYPE
CHU0513S037
BUSHING LUBRICATION PASSAGE
CHU0513S044
