Additional LED Signals (M12/D12)
In addition to the factory defaults, you can set up the following signals for LEDs:
• PIR
The LED lights up for three seconds if the PIR sensor detects movements (the
Passive Infrared Detector event does
not have to be activated in the event
settings).
••
••
IR remote control
The LED lights up for three seconds if the camera receives an IR signal from a
remote control. The IR Remote Control event does
not have to be activated
in the camera software.
••
••
Left button
The LED lights up when L key has been pressed.
••
••
Right button
The LED lights up when R key has been pressed.
••
••
Signal Input
The LED lights up when the signal input is active (0 Volt at the input or con-
nection to ground). The Signal Input events do
not have to be activated in
the camera software.
••
••
Signal Output
The LED lights up when the signal output is active (output switches to
ground).
••
••
EE
EE
vent/Image Processing
An LED set to
Event lights up, flashes or blinks when the camera software
detects and processes one of the events selected in the event settings. The
behavior of the LED can also be influenced in Setup Menu > General Event
Settings (Event LED Setup parameters).
Change the Set all LEDs parameter to
Default and click on the Set button to reset
the LED configuration to the factory default settings.
Factory Default LED Signals (M22M)
As per factory default, the LEDs have been activated (LED Main Switch:
Enabled ,
Set all LEDs:
Differently ) and certain signals have been preset.

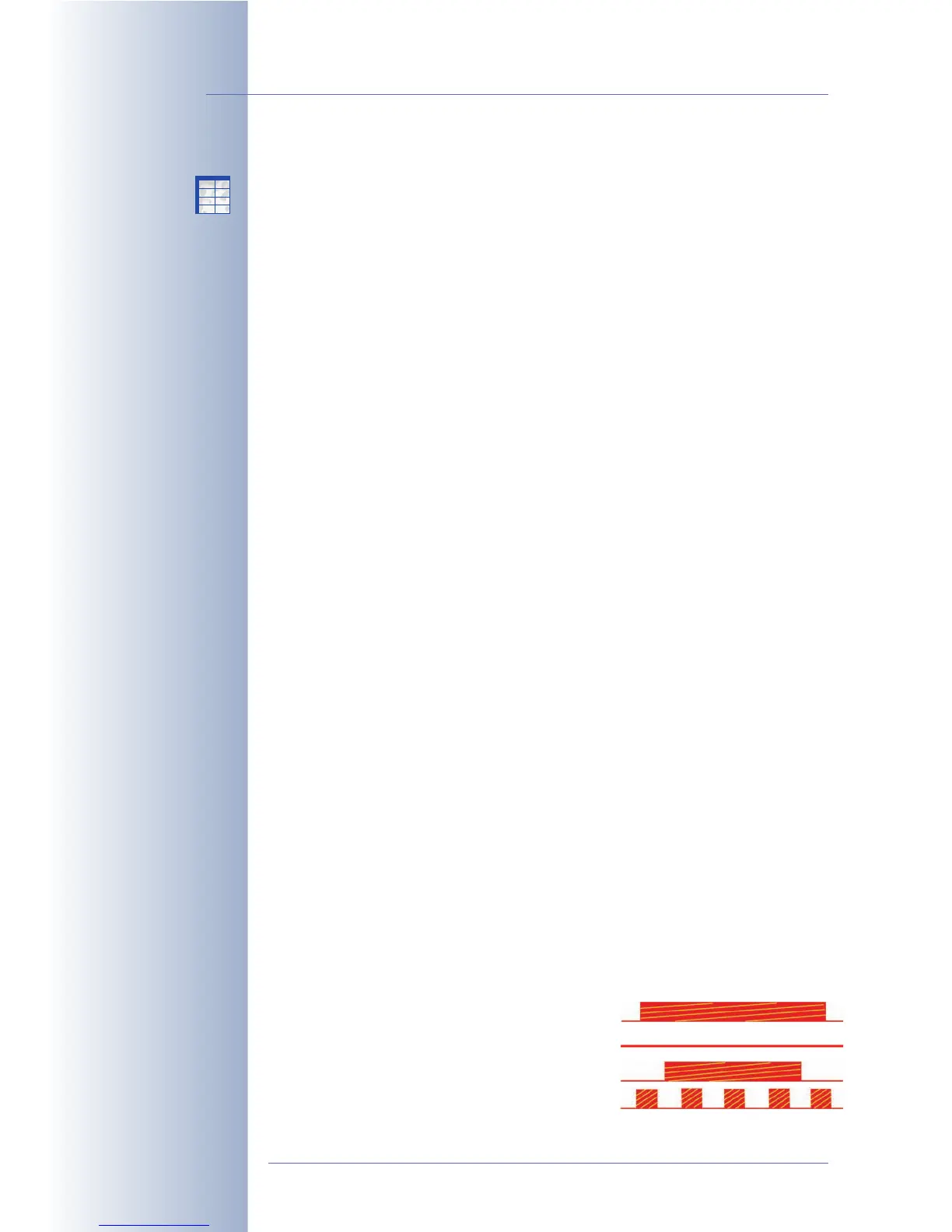

LED Signal Types (M22)
• On: LED is always on
• Off: LED is always off
• Slow blinking: LED is blinking slowly (1Hz)
• Fast blinking: LED is blinking fast (4Hz)
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com • 10.10.2006
98/288
Software Camera Manual Part 2
active=0V on input or loop
to GND closed
active=loop to ground is
closed
M22M LED Signals
X
X
-
-
-
-
X
X
