NANOTEC PD4-C - Pin Assignment; Overview; X1 − Analog Inputs and Outputs

3 Technical details and pin assignment
Note
For each error that occurs, a more precise error code is stored in object 1003
h
.
3.6 Pin assignment

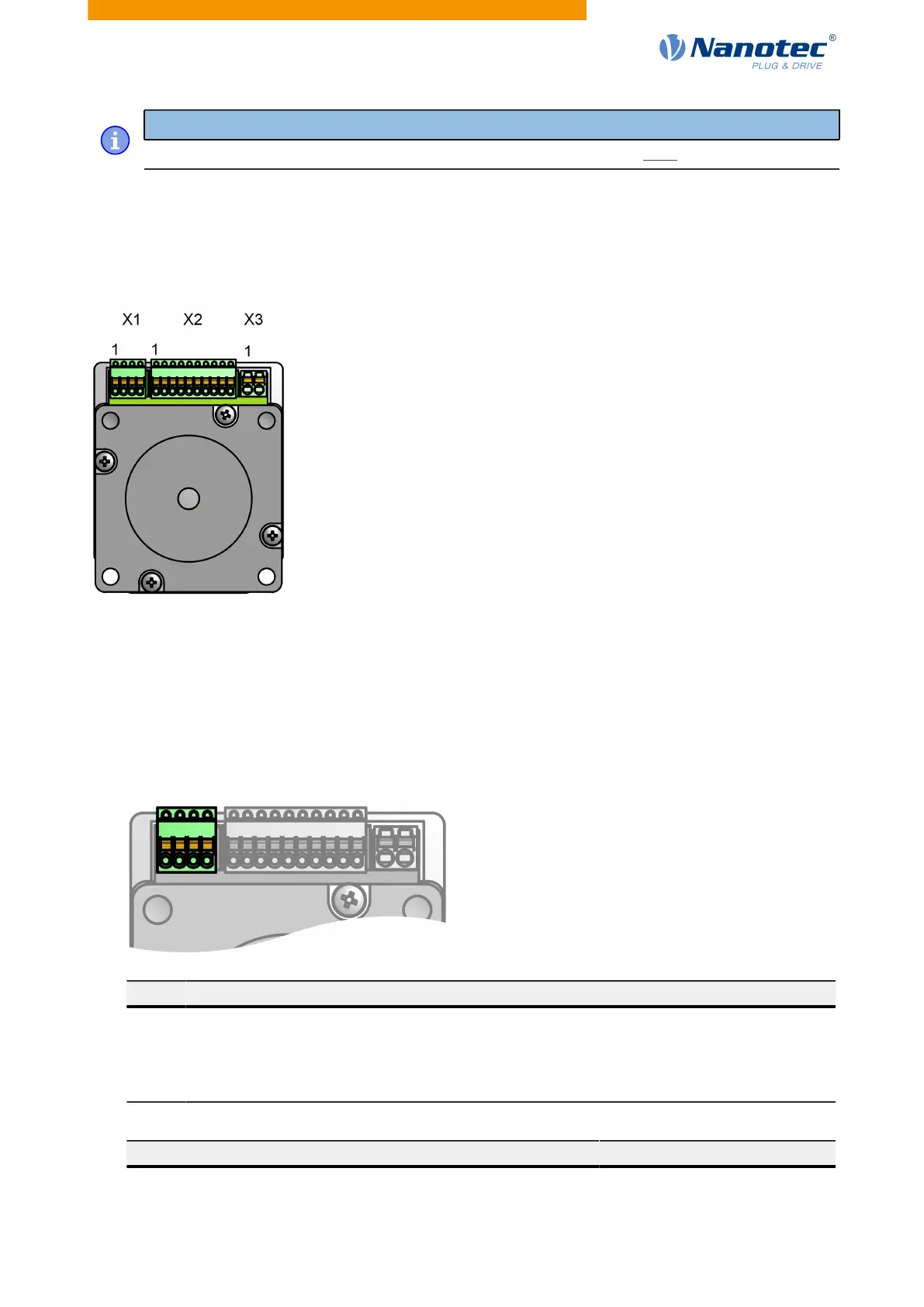

3.6.1 Overview
3.6.2 X1
−
analog inputs and outputs
Connections for analog speed mode
●
Type: Phoenix Contact MCV 0.5/ 4-G-2.5
●
Mating connector (included in scope of delivery): Phönix Contact FK-MCP 0.5/ 4-ST-2.5 (or equivalent)
X1 X2 X3
1
1
1
Pin Function Note
1 GND
2 Analog input 10 bit, 0-10 V
3 Digital output Open drain, max. 24 V/100 mA
4 Voltage output +12 V, max. 100 mA
Connection data min max
Conductor cross section, rigid, min. 0.14 mm
2
0.5 mm
2
Conductor cross section, flexible, min. 0.14 mm
2
0.5 mm
2
Version: 2.0.1 / FIR-v1650 18
