6 Operating modes
step width per pulse =
2057
h
2058
h
The "step size per pulse" value is set to 128 (2057
h
=128 and 2058
h
=1) ex works, which corresponds to a
quarter step per pulse. A full step is the value "512", a half step per pulse corresponds to "256", etc.
Note
For a stepper motor with 50 pole pairs, 200 full steps correspond to one mechanical revolution of
the motor shaft.
In clock-direction mode, the BLDC motors are also handled as stepper motors by the controller. This
means that for a BLDC motor with, e.g., 3 pole pairs, 12 (=4*3) full steps correspond to one revolution.
Note
If there is a change of direction, a time of at least 35 µs must elapse before the new clock signal is
applied.
6.10.4 Statusword
The following bits in object 6041
h
(statusword) have a special function:
●
Bit 13 (Following Error): This bit is set in closed loop mode if the following error is greater than the set
limits (6065
h
(Following Error Window) and 6066
h
(Following Error Time Out)).
6.10.5 Subtypes of the clock-direction mode
6.10.5.1 Clock-direction mode (TR mode)
To activate the mode, object 205B
h
must be set to the value "0" (factory settings).

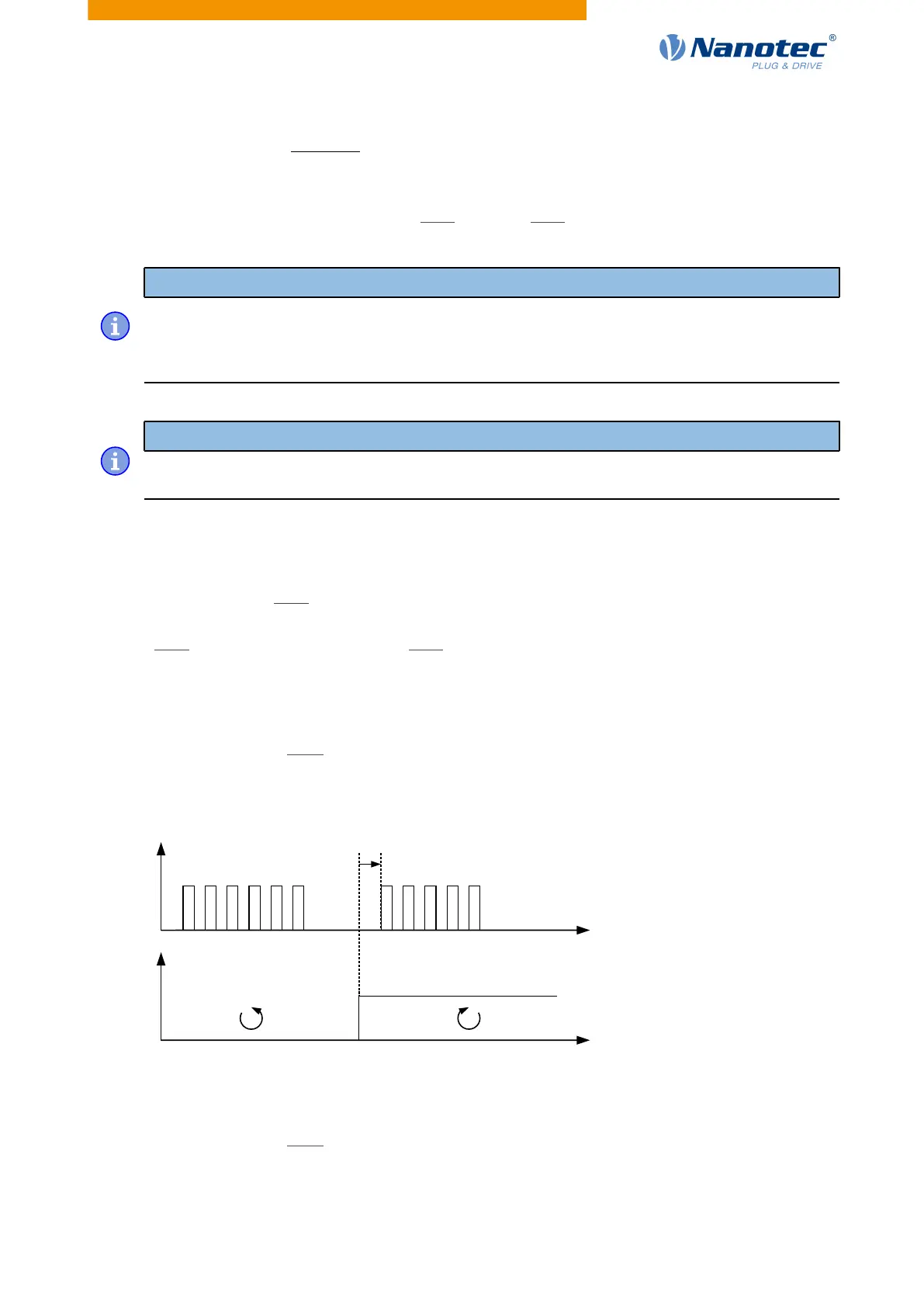

In this mode, the pulses must be preset via the clock input; the signal of the direction input specifies the
direction of rotation here (see following graphic).
clock
input
direction
input
min.
35µs
t
t
6.10.5.2 Right / left rotation mode (CW / CCW mode)
To activate the mode, object 205B
h
must be set to the value "1".
In this mode, the input that is used decides the direction of rotation (see following graphic).
Version: 2.0.1 / FIR-v1650 77
