Oce PlotWave 360 - Replace the Media; The Media Drawer

Replace the Media

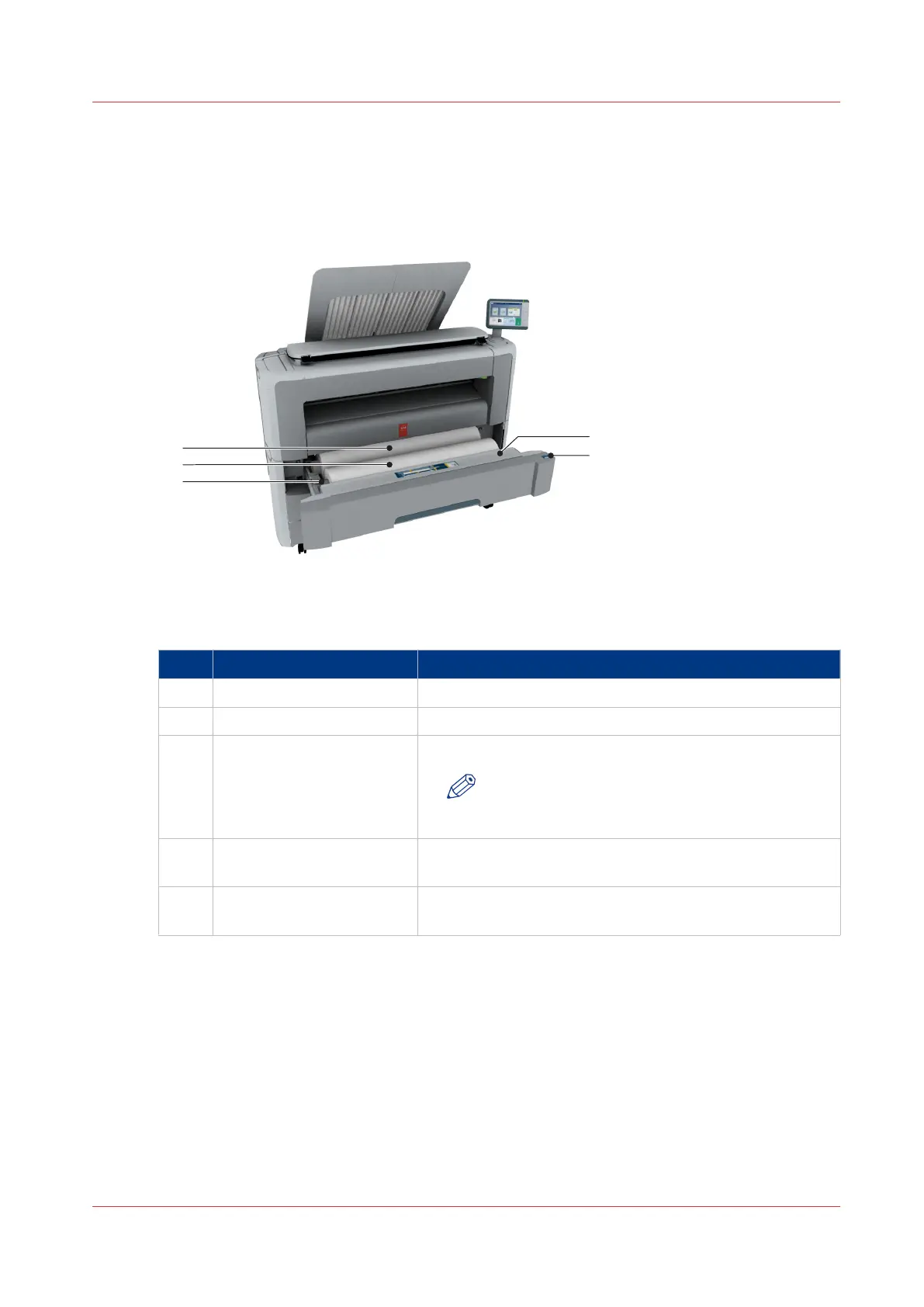

The [media drawer]
1
2
3
5
4
Component - function table
Nr Component Description / Function
1 [roll holder] Carries the media roll
2 [media roll 1] Media placed on roll holder in first position.
3 [media roll 2 (optional)] Media placed on roll holder in second position.
NOTE
The scanner calibration sheet is located at the
back of roll 2.
4 [roll loading station] Groove integrated behind the front cover of the media
drawer, on which the media can be easily loaded.
5 [clean cut button] Button used to trim a strip of a new or damaged media
roll.
