Parker 590+ series User Manual

4-22 Operating the Drive
DC590+ Series DC Digital Drive

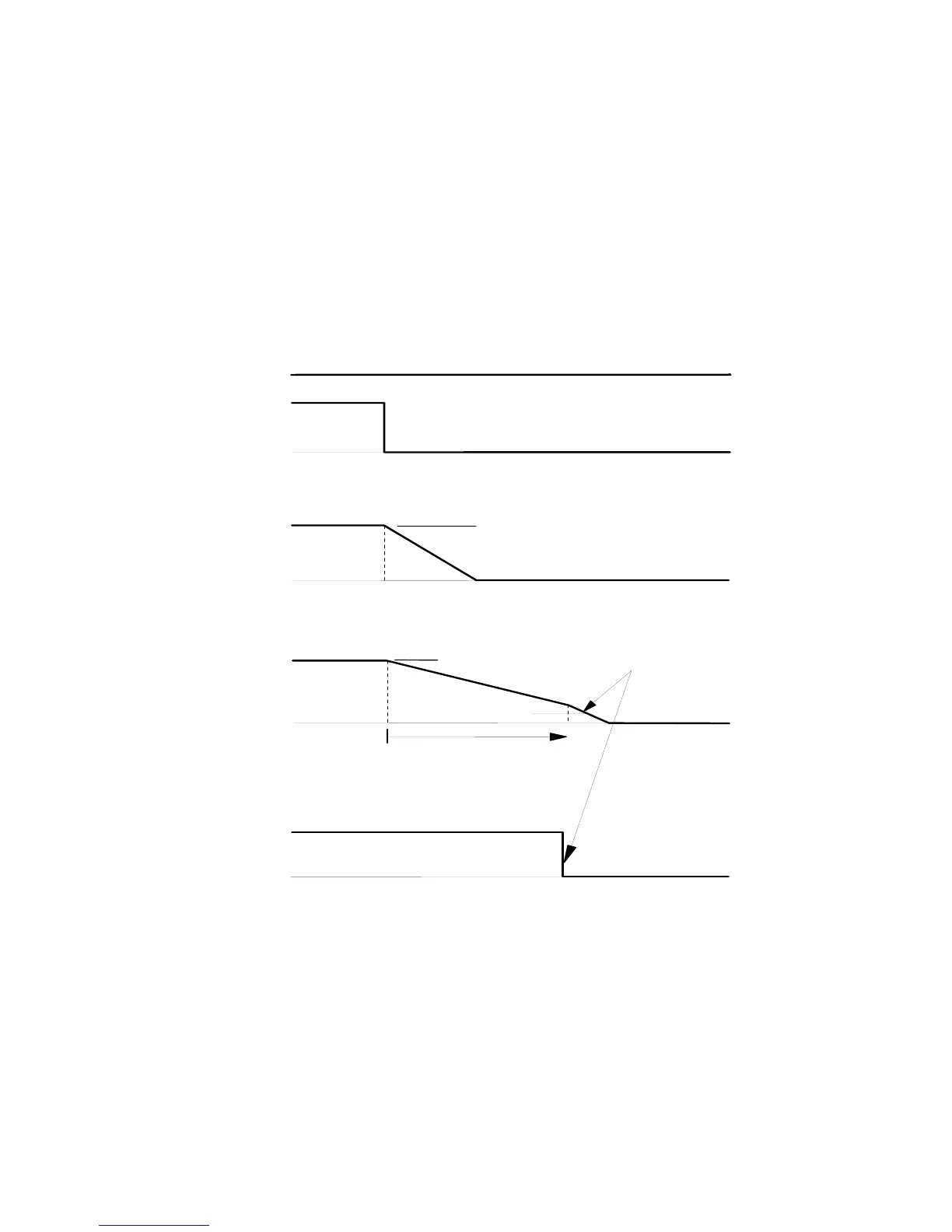

SPEED SETPOINT
TIME-OUT IN NORMAL STOP
0%
START/RUN (C3)
SPEED SETPOINT
SPEED DEMAND
0%
0%
SPEED FEEDBACK
STOP ZERO SPEED
(DEFAULT 2% )
= SPEED SETPOINT
CONTACTOR WILL DROP OUT
IF SPEED FEEDBACK > STOP ZERO SPEED
WHEN STOP LIMIT TIMED OUT
0%
DRIVE ENABLE =ENABLED
DRIVE RUN LED
AND START CONTACTOR
STOP LIMIT ( DEFAULT 60.0 SEC )
DRIVE ENABLE =DISABLED
DRIVE RUN LED & START CONTACTOR
t
t
t
t
Control Signals
Speed Demand
A
ctual Speed
Indicators

Parker 590+ series Specifications

General

Control Mode	Speed, Torque, Position
Operating Temperature	0°C to 40°C
Altitude	Up to 1000 m without derating
Speed Regulation	0.01% of base speed
Communication Options	Ethernet, Profibus, CANbus, Modbus, DeviceNet
Feedback Options	Tachometer, Encoder
Protection Rating	IP20
Storage Temperature	-25°C to 55°C
Relative Humidity	5% to 95% (non-condensing)
