Parker 590+ series User Manual

Installing the Drive 3-57
DC590+ Series DC Digital Drive
Speed Feedback Option Boards
Each option board below is shown with the correct selection for the SPEED FBK SELECT parameter.
The selections are ARM VOLTS FBK, ANALOG TACH, ENCODER and ENCODER/ANALOG.
(ARM VOLTS FBK is default and requires no option board).

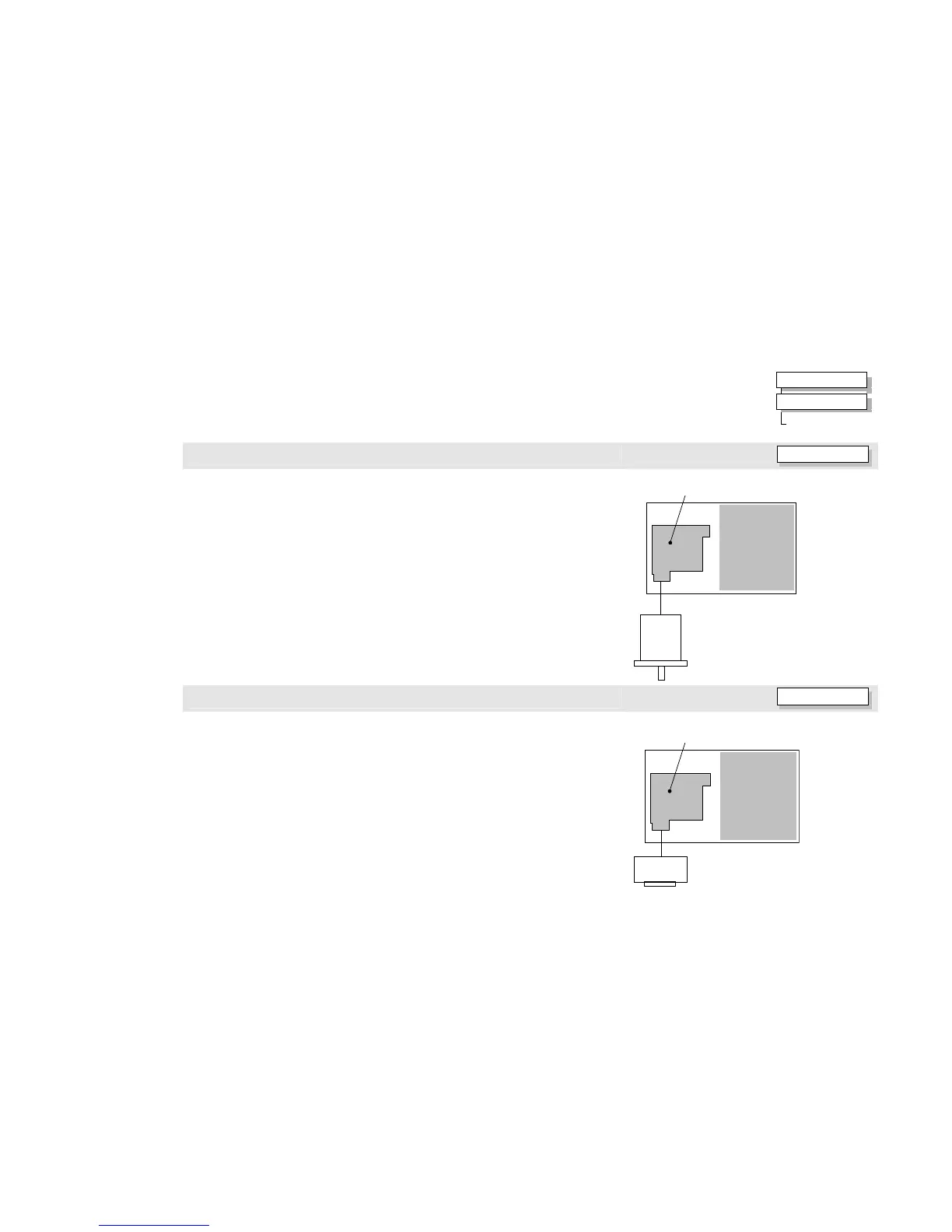

Microtach Option Board
ENCODER
There are two kinds of Parker SSD Drives’ Microtach, each requiring a different board:
5701 Microtach (plastic fibre)
5901 Microtach (glass fibre)
If fitted, refer to the Microtach Technical Manual for further information.
5701/5901 Microtach
5701/5901 MICROTACH
OPTION BOARD
COMMS
Option
Mounting
Wire-Ended Encoder Option Board
ENCODER
The board accepts connection from a wire-ended encoder.
If fitted, refer to the Encoder Technical Manual for further information.
Wire-ended Encoder
ENCODER
OPTION BOARD
COMMS
Option
Mounting
MMI Menu Ma
p
1
SETUP PARAMETERS
2
SPEED LOOP
SPEED FBK SELECT

Parker 590+ series Specifications

General

Control Mode	Speed, Torque, Position
Operating Temperature	0°C to 40°C
Altitude	Up to 1000 m without derating
Speed Regulation	0.01% of base speed
Communication Options	Ethernet, Profibus, CANbus, Modbus, DeviceNet
Feedback Options	Tachometer, Encoder
Protection Rating	IP20
Storage Temperature	-25°C to 55°C
Relative Humidity	5% to 95% (non-condensing)
