Parker 590+ series User Manual

Programming D-99
DC590+ Series DC Digital Drive
PROFILED GAIN

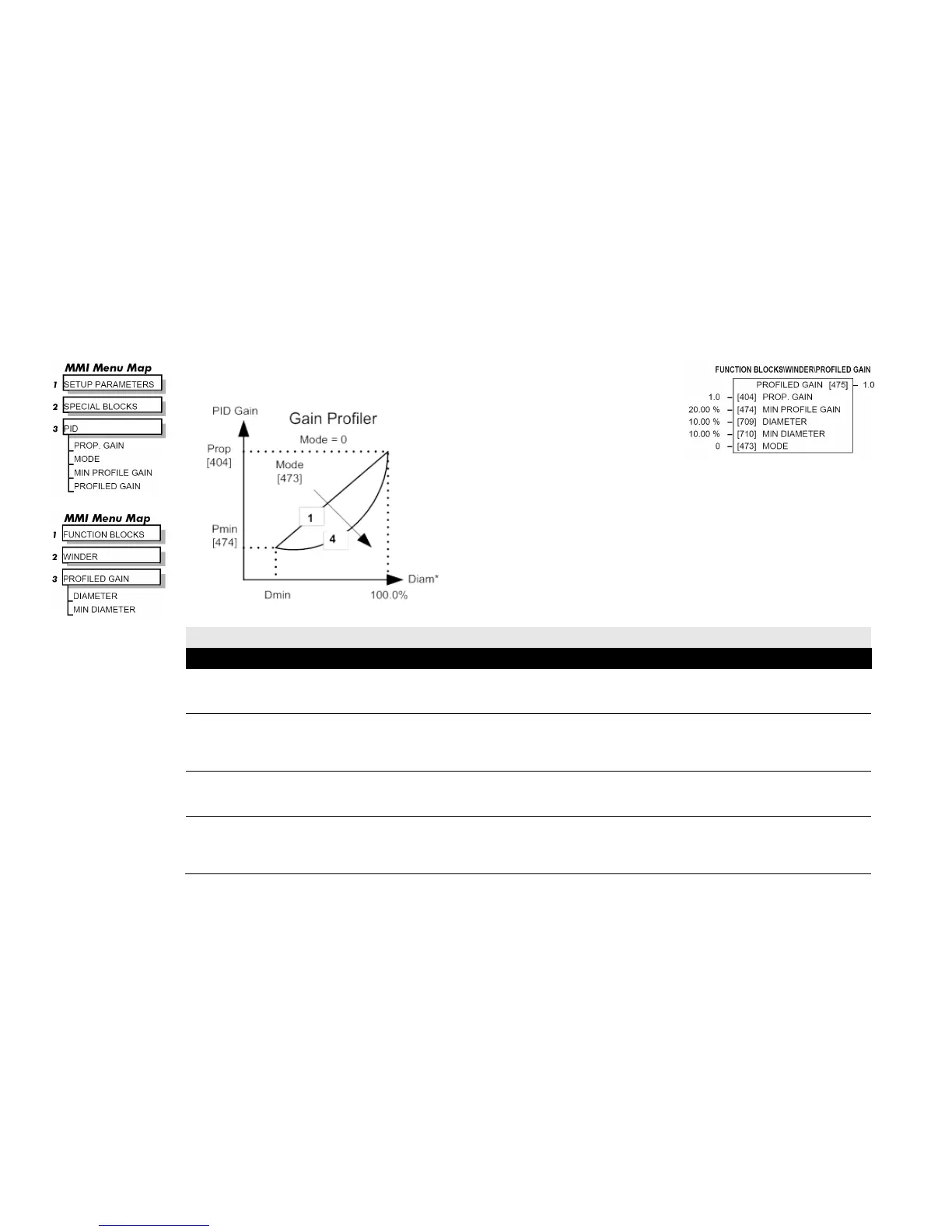

This function block may be used to profile the proportional gain input to the PID block.
PROFILED GAIN
Parameter
Tag
Range
PROP. GAIN 404 0.0 to 100.0
The nominal gain prior to profiling.
MIN PROFILE GAIN 474 0.00 to 100.00 %
This expresses the minimum gain required at minimum diameter (core) as a percentage of the (maximum) P gain at full diameter (100%), when
MODE > 0.
DIAMETER 709 0.00 to 100.00 %
The actual measured diameter. If appropriate, this may be connected to the DIAMETER output parameter in the DIAMETER CALC function block.
MIN DIAMETER 710 0.00 to 100.00 %
Set to the minimum core diameter (normally the empty core diameter) as a percentage of the maximum roll diameter. If appropriate, this may be
connected to the MIN DIAMETER parameter in the DIAMETER CALC function block.

Parker 590+ series Specifications

General

Control Mode	Speed, Torque, Position
Operating Temperature	0°C to 40°C
Altitude	Up to 1000 m without derating
Speed Regulation	0.01% of base speed
Communication Options	Ethernet, Profibus, CANbus, Modbus, DeviceNet
Feedback Options	Tachometer, Encoder
Protection Rating	IP20
Storage Temperature	-25°C to 55°C
Relative Humidity	5% to 95% (non-condensing)
