Parker 590+ series User Manual

D-114 Programming
DC590+ Series DC Digital Drive

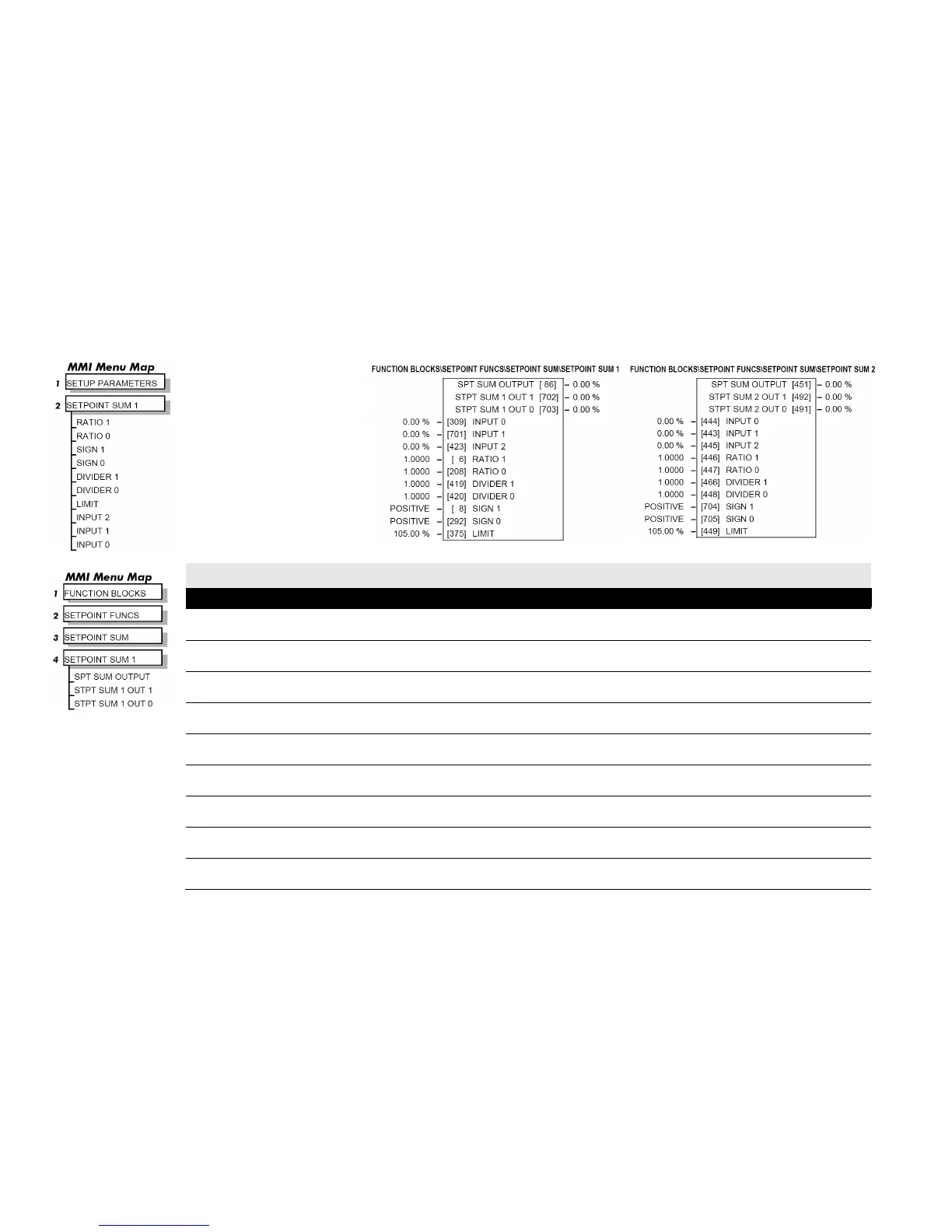

SETPOINT SUM
Use this menu to sum and scale up
to three analog inputs to produce
the SPT. SUM output.
INPUT 0 and INPUT 1 have
individual ratio and divider scalers,
and signs. The inputs have
symmetrical limits set by LIMIT.
INPUT 2 has no scaling or limits.
The output, after INPUT 0, INPUT 1
and INPUT 2 are summed, is also
clamped by LIMIT before producing
the SPT. SUM output.
SETPOINT SUM
Parameter
Tag
Range
INPUT 0 309 -300.00 to 300.00 %
Input 0 value.
INPUT 1 701 -300.00 to 300.00 %
Input 1 value.
INPUT 2 423 -300.00 to 300.00 %
Input 2 value.
RATIO 1 6 -3.0000 to 3.0000
Multiplier term for INPUT 1.
RATIO 0
208
-3.0000 to 3.0000
Multiplier term for INPUT 0.
DIVIDER 1 419 -3.0000 to 3.0000
Divider scaling for INPUT 1. Dividing by 0 (zero) results in a zero output.
DIVIDER 0
420
-3.0000 to 3.0000
Divider scaling for INPUT 0. Dividing by 0 (zero) results in a zero output.
SIGN 1 8 NEGATIVE / POSITIVE
Polarity for INPUT 1.
SIGN 0 292 NEGATIVE / POSITIVE
Polarity for INPUT 0.
