Theme.........................................................................................................................125

Print Colors................................................................................................................. 125

Showing Print Colors on Display.................................................................................126

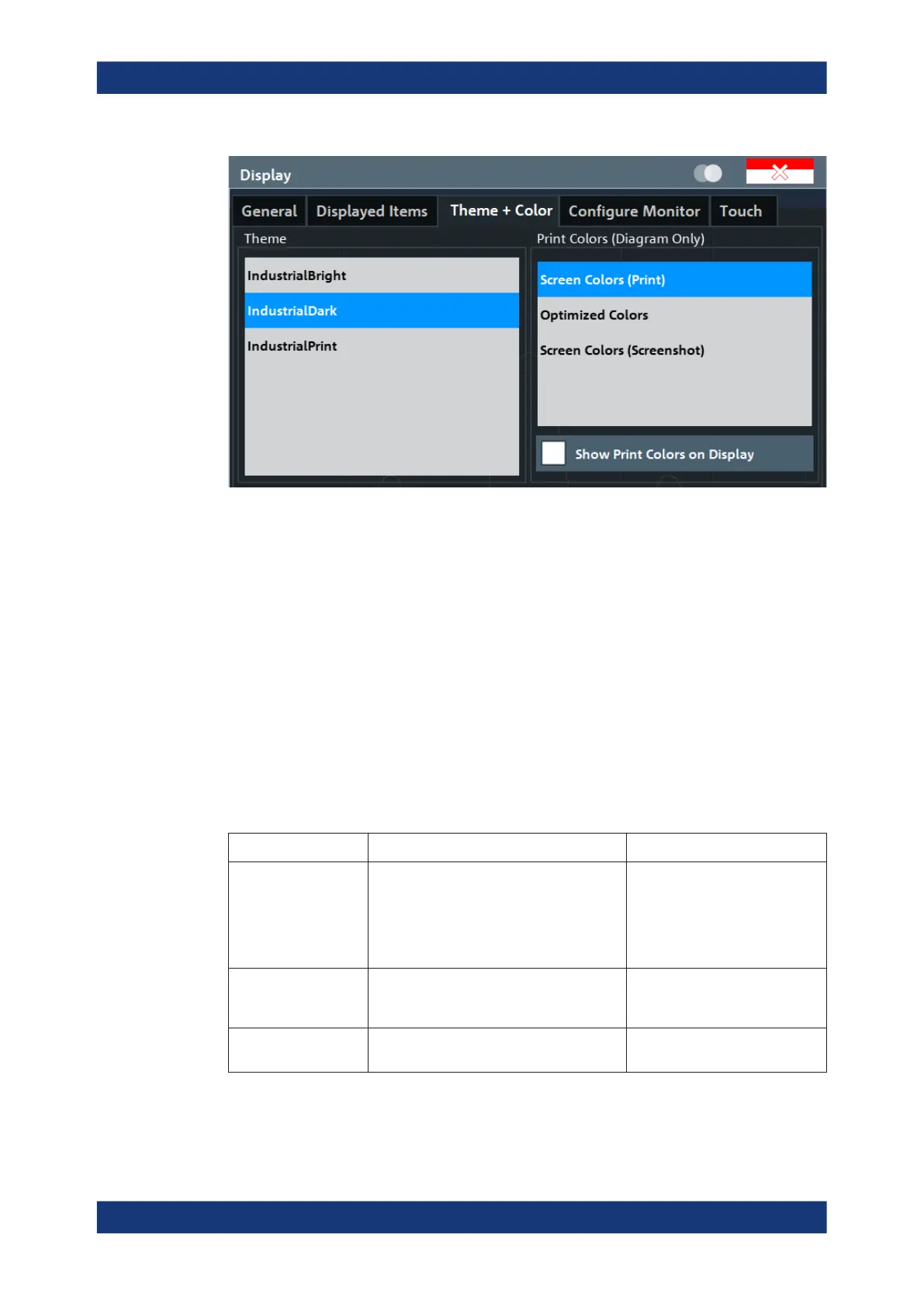

Theme

The theme defines the colors and style used to display softkeys and other screen

objects.

The default theme is "IndustrialDark".

Remote command:

DISPlay:THEMe:SELect on page 612

Print Colors

Defines the color settings used for printout.

If "Show Print Colors on Display" is activated, the currently selected print colors are

displayed as a preview for your selection.

Gui setting Description Remote command

"Optimized Colors" Selects an optimized color setting for the

printout to improve the visibility of the colors

(default setting). Trace 1 is blue, trace 2

black, trace 3 green, and the markers are

turquoise. The background is always printed

in white and the grid in black.

HCOP:CMAP:DEF2

"Screen Colors (Print)" Selects the current screen colors for the

printout. The background is always printed in

white and the grid in black.

HCOP:CMAP:DEF1

"Screen Colors

(Screenshot)"

Selects the current screen colors without any

changes for a screenshot.

HCOP:CMAP:DEF4

Remote command:

HCOPy:CMAP<it>:DEFault<ci> on page 591
