R&S ZNL Series User Manual

VNA GUI reference
R&S
®
ZNL/ZNLE
424User Manual 1178.5966.02 ─ 20
Show Title
Displays or hides the title area of the active diagram.
This property can only be set if Title is non-empty. If "Title" is empty, the title area is
always hidden
Remote command:
DISPlay[:WINDow<Wnd>]:TITLe[:STATe]

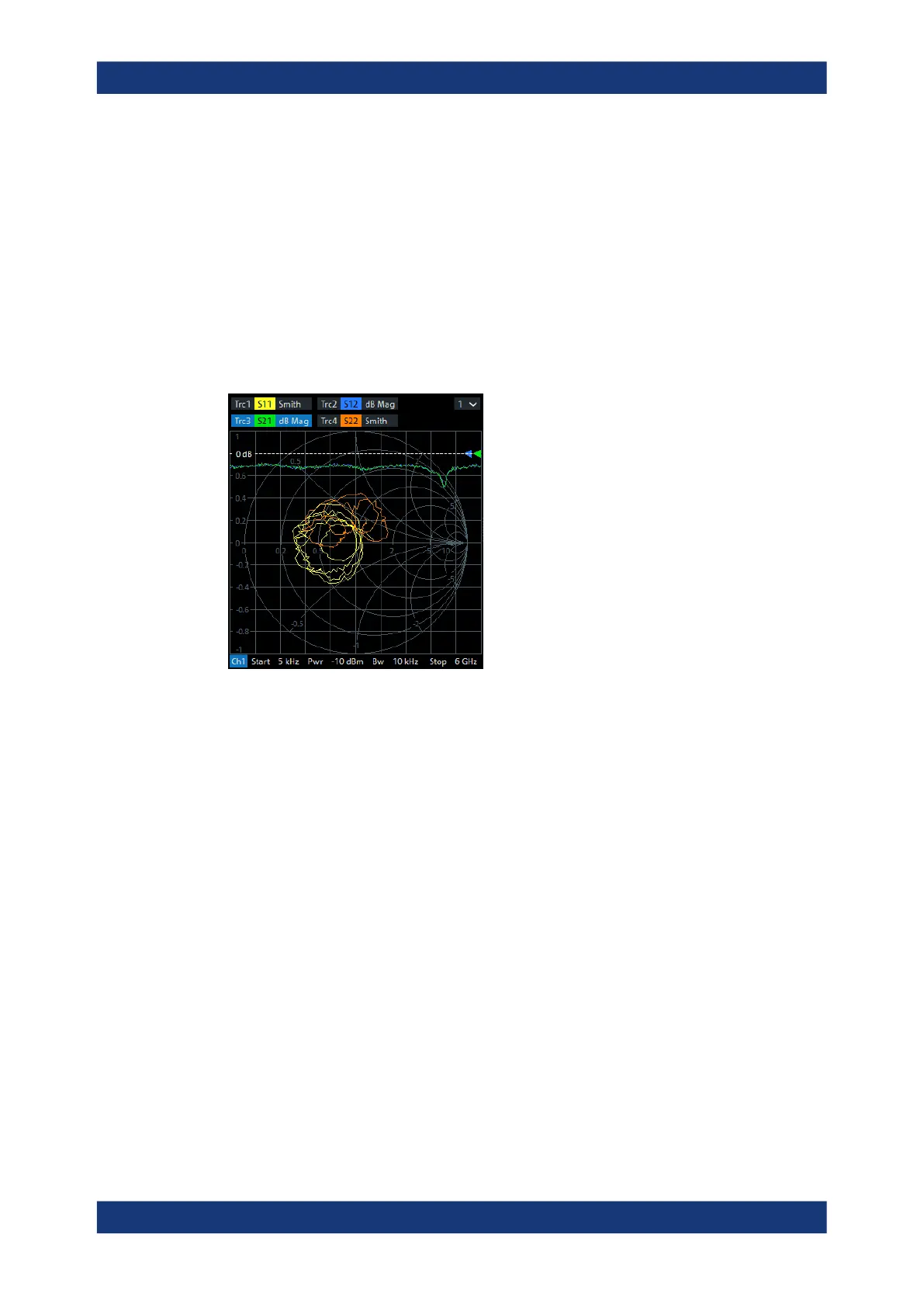

Overlay All
Places all traces in a single diagram area which is maximized to occupy the whole
screen. This function is available irrespective of the trace format and the channel set-
tings; it is even possible to overlay Cartesian and complex diagrams.
The active trace and active channel is highlighted. The scaling of the axes corresponds
to the active trace.
Tip: To hide all traces except one, activate the context menu of the respective trace
name segment in the trace list and select "Hide all other Traces".
Remote command:
DISPlay:LAYout:OVERlay
Split All
Creates a separate diagram for each trace in the active channel setup and automati-
cally arranges those diagrams in the diagram area. Existing diagrams are deleted dur-
ing this process.
Display Lines softtool
