VNA GUI reference

R&S

ZNL/ZNLE

440User Manual 1178.5966.02 ─ 20

Ripple limits can be defined for cartesian trace formats only and are limited to the trace

format they were configured for. If another format is selected, the ripple limit lines are

hidden and the limit check is temporarily disabled.

Background information

Refer to Chapter 9.4.1, "Limit check", on page 230.

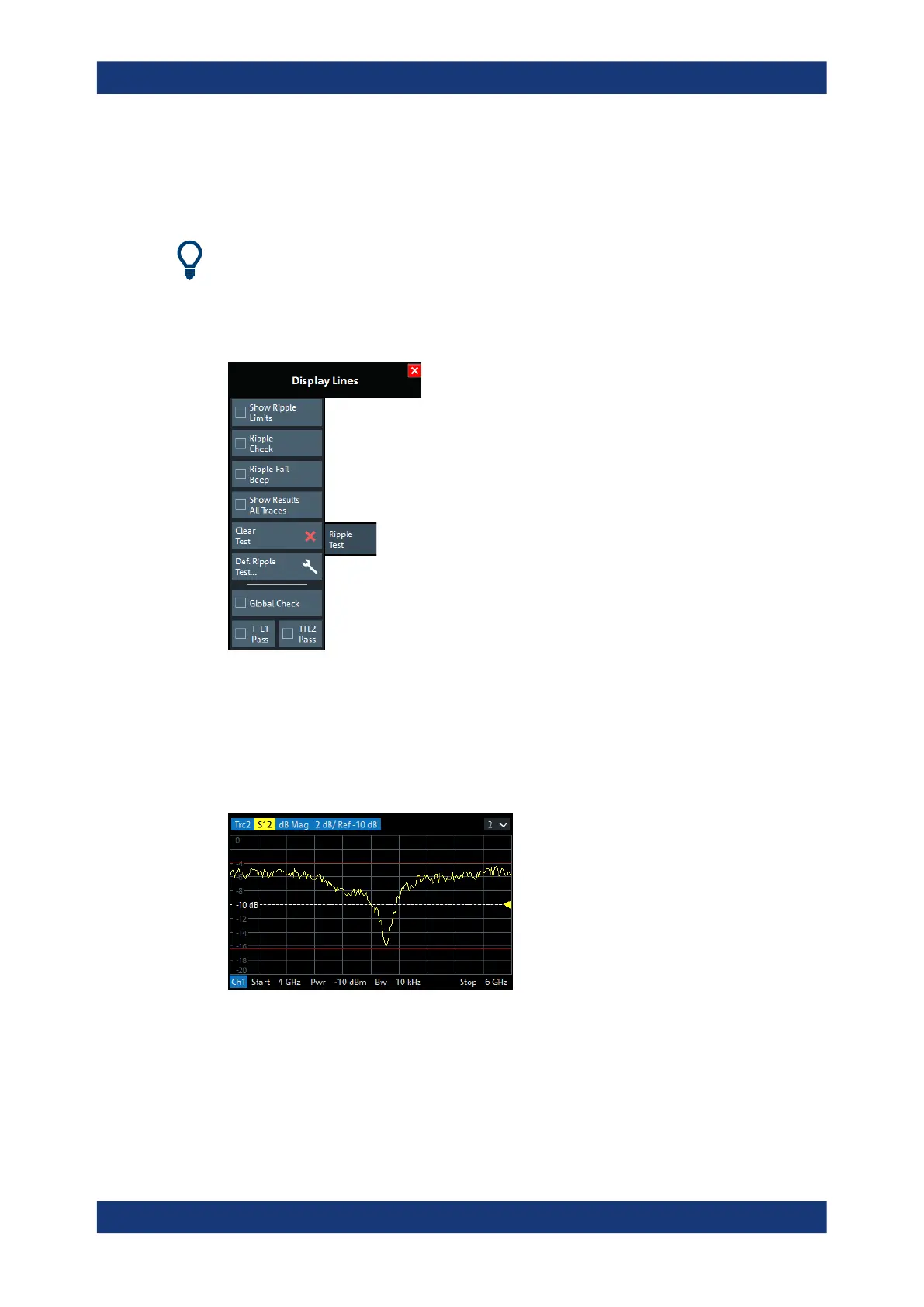

10.9.5.1 Controls on the Ripple Test tab

The "Def. Ripple Test..." button opens the "Define Ripple Test" dialog (see Chap-

ter 10.9.5.2, "Define Ripple Test dialog", on page 442).

Show Ripple Limits

Shows or hides the ripple limit lines associated with the active trace in a Cartesian dia-

gram area. The vertical positions of the ripple lines are recalculated after each sweep;

only their stimulus range and distance (the ripple limit) are fixed.

Note: Limit line display and limit check are independent of each other: Hiding the limit

line does not switch off the limit check.

Remote command:

CALCulate<Chn>:RIPPle:DISPlay[:STATe]

Display Lines softtool
