Ripple Check

Switches the ripple limit check of the active trace on or off. When the limit check is

switched on, a movable info field shows the pass/fail information and the measured rip-

ple in each ripple limit range.

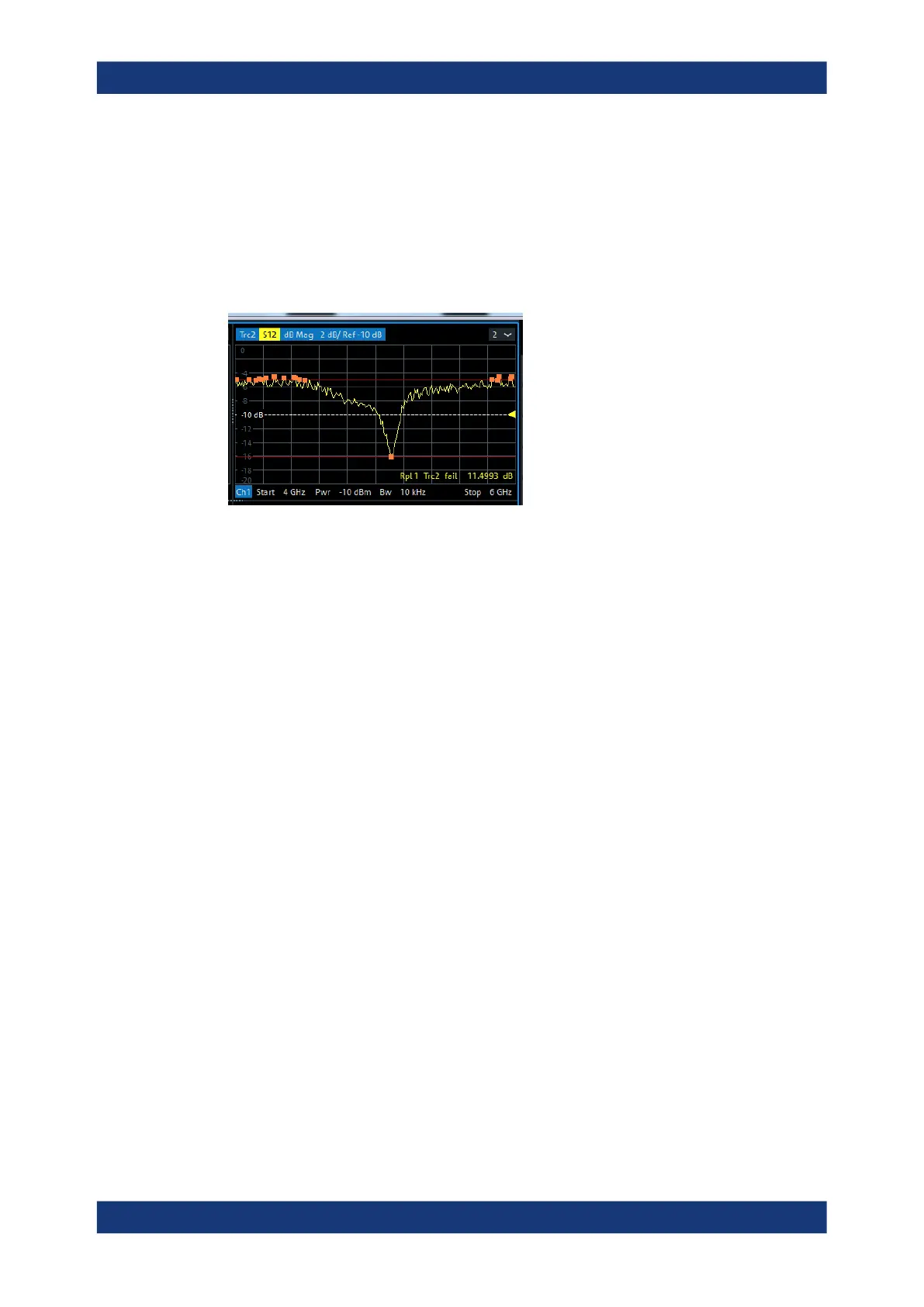

Limit violations are marked with colored squares.

An acoustic signal and a TTL signal indicating pass or fail can be generated in addi-

tion.

Note:

●

Ripple check and display of limit lines are independent of each other:

– The ripple limits can be displayed, no matter if the ripple check is enabled.

– If "Ripple Check" is enabled, the ripple limits are checked, no matter if they are

displayed.

– The ripple check can even be enabled, if no limit lines are defined. In this case,

the info field displays "No ripple defined!" and the limit check always passes.

●

For each trace, ripple limits can only be set for a single cartesian trace format. If

another trace format is selected, the ripple limit lines are hidden and the ripple

check is suspended.

Remote command:

CALCulate<Chn>:RIPPle:STATe

CALCulate<Chn>:RIPPle:FAIL?

CALCulate:RIPPle:FAIL:ALL?

CALCulate<Chn>:RIPPle:SEGMent<Seg>:RESult?

CALCulate<Chn>:RIPPle:STATe:AREA

Ripple Fail Beep

Activates or deactivates the fail beep. The fail beep is a low-tone acoustic signal that is

generated each time the analyzer detects an exceeded ripple limit. No fail beep can be

generated if the ripple limit check is switched off.

Note: The R&S ZNL/ZNLE does not have a built-in audio device and loudspeaker. To

hear sounds, connect a USB audio device to the instrument or operate it via remote

desktop.

Remote command:

CALCulate<Chn>:RIPPle:SOUNd[:STATe]
